Partiron

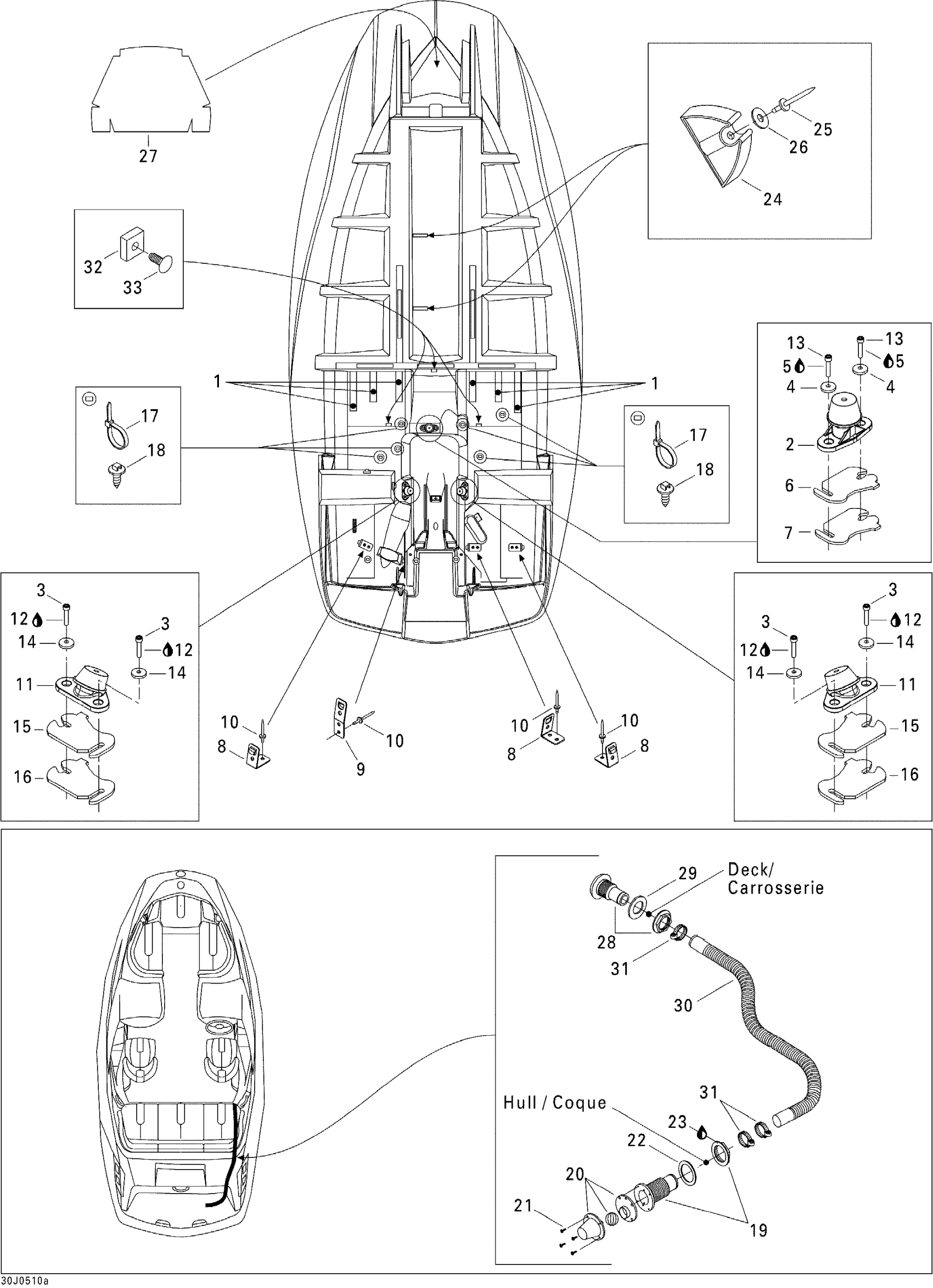

Sea-doo Challenger 180 4-TEC SCIC, 2005 Lower Hull Diagram

#

Description
Price

1

NEOPRENE, METER - Call your local BRP dealership

202000024

Unavailable

2

Engine Support Ass'y

270001096

$88.78

3

SOCKET HEAD SCREW M8 X 40 - Call your local BRP dealership

205084060

Unavailable

4

Cone Washer

250200018

$5.33

5

Loctite 243, 10 ml

293800060

$21.49

6

SHIM 0.3 MM - Call your local BRP dealership

270000445

Unavailable

7

Shim 1.3 mm

270000762

$10.37

8

Strap Clip 90°

204060017

Unavailable

9

Strap Clip

293850030

$10.30

10

Pop Rivet 3/16"

293150088

$0.91

11

Engine Support Ass'y

270001081

$96.99

12

Loctite 243, 10 ml

293800060

$21.49

13

Socket Head Screw M8 X 45

205084560

$3.22

14

Cone Washer

250200018

$5.33

15

SHIM 0.3 MM - Call your local BRP dealership

270000445

Unavailable

16

Shim 1.3 mm

270000762

$10.37

17

Tie-Rap 180 mm

414115200

$0.10

18

Mount Dart

293730040

$0.99

19

THRU HULL FITTING - Call your local BRP dealership

204060071

Unavailable

20

SCUPPER VALVE - Call your local BRP dealership

204060188

Unavailable

21

PHILLIPS SCREW #8 X 1/2, PLASTITE - Call your local BRP dealership | Not Shown

211000180

Unavailable

22

GASKET - Call your local BRP dealership

292800106

Unavailable

23

Silicone Sealant 51388, 300 ml

296000309

$36.99

24

Pole Support

291000642

Unavailable

25

RIVET - Call your local BRP dealership

293150065

Unavailable

26

Flat Washer M5, Stainless

234051600

$0.73

27

Carpet

204060983

Unavailable

28

FITTING - Call your local BRP dealership

293710060

Unavailable

29

GASKET - Call your local BRP dealership

292800106

Unavailable

30

HOSE BILGEFLEX 1-1/2?, METER - Call your local BRP dealership

204070560

Unavailable

31

Norma Clamp

293650074

$15.64

32

RUBBER PAD - Call your local BRP dealership

204060684

Unavailable

33

Staple

293730005

Unavailable
