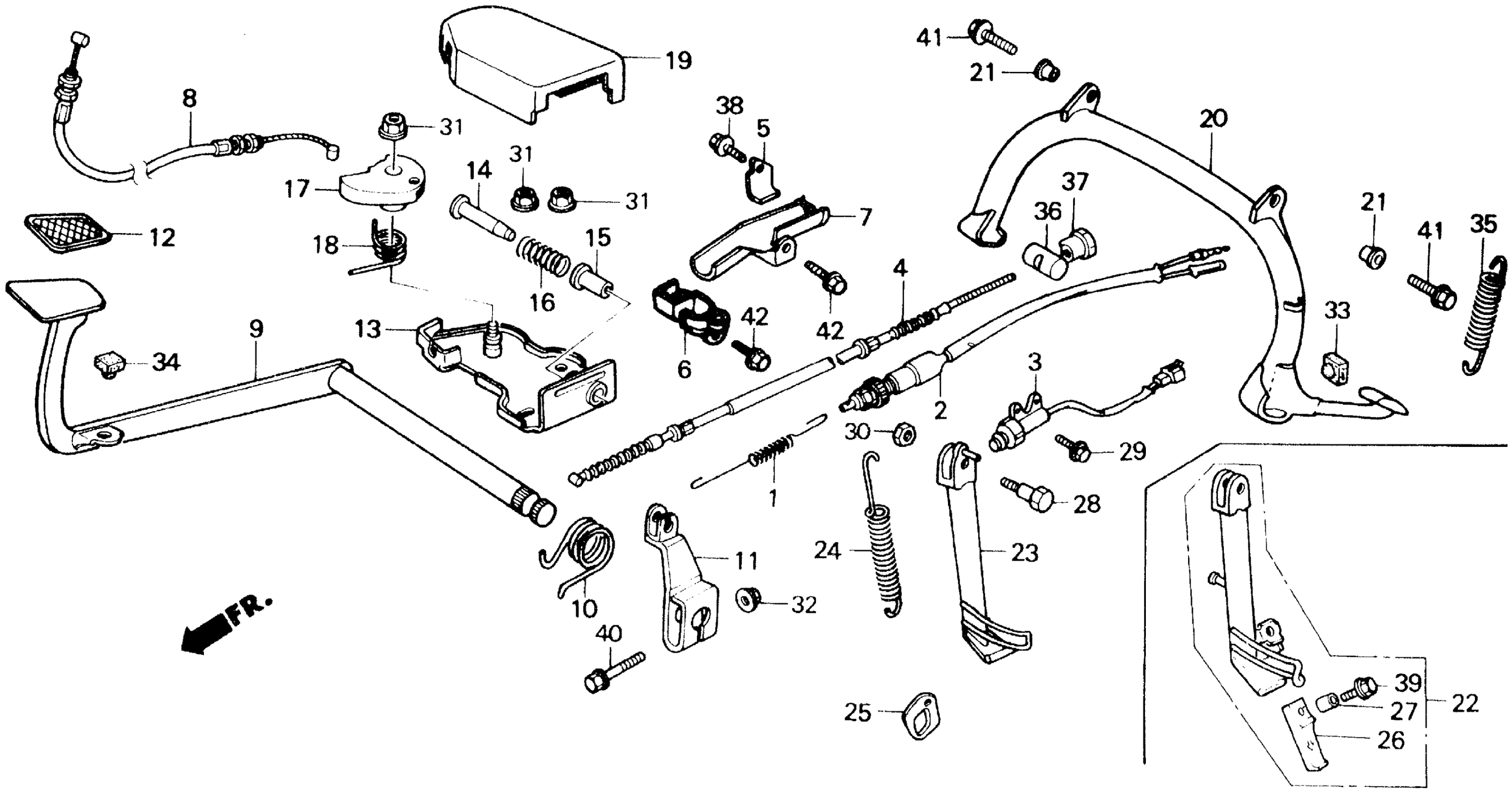

Honda CH250A (85) ELITE 250, JPN, VIN# JH2MF010-FK000001 TO JH2MF010-FK013566 STAND Diagram

#

Description
Price

1

SPRING, STOP SWITCH This part replaces 35357-MF8-770.

35357-MF8-000

$5.32

2

SWITCH ASSY., STARTER STOP

35370-KM1-000

Unavailable

4

CABLE, RR. BRAKE

43450-KM1-000

Unavailable

5

STOPPER, BRAKE CABLE

43451-KM1-000

Unavailable

6

CLAMP B, RR. BRAKE CABLE | Use up to Frame SN FK003711 This part replaces 43453-KM1-000.

43453-KM1-010

Unavailable

6

CLAMP B, RR. BRAKE CABLE

43453-KM1-010

Unavailable

7

CLAMP A, RR. BRAKE CABLE (NOT AVAILABLE) | Use up to Frame SN FK003711 This part replaces 43454-KM1-000.

43454-KM1-010

Unavailable

7

CLAMP A, RR. BRAKE CABLE (NOT AVAILABLE) | Use from Frame SN FK003712

43454-KM1-010

Unavailable

8

CABLE, BRAKE LOCK (NOT AVAILABLE)

43460-KM1-000

Unavailable

9

PEDAL, BRAKE ARM

46500-KM1-000

Unavailable

10

SPRING, BRAKE PEDAL

46514-KM1-000

Unavailable

11

ARM, MIDDLE

46515-KM1-000

Unavailable

12

COVER, PEDAL

46545-SA5-000

$10.71

13

PLATE, BRAKE LOCK BASE

46611-KM1-000

Unavailable

14

PIN, BRAKE LOCK

46612-KM1-000

Unavailable

15

BEARING, LOCK PIN

46613-KM1-300

Unavailable

16

SPRING, LOCK PIN RETURN

46614-KM1-000

Unavailable

17

CAM, LOCK PIN PUSH

46615-KM1-000

Unavailable

18

SPRING, PIN PUSH CAM RETURN

46616-KM1-000

Unavailable

19

COVER, BRAKE LOCK

46617-KM1-000

Unavailable

20

STAND, MAIN

50500-KM1-000

Unavailable

21

COLLAR, MAIN STAND (NOT AVAILABLE)

50504-KM1-000

Unavailable

22

BAR ASSY., SIDE STAND

50510-KM1-000

Unavailable

24

SPRING, SIDE STAND

50532-KM1-000

Unavailable

25

PLATE, SIDE SPRING SETTING

50533-KM1-000

Unavailable

26

RUBBER, STAND

50548-324-760

$11.97

27

COLLAR, STAND RUBBER SETTING

50549-356-700

$2.62

28

BOLT, SIDE STAND PIVOT

90108-223-000

$5.10

30

NUT, HEX. (10MM)

94031-10000

$0.86

31

NUT, FLANGE (6MM)

94050-06080

$0.63

32

NUT, FLANGE (8MM)

94050-08080

$0.91

33

RUBBER A, STAND STOPPER

95011-61000

$1.20

34

RUBBER B, STAND STOPPER

95011-62000

$1.29

35

SPRING E, MAIN STAND

95014-71502

Unavailable

36

JOINT B, BRAKE ARM

95015-32001

$0.91

37

NUT B, BRAKE ROD ADJUSTING

95015-42000

$1.86

38

BOLT, FLANGE (6X16) This part replaces 95700-06016-00.

95701-06016-00

$1.57

38

BOLT, FLANGE (6X16)

95701-06016-00

$1.57

39

BOLT, FLANGE (6X25) This part replaces 95800-06025-07.

95801-06025-07

$1.88

39

BOLT, FLANGE (6X25)

95801-06025-07

$1.88

40

BOLT, FLANGE (8X45) This part replaces 95800-08045-08.

95801-08045-08

$1.35

40

BOLT, FLANGE (8X45)

95801-08045-08

$1.35

41

BOLT, FLANGE (10X25)

95701-10025-08

$2.15

41

BOLT, FLANGE (10X25) This part replaces 95800-10025-08.

95701-10025-08

$2.15

41

BOLT, FLANGE (10X25) This part replaces 95800-10025-18.

95701-10025-08

$2.15

41

BOLT, FLANGE (10X25) This part replaces 95801-10025-08.

95701-10025-08

$2.15

42

BOLT, FLANGE (6X10) This part replaces 96000-06010-00.

96001-06010-00

$1.68

42

BOLT, FLANGE (6X10)

96001-06010-00

$1.68
