1990 Yamaha Inviter (CF300P) Track Suspension 2 Diagram

← All diagrams

Find the part on the Track Suspension 2 diagram for your 1990 Yamaha Inviter (CF300P), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

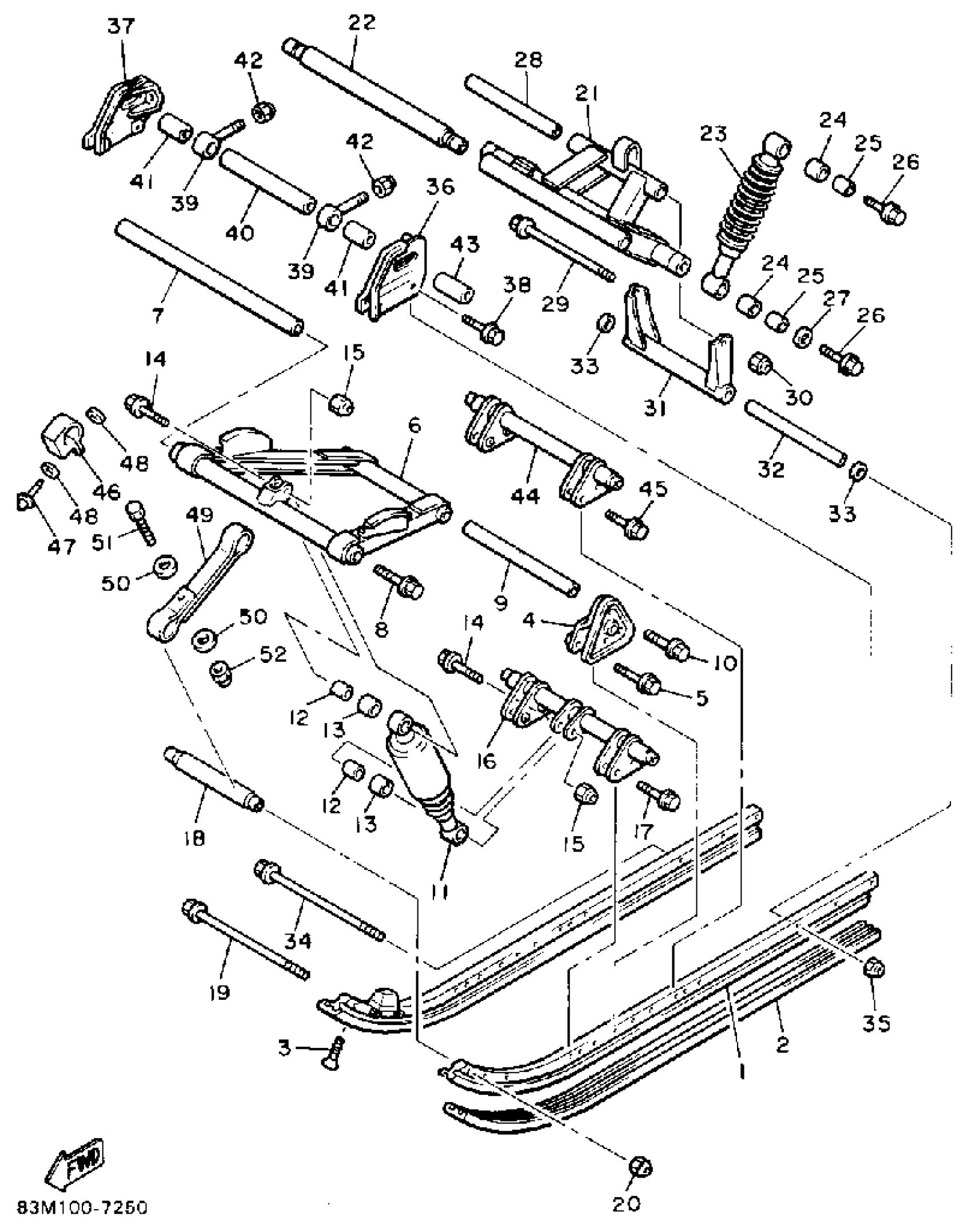

1990 Yamaha Inviter (CF300P) Track Suspension 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME, SLIDING 1

83M-47411-00-00

1
Out of stock

2

RUNNER, SLIDING 1 (81E-47421-00)

81E-47421-00-XX

1
Out of stock

3

SCREW, CROSSRECESS (8G6)

90151-06005-00

1
Out of stock

4

BRACKET 2

81E-47416-00-00

1
Out of stock

5

BOLT, FLANGE

95817-06035-00

1

$5.37

In stock

6

ARM, PIVOT 1

83M-47331-00-00

1
Out of stock

7

SHAFT, 1

81E-47465-01-00

1
Out of stock

8

BOLT (8V0)

90109-10771-00

1

$5.00

In stock

9

SHAFT 3

8A5-47485-02-00

1
Out of stock

10

BOLT, FLANGE

95817-10030-00

1

$6.17

In stock

11

SHOCK ABSORBER 2

83M-47481-00-00

1
Out of stock

12

COLLAR (8U7)

90387-105G5-00

1

$7.35

In stock

13

BUSH, SPECL NYLON

90386-14145-00

1
Out of stock

14

BOLT, FLANGE(4GB)

95817-10045-00

1

$4.52

In stock

15

NUT, U

95617-10100-00

1
Out of stock

16

BAR SUSPENSION

83M-47451-01-00

1
Out of stock

17

BOLT, FLANGE

95817-06035-00

1

$5.37

In stock

18

BRACKET 1

83M-47415-00-00

1
Out of stock

19

BOLT,FLANGE

95827-08260-00

1
Out of stock

20

NUT, SELF-LOCKING

90185-08169-00

—

$7.09

In stock

21

ARM, PIVOT 2

81E-47332-00-00

1
Out of stock

22

SHAFT 2

8K2-47475-00-00

1
Out of stock

23

SHOCK ABSORBER

83M-47480-00-00

1
Out of stock

24

BUSH, SPECL NYLON

90386-14145-00

1
Out of stock

25

COLLAR (8U7)

90387-105G5-00

1

$7.35

In stock

26

BOLT, FLANGE(4GB)

95817-10045-00

1

$4.52

In stock

27

WASHER, PLATE (17K)

90201-106F2-00

—

$7.66

In stock

28

COLLAR

90387-082N5-00

1
Out of stock

29

BOLT

97022-08210-00

1
Out of stock

30

NUT, NYLON

95717-08300-00

—

$2.57

In stock

31

BRACKET 3

81E-47417-00-00

1
Out of stock

32

COLLAR (899 SUSPENSION)

90387-08496-00

—

$9.91

In stock

33

WASHER (1T1)

90201-08649-00

—
Out of stock

34

BOLT,FLANGE

95827-08260-00

1
Out of stock

35

NUT, SELF-LOCKING

90185-08169-00

—

$7.09

In stock

36

FRAME, SLIDING 2

8L8-47412-00-00

1
Out of stock

37

FRAME, SLIDING 3

8L8-47413-00-00

1
Out of stock

38

BOLT, WASHER BASED

90105-08404-00

1
Out of stock

39

COLLAR 3

8K2-47479-01-00

—

$25.69

In stock

40

COLLAR

90387-202K7-00

1
Out of stock

41

COLLAR

90387-202K4-00

1
Out of stock

42

NUT, NYLON

95707-10300-00

—

$6.68

In stock

43

COLLAR

90387-21757-00

1
Out of stock

44

BAR, SUSPENSION

8T9-47451-00-00

1
Out of stock

45

BOLT, FLANGE

95817-06035-00

1

$5.37

In stock

46

DAMPER 1

82M-47456-00-00

1
Out of stock

47

RIVET, BLIND (8K4)

90267-48062-00

—

$3.38

In stock

48

WASHER, PLATE(39X)

90201-057H5-00

—

$3.00

In stock

49

STOPPER 1

83M-47495-00-00

1
Out of stock

50

WASHER, PLATE

90201-06747-00

—

$6.17

In stock

51

BOLT, HEXAGON

97017-06025-00

—

$2.98

In stock

52

NUT, NYLON

95707-06300-00

—

$3.20

In stock
