1988 Yamaha Inviter (CF300M) Track Drive 2 Diagram

← All diagrams

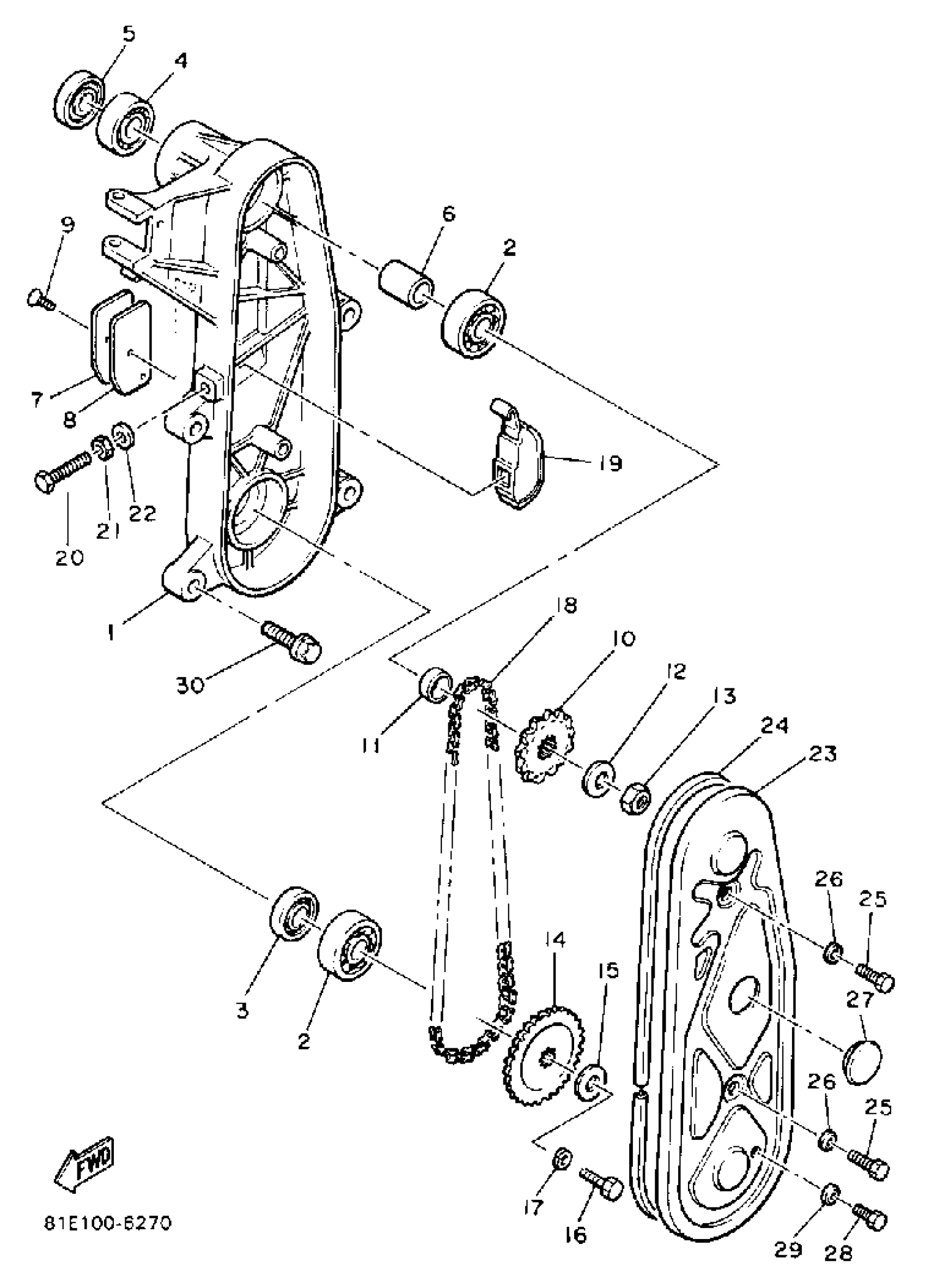

Find the part on the Track Drive 2 diagram for your 1988 Yamaha Inviter (CF300M), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1988 Yamaha Inviter (CF300M) Track Drive 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HOUSING, CHAIN

81E-47541-00-00

1
Out of stock

2

BRG,R-B 6304 52MM 144G NT

93306-30407-00

—

$58.51

In stock

3

OIL SEAL(4BA)

93102-20447-00

1
Out of stock

4

BEARING(1GJ)

93306-20458-00

1

$36.19

In stock

5

OIL SEAL (30X47X7-810)

93102-30083-00

1

$11.08

In stock

6

COLLAR

90387-20580-00

1
Out of stock

7

PLATE

81E-47591-00-00

1
Out of stock

8

GASKET

86E-47592-00-00

1
Out of stock

9

SCREW, PAN HEAD(62X)

97885-05010-00

1

$2.65

In stock

10

SPROCKET, CHAIN DRIVE(12T)

812-17682-20-00

1
Out of stock

11

COLLAR

90387-197N8-00

1
Out of stock

12

WASHER, PLATE (35T)

90201-122H1-00

1

$6.82

In stock

13

NUT, SELF LOCKING (23X)

90185-12119-00

1
Out of stock

14

SPROCKET,CHN DRN

8BC-47548-90-00

1
Out of stock

15

WASHER, PLATE (4W3)

90201-086A3-00

1

$6.29

In stock

16

BOLT, HEXAGON

97017-08025-00

—

$7.46

In stock

17

YBS67-8 WASHER, SPRING

92990-08100-00

—

$4.52

In stock

18

CHAIN (81E)

94580-01062-00

1
Out of stock

19

TENSIONER

8F3-47611-02-00

—

$24.51

In stock

20

BOLT, HEXAGON (8F3)

90101-10357-00

—

$6.52

In stock

21

NUT (682)

95380-10700-00

1

$5.78

In stock

22

WASHER SEAL 256111730200

90210-10004-00

—

$4.11

In stock

23

CAP, HOUSING

81E-47543-00-00

1
Out of stock

24

RING, HOUSING

83M-47558-00-00

1
Out of stock

25

BOLT, FLANGE(8AB)

95817-08020-00

—

$7.00

In stock

26

GASKET

90430-08023-00

1
Out of stock

27

CAP

148-22315-00-00

—

$6.40

In stock

28

SCREW, BIND(1JK)

98980-06010-00

—
Out of stock

29

GASKET

90430-06017-00

1
Out of stock

30

BOLT, FLANGE(6TA)

95817-08030-00

—

$6.17

In stock
