1988 Yamaha Inviter (CF300M) Frame Diagram

← All diagrams

Find the part on the Frame diagram for your 1988 Yamaha Inviter (CF300M), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

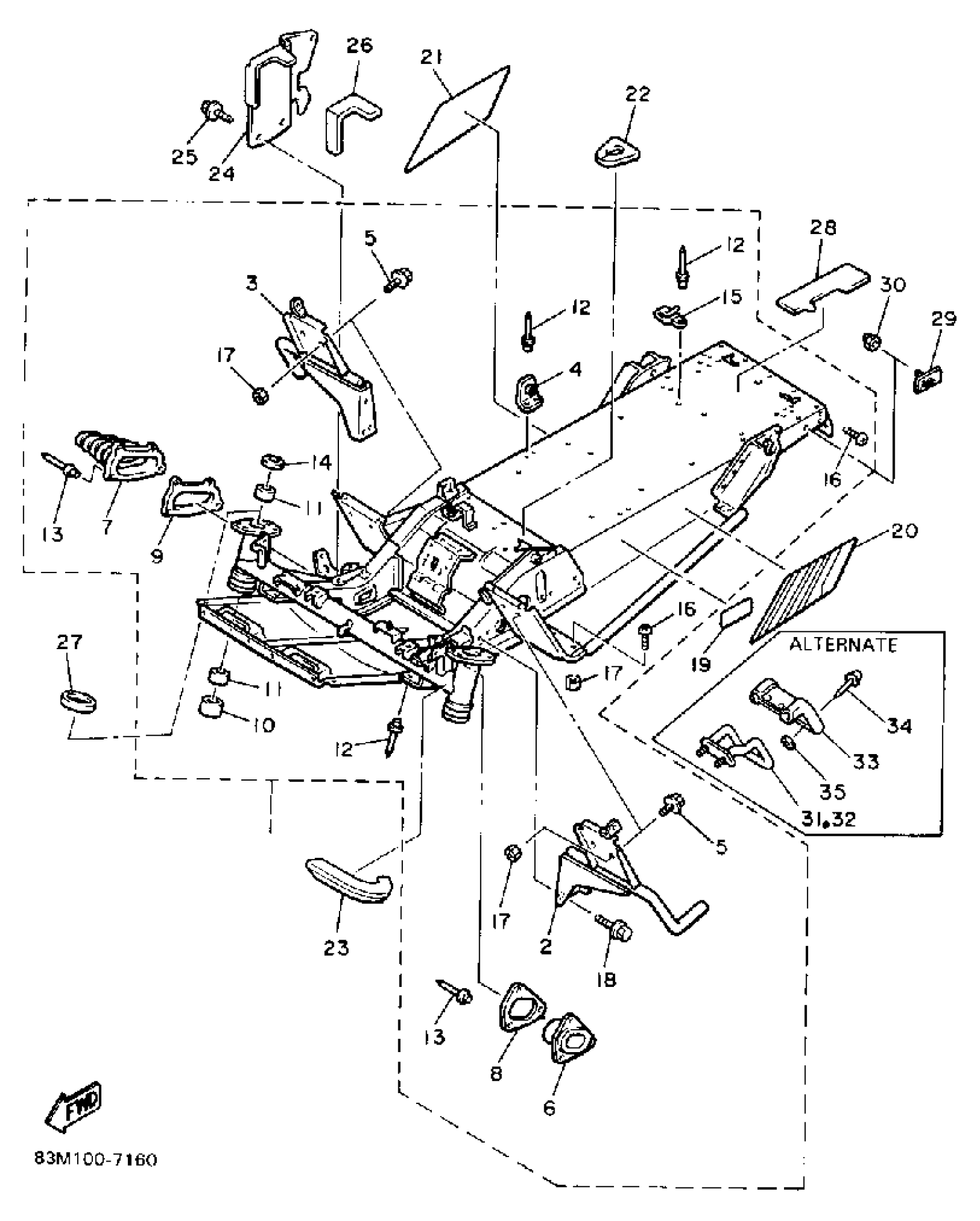

1988 Yamaha Inviter (CF300M) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

83U-21910-00-00

1
Out of stock

2

. RNFCMNT, FRAME SIDE

81E-21929-00-00

1
Out of stock

3

. REINFORCMNT, FRAME

81E-2192E-00-00

1
Out of stock

4

. BRACKET, SEAT FITTING

8V0-21946-00-00

1
Out of stock

5

BOLT, FLANGE

95817-06016-00

1

$1.49

In stock

6

. COVER 1

80L-2198F-00-00

1
Out of stock

7

. COVER, STEERING

81E-23818-00-00

1
Out of stock

8

. WASHER 1

80L-77525-00-00

1
Out of stock

9

. WASHER 2

81E-77526-00-00

1
Out of stock

10

. OIL SEAL

93103-44134-00

1
Out of stock

11

. BUSH, BIMETAL FORMED

90384-44173-00

1
Out of stock

12

RIVET (856)

90267-48014-00

1
Out of stock

13

RIVET, BLIND(8R6)

90267-40105-00

—

$1.62

In stock

14

. OIL SEAL

93104-44095-00

1
Out of stock

15

CLAMP(4MX)

90465-06376-00

1

$7.08

In stock

16

SCREW, BIND(J39)

98980-06014-00

—

$5.66

In stock

17

NUT, NYLON

95707-06300-00

—

$3.20

In stock

18

BOLT, FLANGE

95812-06010-00

—

$2.75

In stock

19

INDICATOR 2

8K2-77742-00-00

1
Out of stock

20

EMBLEM 3

83U-77353-00-00

1
Out of stock

21

EMBLEM 4

83U-77354-00-00

1
Out of stock

22

PATCH 8

81E-21988-00-00

1
Out of stock

23

TAPE 4

83U-7717H-00-00

1
Out of stock

24

SHIELD, HEAT

81E-2199H-00-00

1
Out of stock

25

BOLT, FLANGE

95812-06010-00

—

$2.75

In stock

26

SHIELD, NOISE 2

81E-2199J-01-00

1
Out of stock

27

DAMPER, NOISE 11

81E-77271-00-00

1
Out of stock

28

TAPE 1

81E-7717E-00-00

1
Out of stock

29

REAR REFLECTOR ASSY

3Y6-85130-02-00

1

$22.72

In stock

30

NUT, NYLON

95707-05300-00

—

$2.74

In stock

31

. BRACKET 5

83U-2196M-00-00

1
Out of stock

32

. BRACKET 6

83U-2197M-00-00

1
Out of stock

33

COVER, TOE HOOK

81E-2196N-00-00

1
Out of stock

34

RIVET, BLIND(41R)

90267-48104-00

—
Out of stock

35

WASHER, PLATE

90201-04027-00

—
Out of stock
