1988 Yamaha Inviter (CF300M) Carburetor Diagram

← All diagrams

Find the part on the Carburetor diagram for your 1988 Yamaha Inviter (CF300M), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

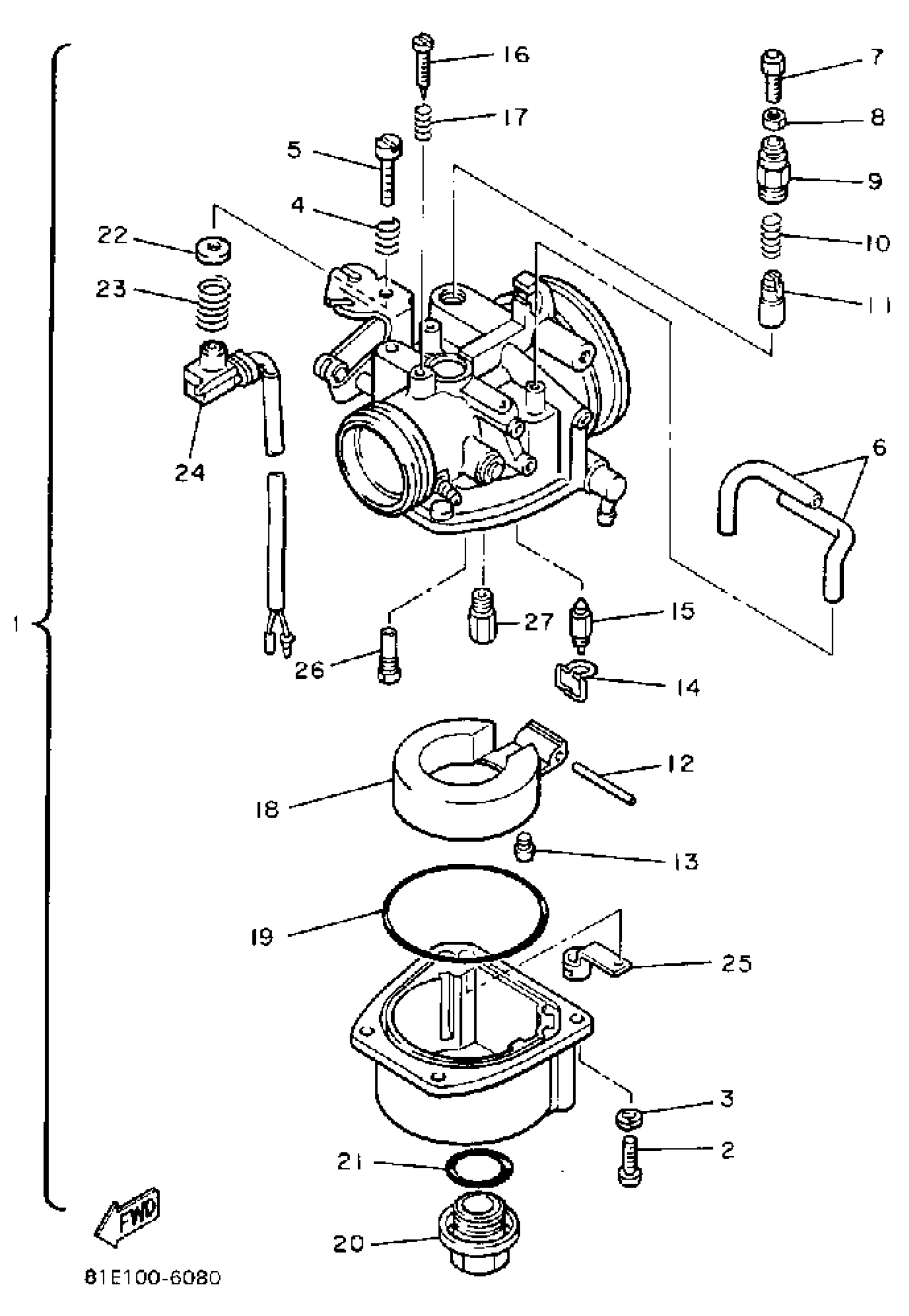

1988 Yamaha Inviter (CF300M) Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CARBURETOR ASSEMBLY 1

83M-14101-01-00

1
Out of stock

2

SCREW, PAN HEAD

98580-04540-00

1
Out of stock

3

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

4

. SPRING, COMPRESSION

90501-12229-00

1
Out of stock

5

SCREW, THROTTLE STOP

80F-14121-00-00

—

$9.25

In stock

6

. NET, FILTER

8G6-14994-01-00

1
Out of stock

7

1

$19.06

In stock

8

. NUT, CABLE ADJUSTING

8E7-14161-00-00

1
Out of stock

9

. CAP

83M-14969-00-00

1
Out of stock

10

SPRING (8E7)

90501-08443-00

1

$8.63

In stock

11

PLUNGER, STARTER

371-14993-60-00

1

$31.14

In stock

12

. PIN, FLOAT ARM

663-14548-00-00

1

$5.34

In stock

13

SCREW, FLAT

98707-04008-00

1
Out of stock

14

CLIP

633-14159-00-00

1

$13.88

In stock

15

VALVE,FLOAT

8E7-14546-01-00

1

$57.49

In stock

16

SCREW, ADJUST

8G6-14521-00-00

—

$11.28

In stock

17

SPRING, COMPRESSION

90501-08214-00

—

$5.74

In stock

18

FLOAT

8G6-14985-01-00

—

$32.43

In stock

19

. UNAVAILABLE IN PRICE BOOK

8G6-15984-00-00

1
Out of stock

20

. UNAVAILABLE IN PRICE BOOK

8M7-15992-00-00

1
Out of stock

21

O-RING (8A6)

93210-19309-00

—

$4.91

In stock

22

PLATE

80F-14146-00-00

—
Out of stock

23

. SPRING, THROTTLE STOP

80F-14133-00-00

1
Out of stock

24

SWITCH, CARBURETOR

87S-8259A-01-00

—

$73.57

In stock

25

CLIP

80F-14137-01-00

—

$8.49

In stock

26

. JET

8G6-14948-25-00

1
Out of stock

27

. JET, MAIN (#100)

8A6-14516-00-00

1
Out of stock

27

. JET, MAIN (#102)

8A6-14516-02-00

1
Out of stock

27

JET, MAIN (#105)

8A6-14516-05-00

—

$14.00

In stock

27

. JET, MAIN #108

8A6-14516-08-00

1
Out of stock

27

. JET, MAIN #110

8A6-14516-10-00

1
Out of stock
