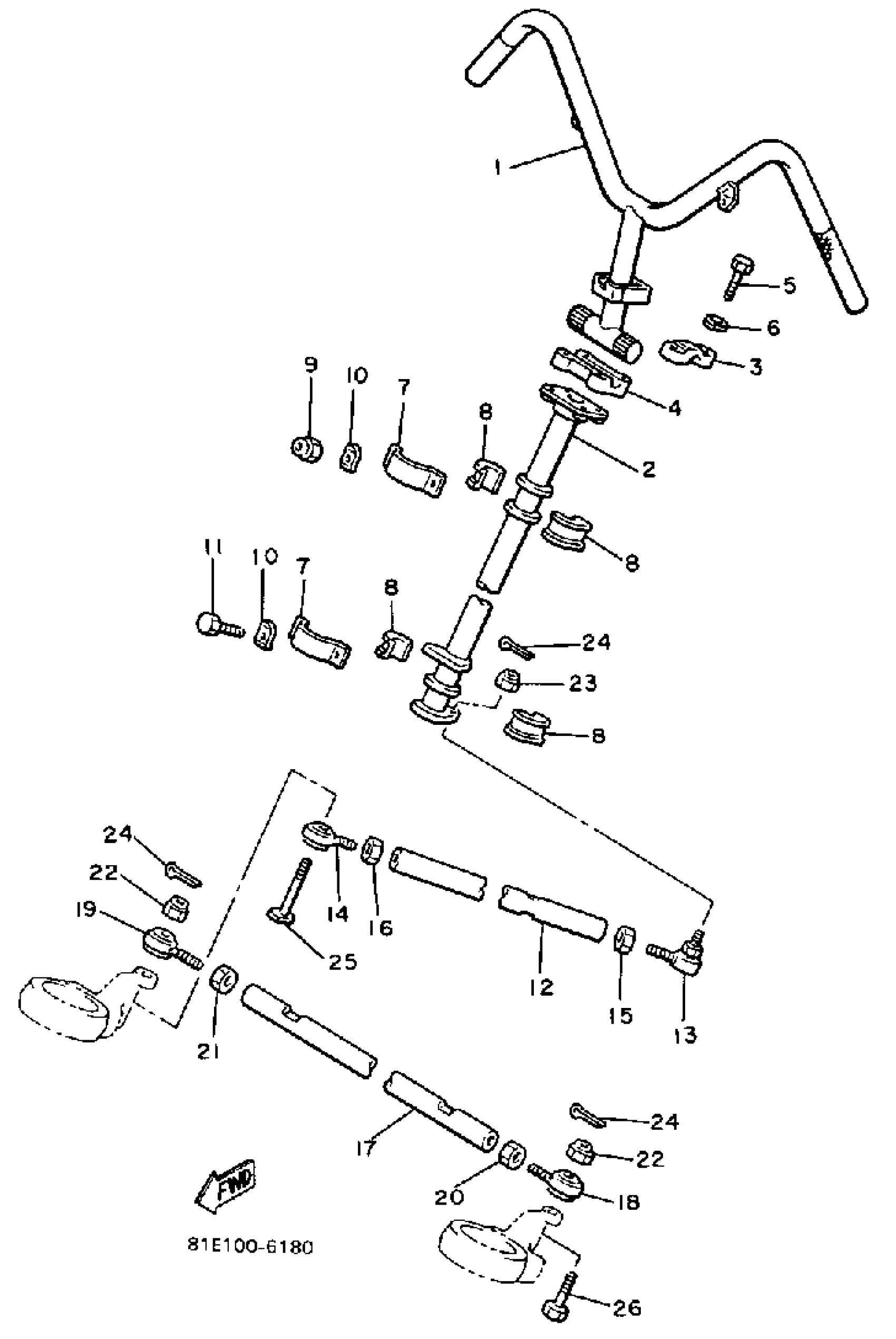

Yamaha CF300L (INVITER) 1987 STEERING Diagram

#

Description
Price

1

COLUMN, STEERING

81E-23811-00-00

Unavailable

2

COLUMN, STEERING 2

81E-23813-00-00

Unavailable

3

HOLDER, HANDLE UPPER

1E6-23441-00-00

$20.90

4

HANDLE, HOLDER

164-23441-01-98

Unavailable

5

BOLT, HEXAGON

97017-08055-00

$6.40

6

YBS67-8 WASHER, SPRING

92990-08100-00

$4.23

7

BRACKET, STEERING LOWER

84M-23868-00-00

Unavailable

8

BEARING, STEERING

8F3-23812-00-00

$9.25

9

NUT, NYLON

95717-08300-00

$2.38

10

WASHER, LOCK 1

8AC-23894-01-00

$3.56

11

BOLT, HEXAGON

97017-08016-00

$5.79

12

ROD, STEERING RELAY

81E-23821-00-00

Unavailable

13

JOINT, UNIVERSAL 1

86X-23841-00-00

$49.29

14

JOINT, UNIVERSAL 3

87S-23847-01-00

$42.90

15

NUT (682)

95380-10700-00

$5.27

16

NUT, HEXAGON (8A5)

90170-10186-00

Unavailable

17

ROD, TIE

81E-23831-00-00

Unavailable

18

JOINT, UNIVERSAL 2

87S-23845-01-00

Unavailable

19

JOINT, UNIVERSAL 3

87S-23847-01-00

$42.90

20

NUT (682)

95380-10700-00

$5.27

21

NUT, HEXAGON (8A5)

90170-10186-00

Unavailable

22

NUT, NYLON

95707-10300-00

Unavailable

23

NUT, SELF-LOCKING (8J8)

90185-10085-00

Unavailable

24

PIN, COTTER

91490-25020-00

Unavailable

25

BOLT

90109-10767-00

Unavailable

26

BOLT, PIN HOLE (8M6)

90102-10044-00

Unavailable
