1987 Yamaha Inviter (CF300L) Seat Diagram

← All diagrams

Find the part on the Seat diagram for your 1987 Yamaha Inviter (CF300L), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

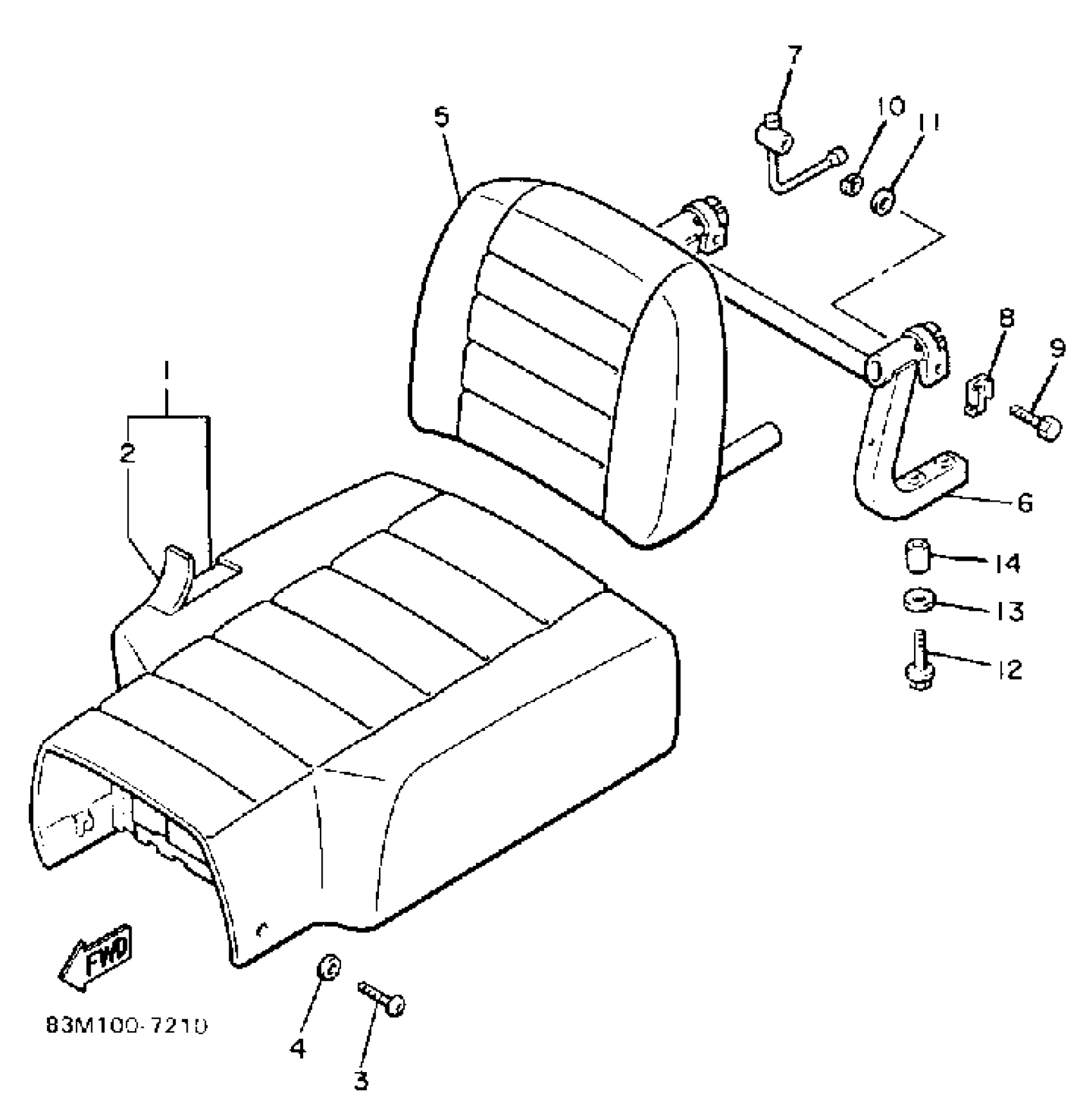

1987 Yamaha Inviter (CF300L) Seat Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SINGLE SEAT ASSEMBLY

86W-24710-00-00

1
Out of stock

2

COVER,SINGLE SEAT

86E-24711-00-00

1
Out of stock

3

SCREW, BINDING

98907-06025-00

1

$6.18

In stock

4

WASHER, PLATE

90201-06086-00

1
Out of stock

5

SEAT BACK ASSEMBLY

83M-24790-00-00

1
Out of stock

6

BRACKET, SEAT BACK

81E-24797-00-00

1
Out of stock

7

LEVER, SEAT

81E-24776-02-00

1
Out of stock

8

WASHER, SEAT

81E-24746-00-00

1
Out of stock

9

BOLT (81E)

90101-08652-00

1
Out of stock

10

YBS67-8 WASHER, SPRING

92990-08100-00

1

$4.52

In stock

11

WASHER, PLATE (3L7)

90201-08784-00

1

$2.54

In stock

12

BOLT, FLANGE

95817-08035-00

1

$6.68

In stock

13

WASHER, PLATE (12X)

90201-087F0-00

1

$3.71

In stock

14

COLLAR(8V7)

90387-087L3-00

1

$7.92

In stock
