1987 Yamaha Inviter (CF300L) Pump Drive-Gear Diagram

← All diagrams

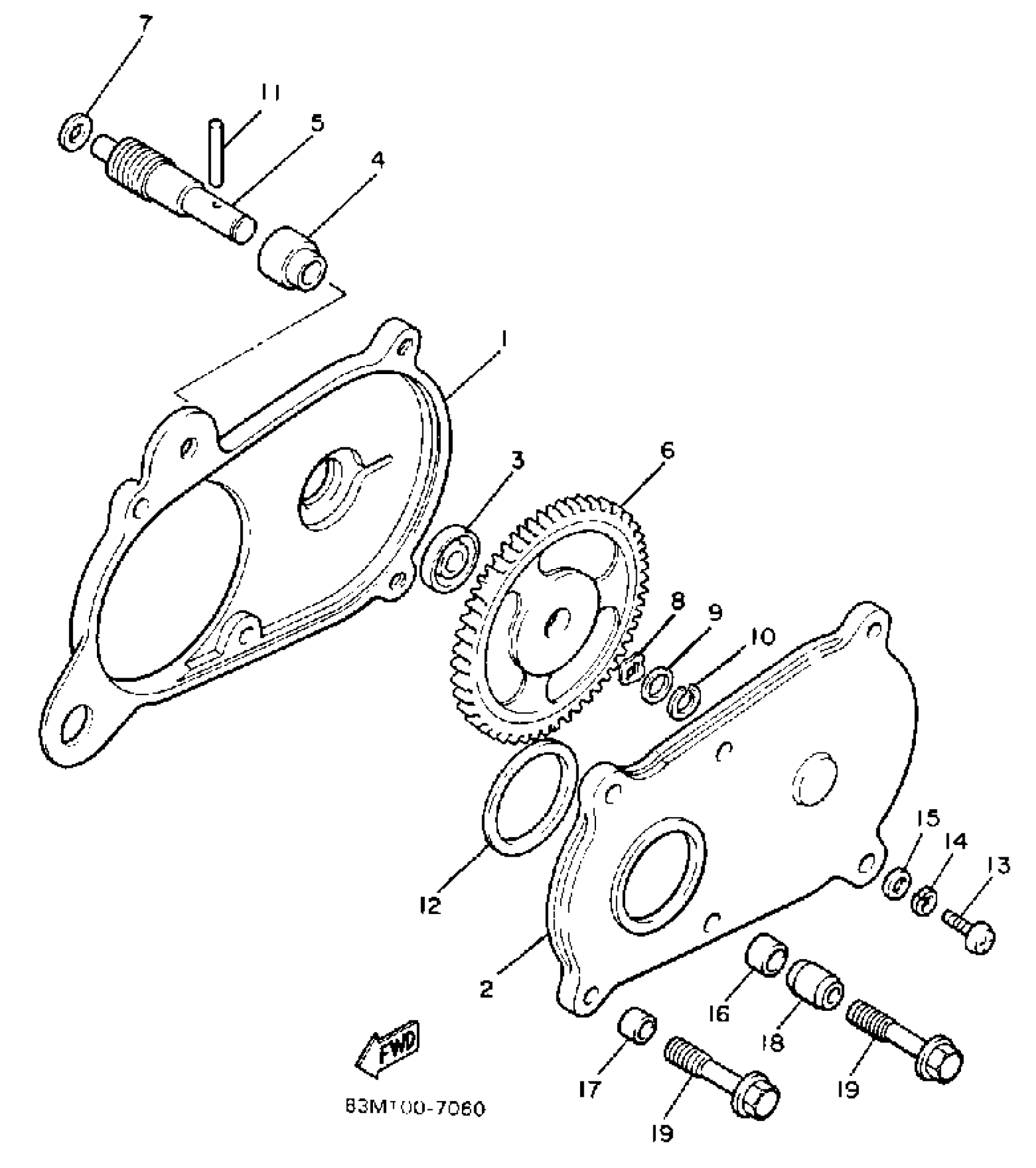

Find the part on the Pump Drive-Gear diagram for your 1987 Yamaha Inviter (CF300L), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1987 Yamaha Inviter (CF300L) Pump Drive-Gear Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, OIL PUMP

8R4-15416-00-00

—
Out of stock

2

COVER, OIL PUMP 2

8R4-15426-00-00

—

$17.31

In stock

3

OIL SEAL (J10)

93101-10090-00

1

$6.17

In stock

4

METAL, WORM SHAFT OUTER

821-13176-00-00

1

$6.33

In stock

5

SHAFT, WORM

83M-13175-00-00

1
Out of stock

6

GEAR, DRIVE (59T)

8R4-13188-00-00

1
Out of stock

7

PLATE, CAM THRUST

137-13148-00-00

—

$3.28

In stock

8

WASHER, WAVE (137)

90206-11016-00

—

$12.72

In stock

9

WASHER, PLATE (1E7)

90201-08624-00

—
Out of stock

10

CIRCLIP(10W)

99009-10400-00

1

$3.91

In stock

11

PIN,DOWEL (137)

93603-22028-00

1
Out of stock

12

OIL SEAL (8R4)

93104-29072-00

1

$6.31

In stock

13

SCREW PAN HEAD

98580-06020-00

1

$5.10

In stock

14

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

15

WASHER, PLAIN (646)

92990-06600-00

1

$2.48

In stock

16

COLLAR(8R4)

90387-082N1-00

—

$3.55

In stock

17

COLLAR(8R4)

90387-062N2-00

—

$6.94

In stock

18

UNAVAILABLE IN PRICE BOOK

91810-08022-00

1
Out of stock

19

BOLT, FLANGE

95817-06035-00

—

$5.37

In stock
