1987 Yamaha Inviter (CF300L) Air Cleaner Diagram

← All diagrams

Find the part on the Air Cleaner diagram for your 1987 Yamaha Inviter (CF300L), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

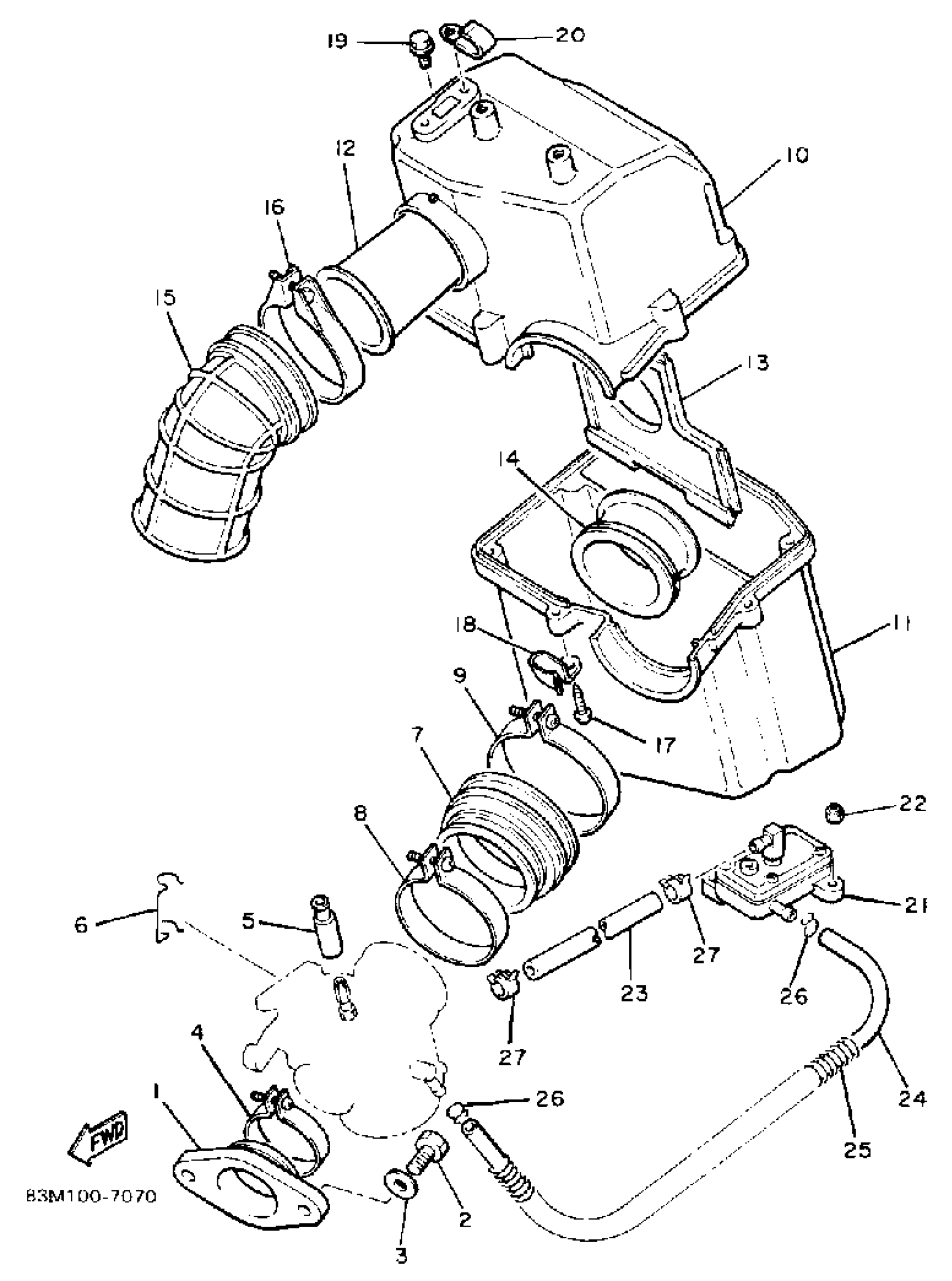

1987 Yamaha Inviter (CF300L) Air Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

MANIFOLD, INTAKE

81E-13555-00-00

1
Out of stock

2

BOLT, HEXAGON

97017-08025-00

1

$7.46

In stock

3

.. WASHER, PLATE

92990-08600-00

1

$2.36

In stock

4

BAND

86M-13575-00-00

1

$16.45

In stock

5

BOOT

8J5-26352-00-00

1
Out of stock

6

CLAMP

90465-10033-00

1
Out of stock

7

JOINT, AIR CLEANER

8G8-14453-01-00

1

$25.05

In stock

8

CLAMP, HOSE (29L)

90460-68230-00

1
Out of stock

9

CLAMP, HOSE(59V)

90460-85277-00

1

$12.62

In stock

10

SILENCER, INTAKE 1

81E-14431-01-00

1
Out of stock

11

SILENCER, INTAKE 2

81E-14441-00-00

1
Out of stock

12

PIPE

(81E-14419-00-00)

1
Out of stock

13

PLATE

81E-14477-00-00

1
Out of stock

14

PIPE

81E-14465-00-00

1
Out of stock

15

JOINT

81E-14454-00-00

1
Out of stock

16

CLAMP, HOSE

90460-77016-00

1
Out of stock

17

—

$2.03

In stock

18

CLAMP (1L9)

(90465-10092-00)

1
Out of stock

19

BOLT, WITH WASHER(8V7)

90119-06108-00

—

$6.68

In stock

20

CLAMP

90462-10236-00

—

$8.97

In stock

21

FUEL PUMP ASY

8J6-24410-01-00

1
Out of stock

22

NUT, NYLON

95707-06300-00

—

$3.20

In stock

23

HOSE (L450)

90445-10144-00

—

$4.52

In stock

24

TUBE, FLEXIBLE VINYL(8AU)

91A20-05039-00

—
Out of stock

25

SPRING, COMPRESSION(7MX)

90501-084J0-00

—

$5.86

In stock

26

CLIP

90467-090A2-00

—

$2.51

In stock

27

CLIP (8A1)

90467-09026-00

—

$2.72

In stock
