1986 Yamaha Inviter (CF300K) Track Suspension 2 Diagram

← All diagrams

Find the part on the Track Suspension 2 diagram for your 1986 Yamaha Inviter (CF300K), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

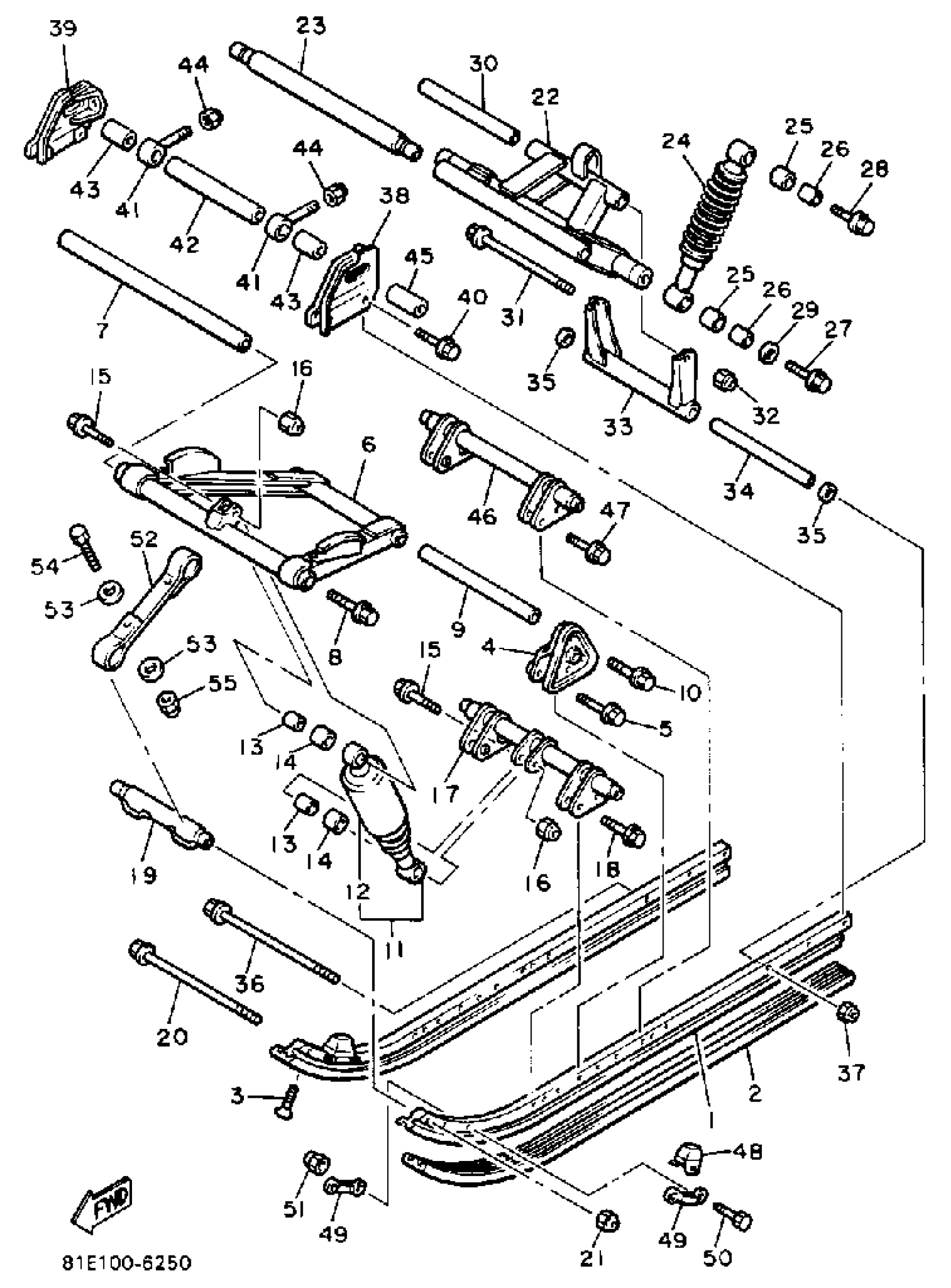

1986 Yamaha Inviter (CF300K) Track Suspension 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME, SLIDING 1

81E-47411-00-00

1
Out of stock

2

RUNNER, SLIDING 1 (81E-47421-00)

81E-47421-00-XX

1
Out of stock

3

SCREW, CROSSRECESS (8G6)

90151-06005-00

1
Out of stock

4

BRACKET 2

81E-47416-00-00

1
Out of stock

5

BOLT, FLANGE

95817-06035-00

1
Out of stock

6

ARM, PIVOT 1

81E-47331-00-00

1
Out of stock

7

SHAFT, 1

81E-47465-01-00

1
Out of stock

8

BOLT (8V0)

90109-10771-00

1
Out of stock

9

SHAFT 3

8A5-47485-02-00

1
Out of stock

10

BOLT, FLANGE

95817-10030-00

1
Out of stock

11

SHOCK ABSORBER 2

83M-47481-00-00

1
Out of stock

12

. COVER

81E-22211-00-00

1
Out of stock

13

COLLAR (8U7)

90387-105G5-00

1
Out of stock

14

BUSH, SPECL NYLON

90386-14145-00

1
Out of stock

15

BOLT, FLANGE(4GB)

95817-10045-00

1
Out of stock

16

NUT, U

95617-10100-00

—
Out of stock

17

BAR, SUSPENSION

(81E-47451-00-00)

1
Out of stock

18

BOLT, FLANGE

95817-06035-00

1
Out of stock

19

BRACKET 1

81E-47415-00-00

1
Out of stock

20

BOLT,FLANGE

95827-08260-00

1
Out of stock

21

NUT, SELF-LOCKING

90185-08169-00

—
Out of stock

22

ARM, PIVOT 2

81E-47332-00-00

1
Out of stock

23

SHAFT 2

8K2-47475-00-00

1
Out of stock

24

SHOCK ABSORBER

83M-47480-00-00

1
Out of stock

25

BUSH, SPECL NYLON

90386-14145-00

1
Out of stock

26

COLLAR (8U7)

90387-105G5-00

1
Out of stock

27

BOLT, FLANGE(4GB)

95817-10045-00

1
Out of stock

28

BOLT, FLANGE(4GB)

95817-10045-00

1
Out of stock

29

WASHER PLATE (789)

90201-10136-00

—
Out of stock

30

COLLAR

90387-082N5-00

1
Out of stock

31

BOLT

97022-08210-00

1
Out of stock

32

NUT, NYLON

95717-08300-00

—
Out of stock

33

BRACKET 3

81E-47417-00-00

1
Out of stock

34

COLLAR (899 SUSPENSION)

90387-08496-00

—
Out of stock

35

WASHER (1T1)

90201-08649-00

—
Out of stock

36

BOLT,FLANGE

95827-08260-00

1
Out of stock

37

NUT, SELF-LOCKING

90185-08169-00

—
Out of stock

38

FRAME, SLIDING 2

8L8-47412-00-00

1
Out of stock

39

FRAME, SLIDING 3

8L8-47413-00-00

1
Out of stock

40

BOLT, WASHER BASED

90105-08404-00

1
Out of stock

41

COLLAR 3

8K2-47479-01-00

—
Out of stock

42

COLLAR

90387-202K7-00

1
Out of stock

43

COLLAR

90387-202K4-00

1
Out of stock

44

NUT, NYLON

95707-10300-00

—
Out of stock

45

COLLAR

90387-21757-00

1
Out of stock

46

BAR, SUSPENSION

8T9-47451-00-00

1
Out of stock

47

BOLT, FLANGE

95817-06035-00

1
Out of stock

48

DAMPER 1

8L8-47456-00-00

1
Out of stock

49

PLATE, DAMPER

885-47458-01-00

1
Out of stock

50

BOLT (674)

97313-05035-00

1
Out of stock

51

NUT, NYLON

95707-05300-00

—
Out of stock

52

STOPPER 1

(81E-47495-00-00)

1
Out of stock

53

WASHER, PLATE

90201-06747-00

—
Out of stock

54

BOLT, HEXAGON

97017-06025-00

—
Out of stock

55

NUT, NYLON

95707-06300-00

—
Out of stock
