1986 Yamaha Inviter (CF300K) SKI Diagram

← All diagrams

Find the part on the SKI diagram for your 1986 Yamaha Inviter (CF300K), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

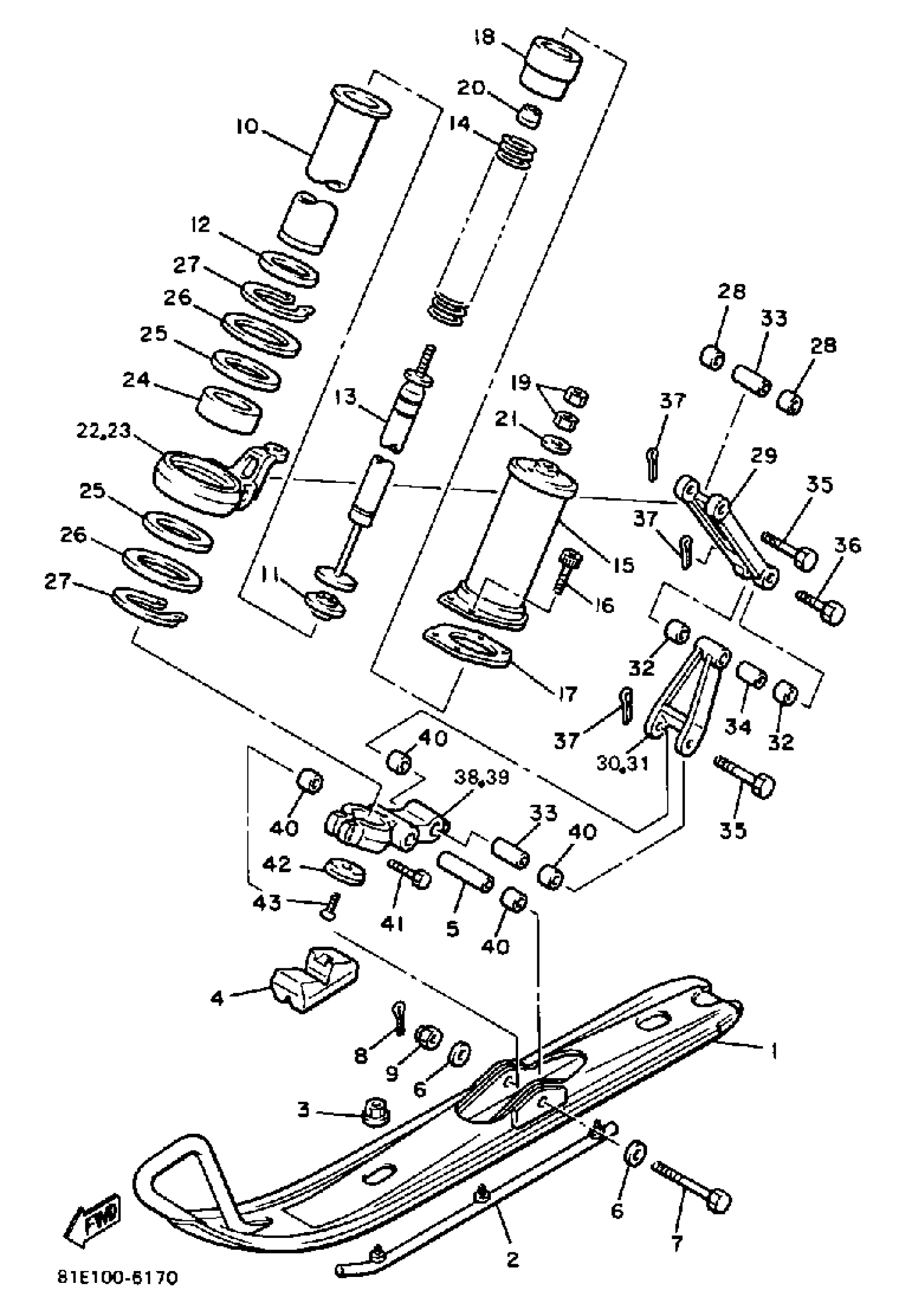

1986 Yamaha Inviter (CF300K) SKI Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SKI 1

8V0-23710-02-00

1
Out of stock

2

SKI RUNNER,1

VMX-23731-01-XX

1
Out of stock

3

NUT, SELF-LOCKING

90185-08169-00

1

$7.09

In stock

4

STOPPER 1

81E-23743-00-00

1
Out of stock

5

COLLAR (8V0)

90387-106J3-00

1

$13.95

In stock

6

WASHER(6TA)

92907-10600-00

1
Out of stock

7

BOLT, WITH HAUL (31A)

90102-10050-00

1

$16.75

In stock

8

PIN, COTTER

91490-20025-00

1

$1.31

In stock

9

NUT, NYLON

95707-10300-00

1

$6.68

In stock

10

CYLINDER, SHOCK ABS

81E-22471-00-00

1
Out of stock

11

WASHER

81E-23779-00-00

1
Out of stock

12

STOP, REBOUND

81E-22494-00-00

1
Out of stock

13

ABSORBER ASSY 1

83M-2376A-00-00

1
Out of stock

14

SPRING, COMPRESSION

(90501-550E6-00)

1
Out of stock

15

HOLDER, ABSORBER

81E-2376J-00-00

1
Out of stock

16

BOLT, HEXAGON

97017-06025-00

—

$2.98

In stock

17

WASHER 2

81E-23738-00-00

1
Out of stock

18

BUMP, STOP

81E-22493-00-00

1
Out of stock

19

. NUT

95380-08700-00

1

$3.07

In stock

20

CUSHION

8V0-2386J-00-00

1
Out of stock

21

WASHER, PLAIN

92990-08200-00

1

$2.56

In stock

22

ARM, OUTSIDE 1

81E-23851-00-00

1
Out of stock

23

ARM, OUTSIDE 2

81E-23852-00-00

1
Out of stock

24

BUSH, BIMETAL FORMED

90384-63188-00

1
Out of stock

25

WASHER, PLATE

90201-637F3-00

1
Out of stock

26

WASHER, PLATE

90201-635H7-00

1
Out of stock

26

WASHER, PLATE

90201-637F3-00

1
Out of stock

27

CIRCLIP

93410-63066-00

1
Out of stock

28

—

$9.15

In stock

29

ARM, FRONT 1

8V0-2382E-01-00

1
Out of stock

30

ARM, FRONT 2 (L, H)

8V0-2382F-02-00

1
Out of stock

31

ARM, FRONT4 (R, H)

8V0-2383F-02-00

1
Out of stock

32

—

$9.29

In stock

33

COLLAR(89A)

90387-101Y9-00

—

$20.45

In stock

34

COLLAR (8L0)

90387-100A4-00

—

$5.62

In stock

35

BOLT, WITH HOLE

90102-10054-00

1
Out of stock

36

BOLT, WITH HOLE

90102-10055-00

1
Out of stock

37

PIN, COTTER

91490-20025-00

1

$1.31

In stock

38

BRACKET 1 (L, H)

81E-2376E-00-00

1
Out of stock

39

BRACKET 2 (R, H)

81E-2377E-00-00

1
Out of stock

40

—

$9.15

In stock

41

BOLT, HEXAGON

97017-08030-00

—

$6.85

In stock

42

WASHER 1

81E-23737-00-00

—

$10.09

In stock

43

SCREW, FLAT HEAD(4EM)

98707-06016-00

—

$6.68

In stock
