1986 Yamaha Inviter (CF300K) Electrical 2 Diagram

← All diagrams

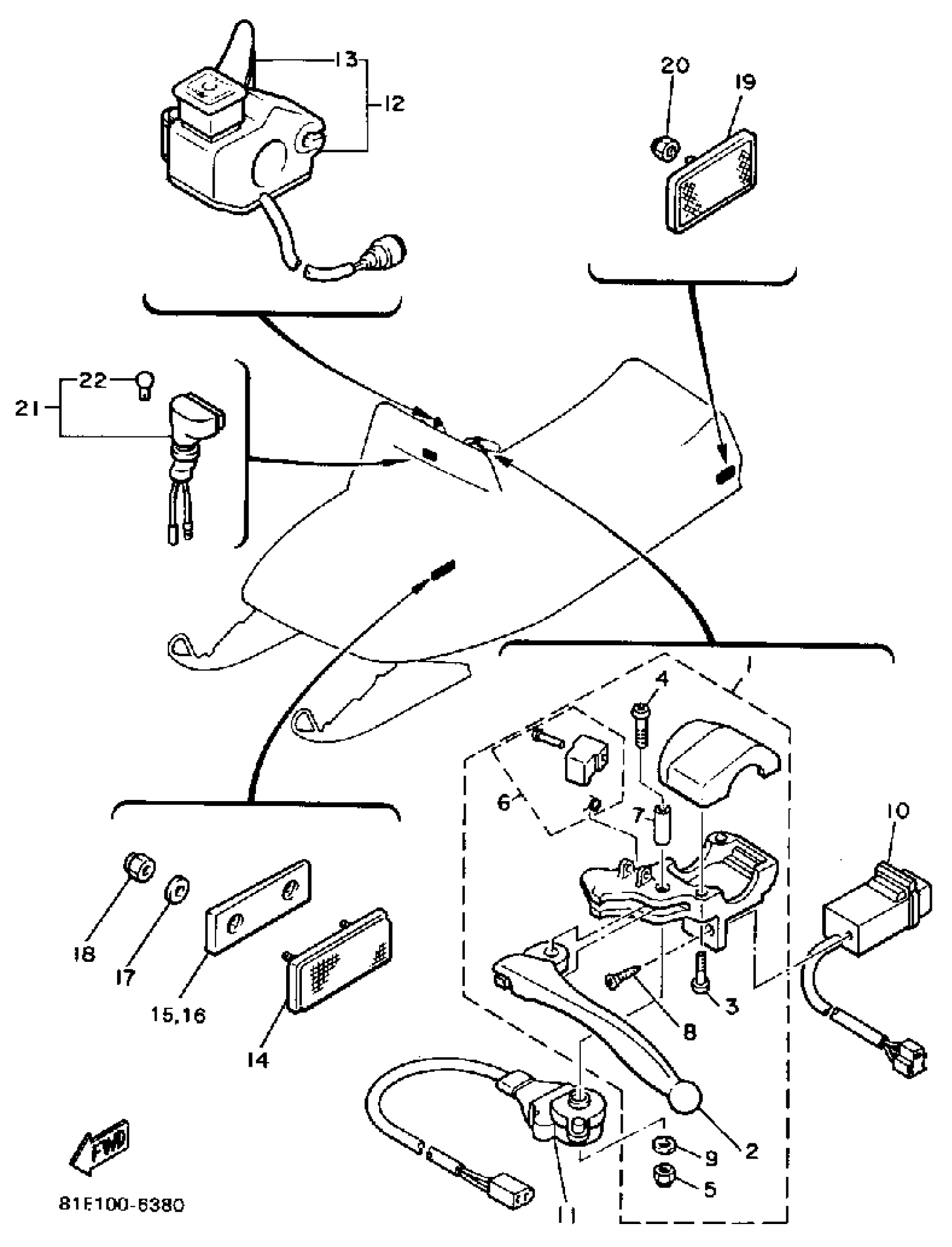

Find the part on the Electrical 2 diagram for your 1986 Yamaha Inviter (CF300K), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Yamaha Inviter (CF300K) Electrical 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

LEVER HOLDER ASSY (LEFT)

88R-W8291-00-00

1

$110.75

In stock

2

LEVER 1

8H8-83912-00-00

1

$18.40

In stock

3

SCREW, PAN HEAD(41N)

90157-05057-00

—

$2.23

In stock

4

SCREW, PAN

98507-05040-00

1

$6.68

In stock

5

NUT, NYLON

95707-05300-00

1

$2.74

In stock

6

. LEVER LOCK ASSEMBLY (8K4-83930-00-00)

82A-83930-00-00

1
Out of stock

7

COLLAR, LEVER

802-83913-00-00

—

$6.35

In stock

8

. SCREW, TAPPING

97780-30312-00

1
Out of stock

9

. WASHER, PLAIN

92990-05200-00

1

$5.08

In stock

10

BEAM SWITCH ASSY

8H8-83950-01-00

1

$68.89

In stock

11

STOP SWITCH ASSY

88R-82530-00-00

1

$25.06

In stock

12

LEVER HOLDER ASSEMBLY R

83M-82720-00-00

1
Out of stock

13

LEVER, THROTTLE

81E-42138-00-00

1
Out of stock

14

REFLECTOR ASSEMBLY

81E-85110-00-00

1
Out of stock

15

BASE, REFLECTOR

81E-85115-00-00

1
Out of stock

16

BASE, REFLECTOR

81E-85115-50-00

1
Out of stock

17

WASHER, PLAIN (646)

92990-05600-00

—
Out of stock

18

NUT, NYLON

95707-05300-00

1

$2.74

In stock

19

REAR REFLECTOR ASSY

3Y6-85130-02-00

1

$22.72

In stock

20

NUT, NYLON

95707-05300-00

1

$2.74

In stock

21

PILOT LIGHT ASSEMBLY

81E-83530-00-00

1
Out of stock

22

BULB (12V-3.4W)

123-83516-21-00

—

$4.10

In stock
