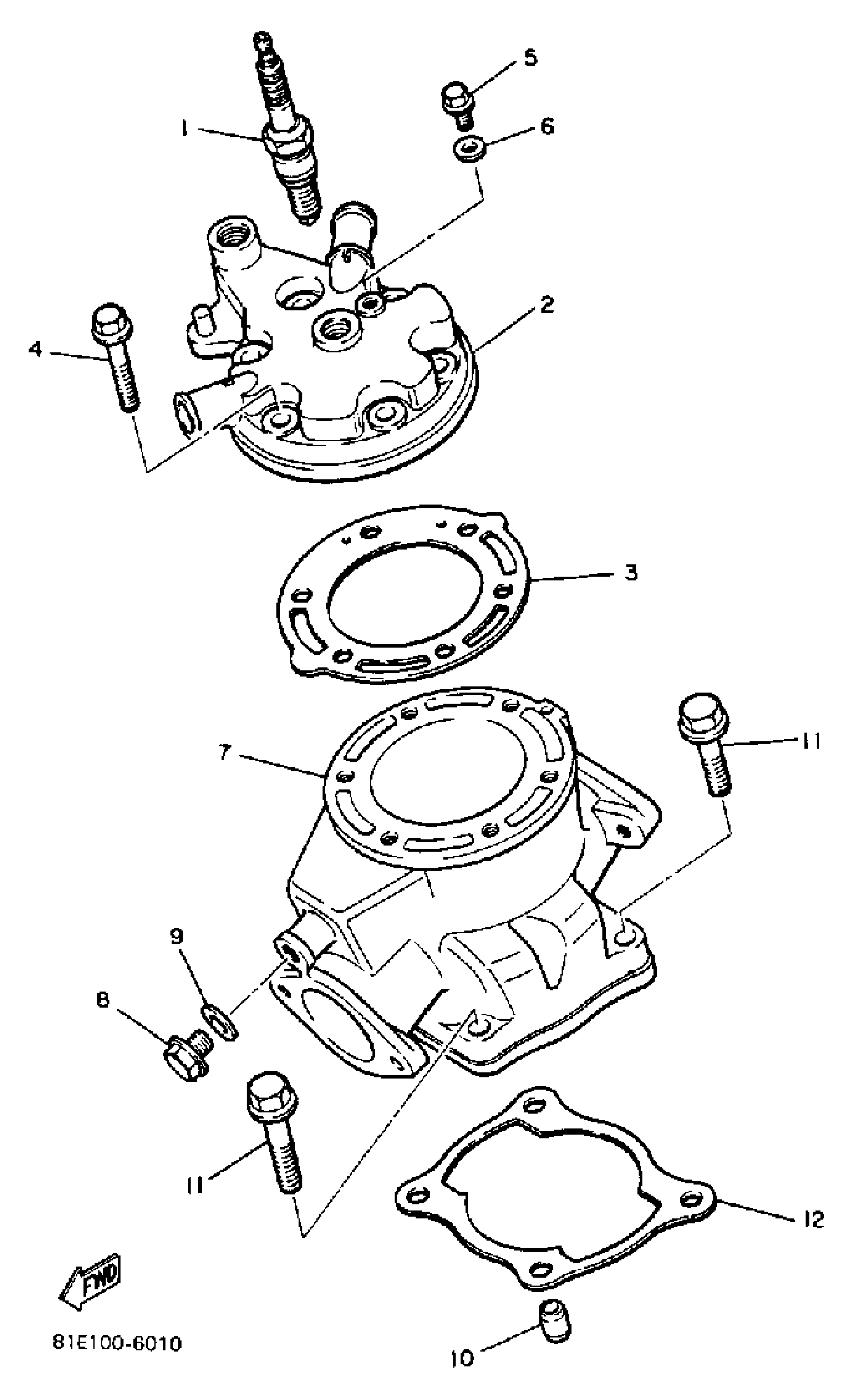

Yamaha CF300K (INVITER) 1986 CYLINDER Diagram

#

Description
Price

1

BR8ES NGK SCREW TOP 4PK

BR8-ES000-00-00

$3.82

2

HEAD, CYLINDER 1

(81E-11111-00-00)

Unavailable

3

GASKET, CYLINDER HEAD 1

81E-11181-02-00

$36.30

4

BOLT, FLANGE(4KG)

95024-08040-00

$5.75

5

BOLT, FLANGE

95817-06012-00

$1.40

6

GASKET (4V2)

90430-06166-00

$3.22

7

CYLINDER 1

81E-11311-00-00

Unavailable

8

BOLT, FLANGE

95026-10016-00

Unavailable

9

WASHER PLATE 341839090000

90201-10128-00

$3.19

10

PIN, DOWEL

99530-14016-00

$2.98

11

BOLT, FLANGE

(95026-10045-00)

Unavailable

12

GASKET, CYLINDER

81E-11351-01-00

Unavailable
