1971 Kawasaki Centurion Fuel Tank/seat Diagram

← All diagrams

Find the part on the Fuel Tank/seat diagram for your 1971 Kawasaki Centurion, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

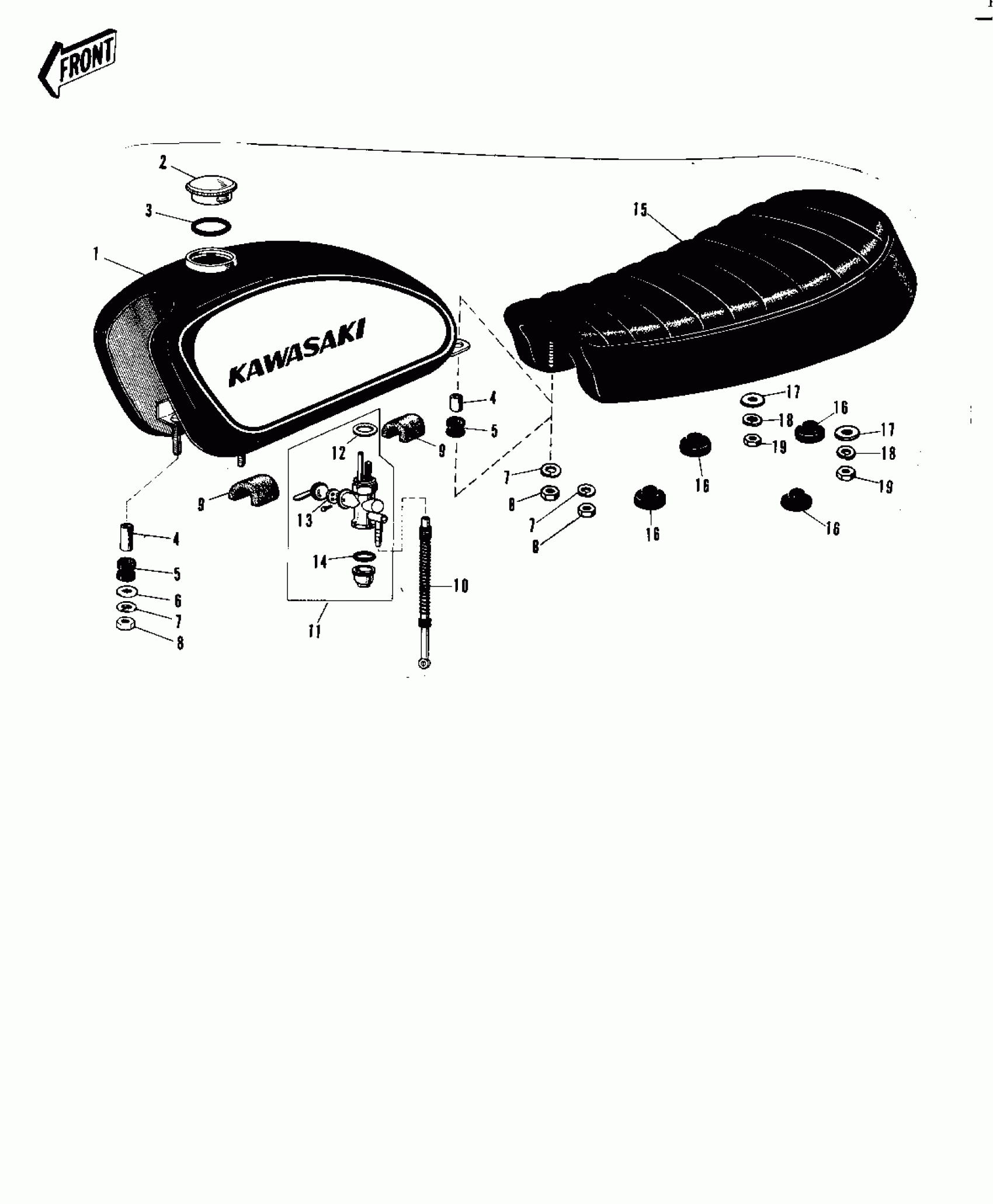

1971 Kawasaki Centurion Fuel Tank/seat Diagram

#

Description
Price
Status
Order Qty

1

TANK-FUEL,LIME GREEN

51001-062-33

Out of stock

1

TANK-FUEL,L.GREEN

51001-062-54

Out of stock

2

CAP ASSY, LOCKING

51048-006

Out of stock

3

GASKET FUEL TANK CAP

51059-003

Out of stock

4

SPACER FUEL TANK MONT

51065-001

Out of stock

5

DAMPER RUBB TANK FRNT

92075-019

Out of stock

6

WASHER,8X26X2.3

92022-1564

Out of stock

7

WASHER SPRING 8MM

461F0800

Out of stock

8

NUT,8MM

311B0800

Out of stock

9

MAT FUEL TANK

51067-006

Out of stock

10

PIPE-FUEL

51044-031

Out of stock

11

TAP-ASSY,FUEL

51023-1123

Out of stock

12

GASKET,FUEL TAP JOINT

11009-1567

Out of stock

13

'O' RING FUEL COCK

92065-062

Out of stock

14

GASKET FUEL COCK CUP

51037-008

Out of stock

15

SEAT-ASSY,DUAL

53001-058

Out of stock

16

DAMPER,DUAL SEAT

92075-023

Out of stock

17

WASHER-PLAIN-SMALL,6MM

410B0600

Out of stock

18

WASHER SPRING 6MM

461F0600

Out of stock

19

NUT 6MM

311B0600

Out of stock
