1971 Kawasaki Centurion Front Hub/brake Diagram

← All diagrams

Find the part on the Front Hub/brake diagram for your 1971 Kawasaki Centurion, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

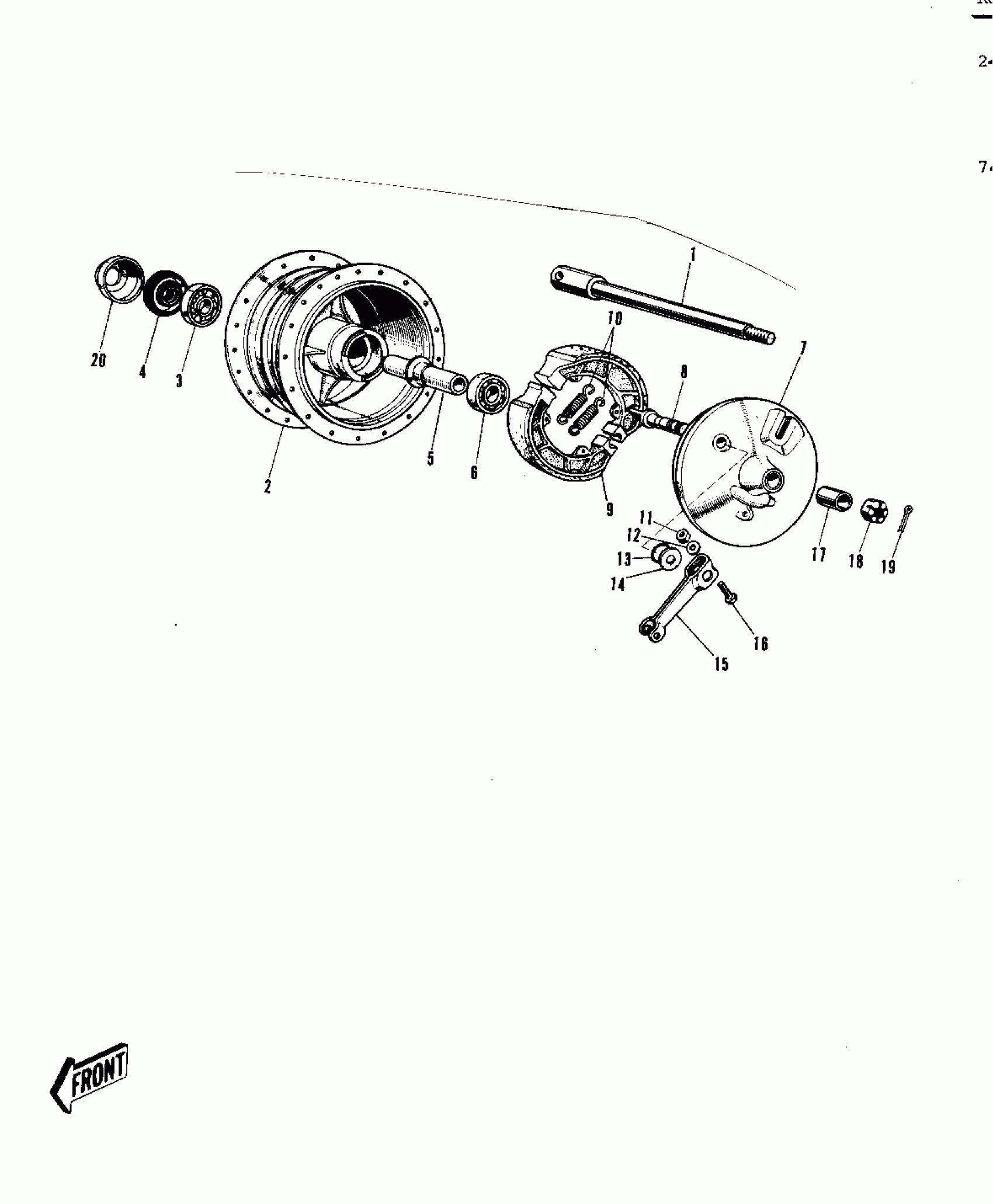

1971 Kawasaki Centurion Front Hub/brake Diagram

#

Description
Price
Status
Order Qty

1

AXLE FRONT

41068-026

Out of stock

2~6

DRUM-ASSY,FR BRK

41034-004

$81.51

In stock

3

BEARING BALL #6301

601B6301

Out of stock

4

OIL SEAL FR BRK DRUM

92050-011

Out of stock

5

$12.00

In stock

6

BEARING BALL #6301Z

601B6301Z

Out of stock

7~16

PANEL-ASY,FR BRK

41035-020

Out of stock

8

CAM-BRAKE

41050-018

$21.98

In stock

9

SHOE,BRAKE

41048-1007

$27.04

In stock

10

SPRING,BRAKE SHOE

92081-1766

Out of stock

11

NUT 6MM

311B0600

Out of stock

12

WASHER-PLAIN-SMALL,6MM

410B0600

Out of stock

13

RING-O,BRAKE CAM

92055-004

Out of stock

14

WASHER BRAKE CAM SHT

41052-001

Out of stock

15

LEVER-BRAKE CAM

41053-005

$12.24

In stock

16

BOLT-UPSET

112G0630

Out of stock

17

COLLAR FRONT HUB R.H

41069-005

Out of stock

18

NUT-CASTLE

320G1200

Out of stock

19

PIN-COTTER,3.0X25

550D3025

Out of stock

20

$9.37

In stock
