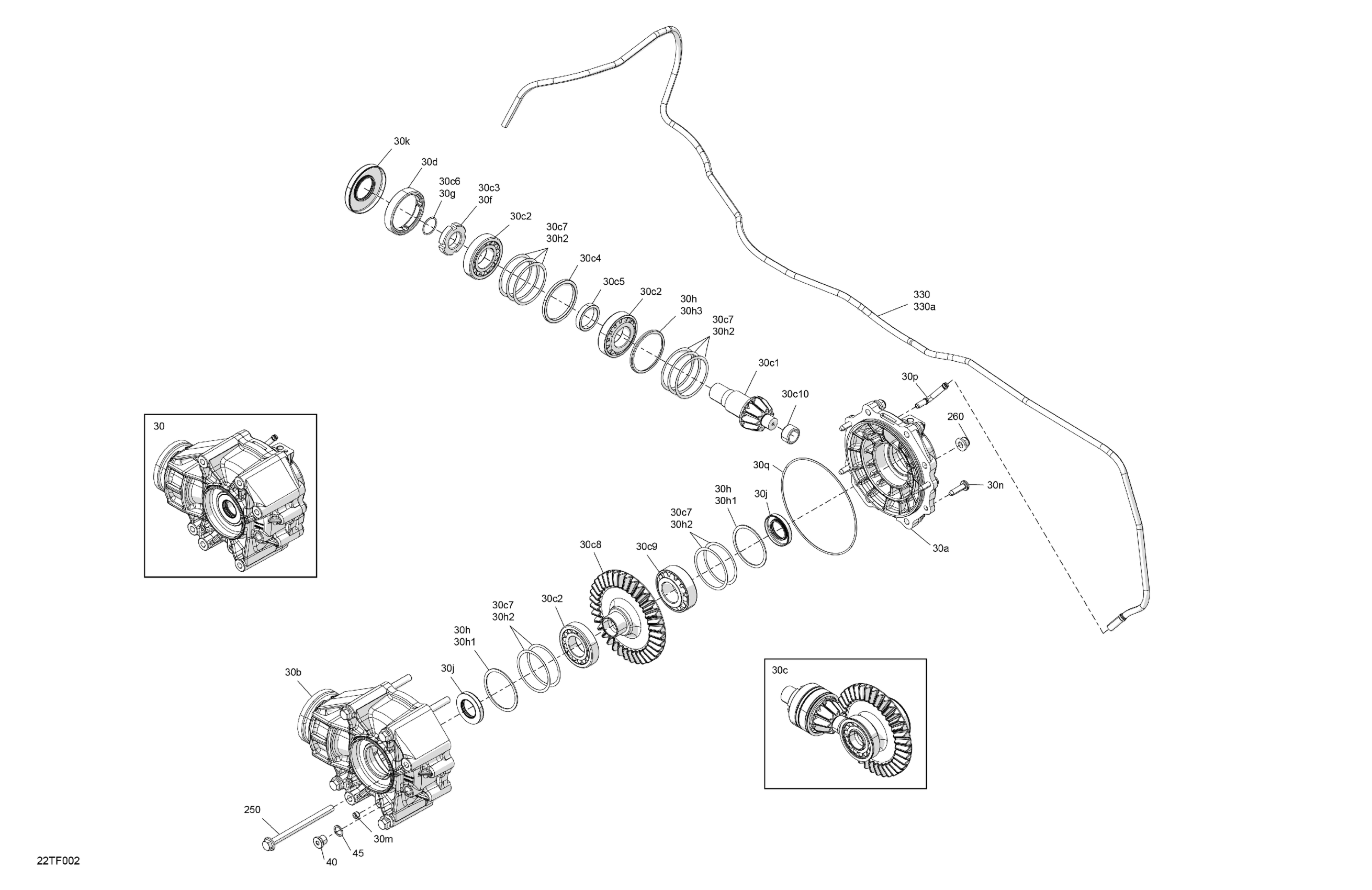

Can-Am CE - RENEGADE - 4X4 - XXC - 1000R EFI - 5VTA - Catalyst Gray - 2026 Drive - Final Drive Unit Diagram

Description

Price

Rear Final Drive Unit | Includes 30 to 30n

705503536

$1,269.20

30a

Rear Cover

705502547

$156.89

30b

Rear Pinion Cover

705502180

$281.51

30c

Gear Kit - 10/36 teeth | Built Feb 2019 and Up

703501031

$369.20

30c1

Geart 10 Teeth

705502809

Unavailable

30c2

Roller Bearing

705502174

Unavailable

30c3

Nut

705501550

$23.05

30c4

Differential Shim

705501552

Unavailable

30c5

Differential Shim

705501553

Unavailable

30c6

O-Ring

705501554

$4.62

30c7

Differential Shim

705501725

Unavailable

30c8

Gear 36 Tooth

705502810

Unavailable

30c9

Roller Bearing

705502173

Unavailable

30c10

Needle Bearing

705501760

Unavailable

30d

Nut

705501549

$32.28

30f

Nut

705501550

$23.05

30g

O-Ring

705501554

$4.62

30h

Differential Shim Kit

703500835

$46.12

30h1

Differential Shim

705501555

Unavailable

30h2

Differential Shim

705501725

Unavailable

30h3

Differential Shim

705501586

Unavailable

30j

Oil Seal

705501556

$17.66

30k

Oil Seal

705501557

$18.43

30m

Plug Drain

705501724

$5.98

30n

Screw

705502063

$3.08

30p

Breather Tube

705501584

$13.86

30q

O-Ring

705501711

$9.29

Fill Level Plug | 4X4

705500504

$7.61

Copper Washer | 4X4

705500506

$0.36

250

Hex. Flange Screw M10 X 135

250001041

$4.46

260

Hex. Flange Elastic Nut M10

233201436

$1.74

330

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$21.42

330a

Not Available As Spare Parts

XXX

Unavailable
