Description

Price

10

RH Front Brake Caliper | Includes 10 to 10d

705602188

$220.74

10a

LH Organic Brake Pad Kit

705601015

$40.74

10b

Pin Set

705601016

$9.98

10c

Bleeding Screw

705601017

$6.45

10d

Retaining Spring

705601018

$7.98

20

LH Front Brake Caliper | Includes 20 to 20d

705602189

$220.74

20a

RH Organic Brake Pad Kit

705601014

$40.74

20b

Pin Set

705601016

$9.98

20c

Bleeding Screw

705601017

$6.45

20d

Retaining Spring

705601018

$7.98

25

Hex Flange Screw M6 X 25

229000711

$2.75

30

Master Cylinder | Includes 30 to 30d

705602314

$239.97

30a

Lever Set

705601013

$59.97

30b

Clamp And Screw Kit

507032477

$23.05

30b1

Hex. Flange Screw M6 X 25

250000447

$2.06

30c

Cap Set

219800096

$23.05

30c1

Screw M4 X 20

415129356

$2.17

30d

Hex Flange Screw M6 X 25

229000711

$2.75

35

Clamp And Screw Kit

507032477

$23.05

40

Brake Line | Includes 40 to 40a

705601686

$170.74

40a

Clamp

293650256

$4.36

50

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.91

60

Washer

414920600

$1.52

65

Bleeding Screw

705601051

$11.98

85

RH Rear Hose

705601301

$41.51

85a

Clamp

293650256

$4.36

95

Tubing 10 MM 1000MM Long

219704407

$2.20

100

Rear Master Cylinder | Includes 21 to 23

705601273

$253.82

100a

Oil Tank

705601020

$36.89

100b

Oil Housing Hose

705601019

$15.35

105

Grommet

414036300

$2.22

110

Bushing

293900112

$10.14

115

Hex.Flange Screw M5 X 20

207652044

$1.56

120

Flat Washer

224060201

$1.15

125

Hex. Flange Elastic Nut M5

233251414

$1.66

139

Hex. Flange Screw M6 X 16

210261640

$1.74

140

Pop Rivet 3/16"

390406500

$0.70

150

Brake Switch

705601250

$59.97

160

RH Rear Brake Caliper | Includes 41 to 45

705602190

$219.97

160a

LH Organic Brake Pad Kit

705601015

$40.74

160b

Pin Set

705601016

$9.98

160c

Bleeding Screw

705601017

$6.45

160d

Retaining Spring

705601018

$7.98

180

Hex. Flange Screw M10 X 20

207502046

$1.74

250

Deep Black, Brake Pedal

705602163

$147.66

260

Brake Pedal Spring

705600792

$9.22

265

Hex. Flange Screw M6 X 20

207662044

$1.66

275

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

300

O-Ring

293300144

$3.98

350

Shoulder Screw M10

250000513

$5.54

351

Hex. Flange Elastic Nut M10

233201436

$1.74

360

Hex. Flange Screw M8 X 55

207685544

$4.41

370

Hex. Flange Elastic Nut M8

233281414

$1.14

375

Torx Screw M8 X 16, Scotch Grip

235381646

$2.09

400

Disc Brake

705601997

$86.12

440

Hex. Flange Screw M10 X 25

207502546

$1.74

500

Brake Pedal Bracket

705202000

$36.89

501

Carriage Bolt, M8 X 20

207782044

$1.56

502

Hex. Flange Elastic Nut M8

233281414

$1.14

510

Front Hose Guard

705602016

$4.60

524

Torx Screw M6 X 16

250000755

$0.72

525

Pop Rivet 3/16"

390402400

$0.25

530

Front Hose Bracket

705600983

$12.68

535

Panel Nut M6 X 1.0

250100198

$1.73

536

Hex. Flange Screw M6 X 30, Scotch Grip

207563044

$3.61

540

Open Clamp

518321570

$6.03

541

Pop Rivet 3/16"

390402300

$0.64

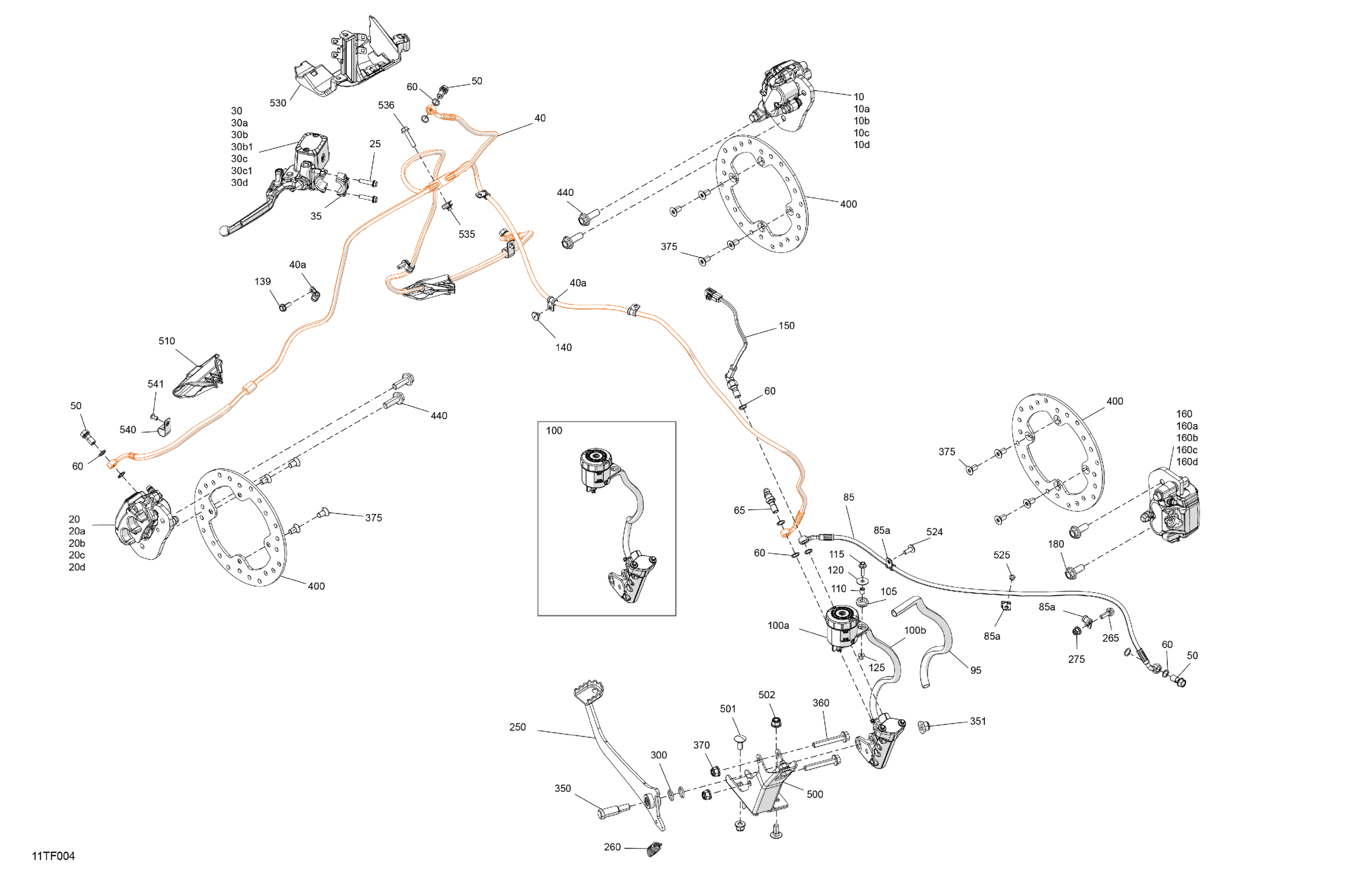

Can-Am CE - RENEGADE - 4X4 - XXC - 1000R EFI - 5VTA - Catalyst Gray - 2026 Mechanic - Brake System Diagram
