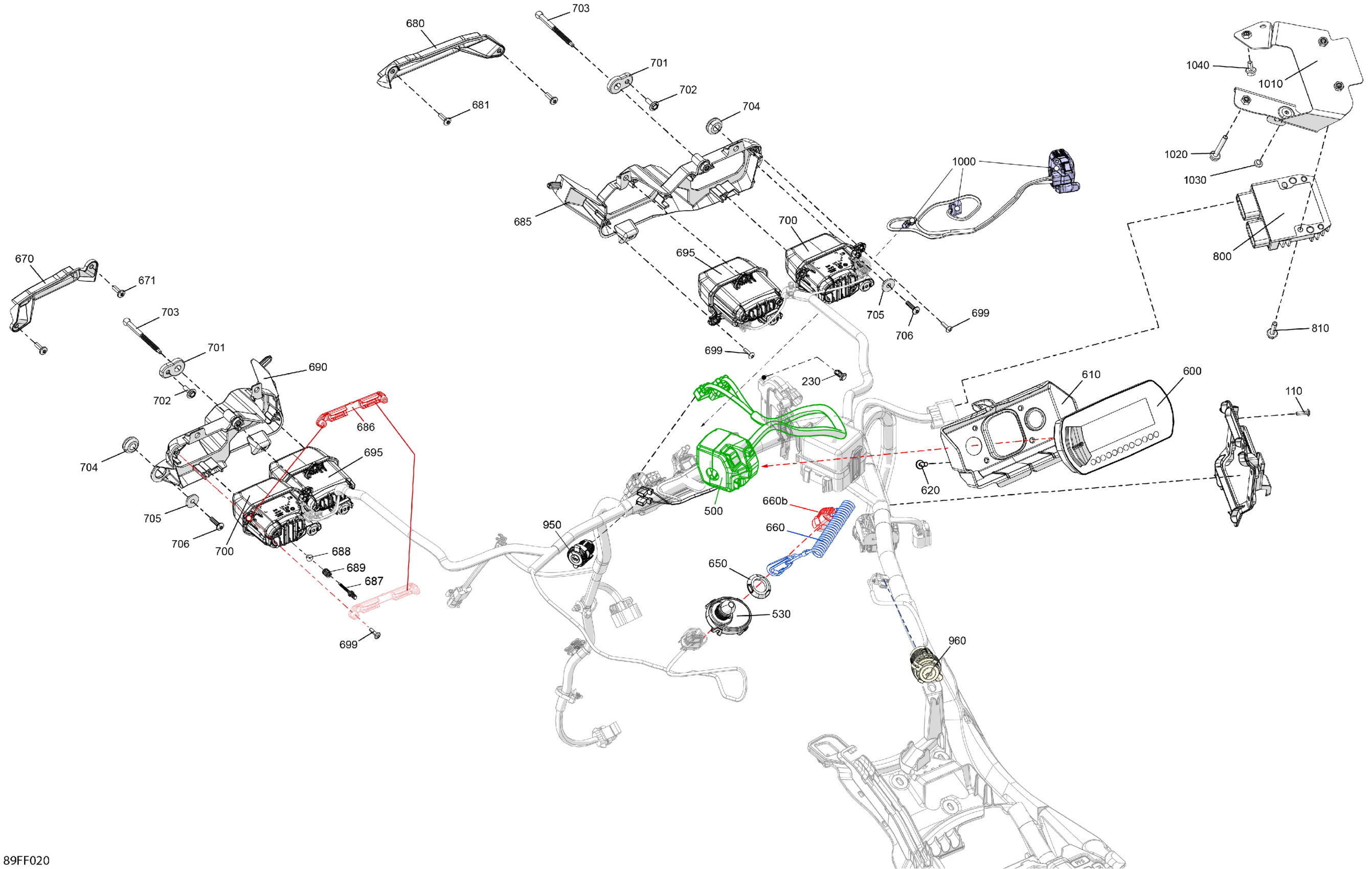

Can-Am CE - OUTLANDER - 4X4 - XMR - 700 - 1STD - Granite Grey - 2026 Electric - Front Section Diagram

Description

Price

110

Torx-Truss Pt K40 X 16

250000759

Unavailable

230

Tuflok Plastic Rivet

293150230

Unavailable

500

LH Front Switch Housing | CARB Vehicle

710006944

Unavailable

530

Terminal DESS CAN | CARB Vehicle

710008832

Unavailable

600

Multifunction Compact Gauge

710008298

Unavailable

610

Int Gauge Support

710007694

Unavailable

620

Torx Screw K50 X 16

250000720

$1.39

650

Specialized Nut

278004274

Unavailable

660

Key Dess Can-Am Ass'y | Includes 660 to 660b

710010247

Unavailable

660b

Grey Key RFID | Except Model Europe, Except T3

710004964

Unavailable

670

LH Cap

705015024

$10.22

671

Torx Screw K50 X 16

250000720

$1.39

680

RH Cap

705015025

$10.14

681

Torx Screw K50 X 16

250000720

$1.39

685

RH Front Headlight Support

710009678

Unavailable

686

Support Pivot | Not Shown

517309049

$2.66

687

Threaded Rod | Not Shown

517309133

Unavailable

688

Specialized Nut | Not Shown

517309134

$0.98

689

Compression Spring | Not Shown

517309058

$7.23

690

LH Front Headlight Support

710009677

Unavailable

695

HIgh Beam Light

710006910

Unavailable

699

Torx-Truss Pt K40 X 16

250000759

Unavailable

700

Low Beam Light

710008088

Unavailable

701

Ball Socket

293900157

Unavailable

702

Screw PT Type K-50 X 16

250000959

Unavailable

703

Ajustment Screw

710005837

Unavailable

704

Grommet

705003264

Unavailable

705

Shoulder Bushing

710004749

Unavailable

706

Torx Screw K50 X 16

250000720

$1.39

800

Voltage Regulator

710010539

Unavailable

810

Hex. Flange Screw M6 X 25

207562544

$1.39

950

DC Outlet

710001248

$31.17

960

USB Connector

710008594

Unavailable

1000

Accelerator Hand Lever

710010573

Unavailable

1010

Voltage Regulator Support

710009942

Unavailable

1020

Hex. Flange Screw M6 X 40

207664044

$2.18

1030

Rubber Stopper

293830229

Unavailable

1040

Hex. Flange Screw M6 X 12

207661244

Unavailable
