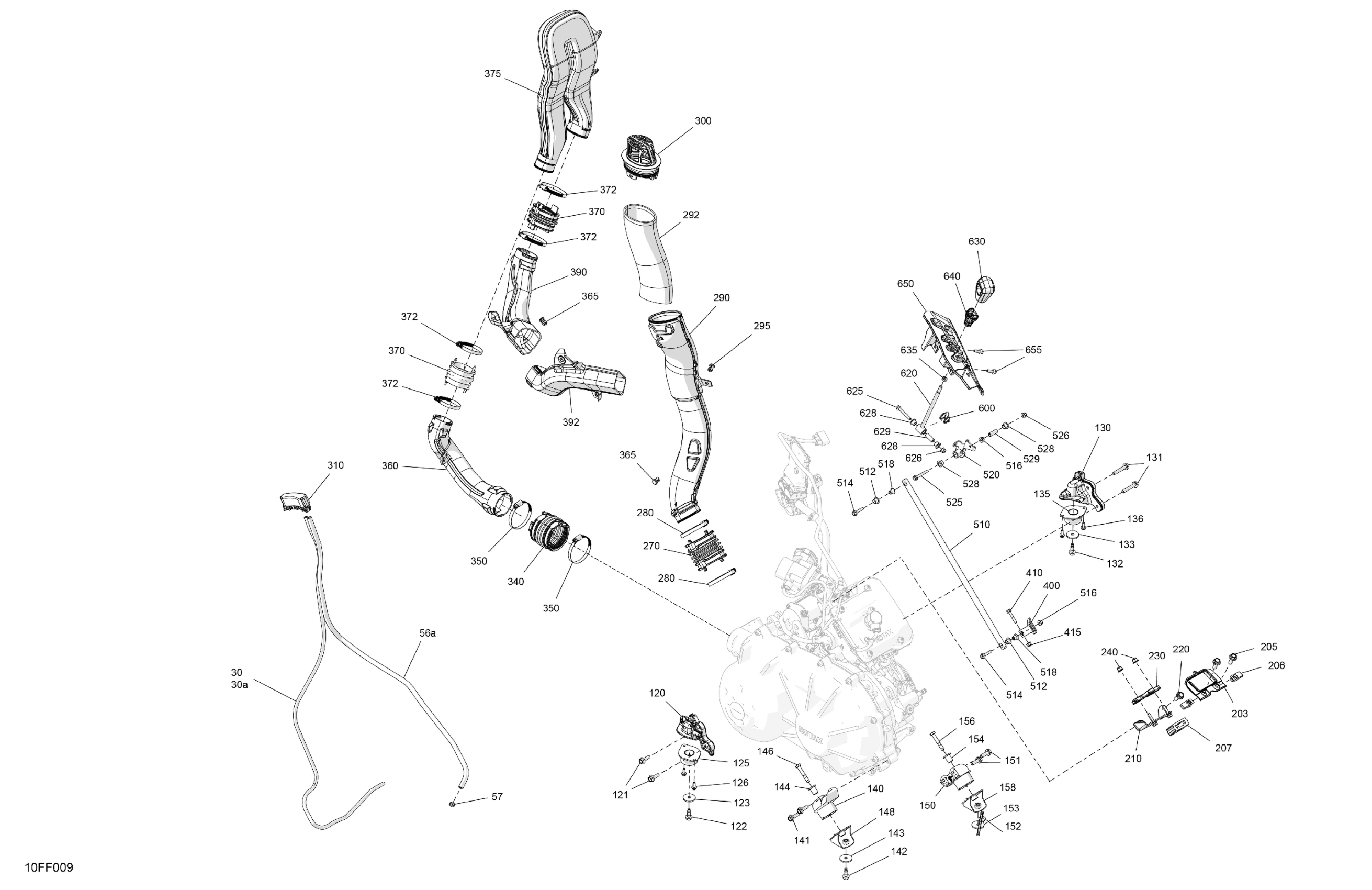

Can-Am CE - OUTLANDER - 4X4 - XMR - 700 - 1STD - Granite Grey - 2026 Engine - System Diagram

#

Description
Price

30

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

Unavailable

30a

Not Available As Spare Parts

XXX

Unavailable

56a

Hose 6.35MM ID

219704534

Unavailable

57

Spring Clamp

414415200

$0.83

120

LH Front Engine Support

707003100

Unavailable

121

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

Unavailable

122

Hex Screw M8 S.Grip

250001085

$1.37

123

Washer

250200203

Unavailable

125

Rubber Mount

707003618

Unavailable

126

Hex. Flange Screw M6 X 16

210261640

Unavailable

130

RH Front Engine Support

707003099

Unavailable

131

Hex. Flange Screw M8 X 45, Scotch Grip

207584544

$5.97

132

Hex Screw M8 S.Grip

250001085

$1.37

133

Washer

250200203

Unavailable

135

Rubber Mount

707003618

Unavailable

136

Hex. Flange Screw M6 X 16

210261640

Unavailable

140

Engine Support Ass'y

707003102

Unavailable

141

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

Unavailable

142

Hex Screw M8 S.Grip

250001085

$1.37

143

Washer

250200203

Unavailable

144

Flanged Bushing

707003104

Unavailable

146

Hex. Screw M8 X 50, Scotch Grip

207285060

Unavailable

148

Support

707003105

Unavailable

150

Engine Support Ass'y

707003102

Unavailable

151

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

Unavailable

152

Hex Screw M8 S.Grip

250001085

$1.37

153

Washer

250200203

Unavailable

154

Flanged Bushing

707003104

Unavailable

156

Hex. Screw M8 X 50, Scotch Grip

207285060

Unavailable

158

Support

707003105

Unavailable

203

Stopper

707003420

Unavailable

205

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

206

Panel Nut M8 X 1.25

250100118

Unavailable

207

Rubber Stopper

707003419

Unavailable

210

Engine Stopper

707003663

Unavailable

220

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

230

Engine Stopper

705212811

Unavailable

240

Hex. Flange Elastic Nut M6

233261466

Unavailable

270

Duct Fitting

707002414

Unavailable

280

Norma Clamp

293650096

$3.09

290

CVT Cooling Duct IN

707002859

Unavailable

292

Acoustic Insulation

706600408

$41.51

295

Tuflok Plastic Rivet

293150230

Unavailable

300

End Piece

707002886

Unavailable

310

Hose Support

707002889

Unavailable

340

Duct Fitting

707002573

Unavailable

350

Norma Clamp

293650091

Unavailable

360

CVT Cooling Duct Out

707002820

Unavailable

365

Tuflok Plastic Rivet

293150230

Unavailable

370

Duct Fitting

707002655

Unavailable

372

Norma Clamp

293650091

Unavailable

375

CVT Cooling Duct Out

707002821

Unavailable

390

CVT Cooling Duct Out

707002823

Unavailable

392

CVT Cooling Duct Out

707002824

Unavailable

400

Clutch Lever

707002505

Unavailable

410

Hex. Flange Screw M6 X 35

207663544

$0.74

415

Hex. Flange Elastic Nut M6

233261466

Unavailable

510

Link Rod

707003444

Unavailable

512

Flanged Bushing

707003072

Unavailable

514

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$1.74

516

Hex. Flange Elastic Nut M6

233261466

Unavailable

518

Flanged Bushing

707002672

Unavailable

520

Clutch Lever

707002809

Unavailable

525

Hex. Flange Screw

207664554

Unavailable

526

Hex. Flange Elastic Nut M6

233261466

Unavailable

528

Flanged Bushing

707003072

Unavailable

529

Bushing

707002803

Unavailable

600

Torsion Spring

707002804

Unavailable

620

Gearshift Lever

707002805

Unavailable

625

Hex. Flange Screw

207664554

Unavailable

626

Hex. Flange Elastic Nut M6

233261466

Unavailable

628

Flanged Bushing

707003072

Unavailable

629

Bushing

707002803

Unavailable

630

Shift Lever Tip

707003177

Unavailable

635

Hex. Jam Nut M8

232180491

Unavailable

640

Trim

707003633

Unavailable

650

Shift Lever Grille

707003665

Unavailable

655

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74
