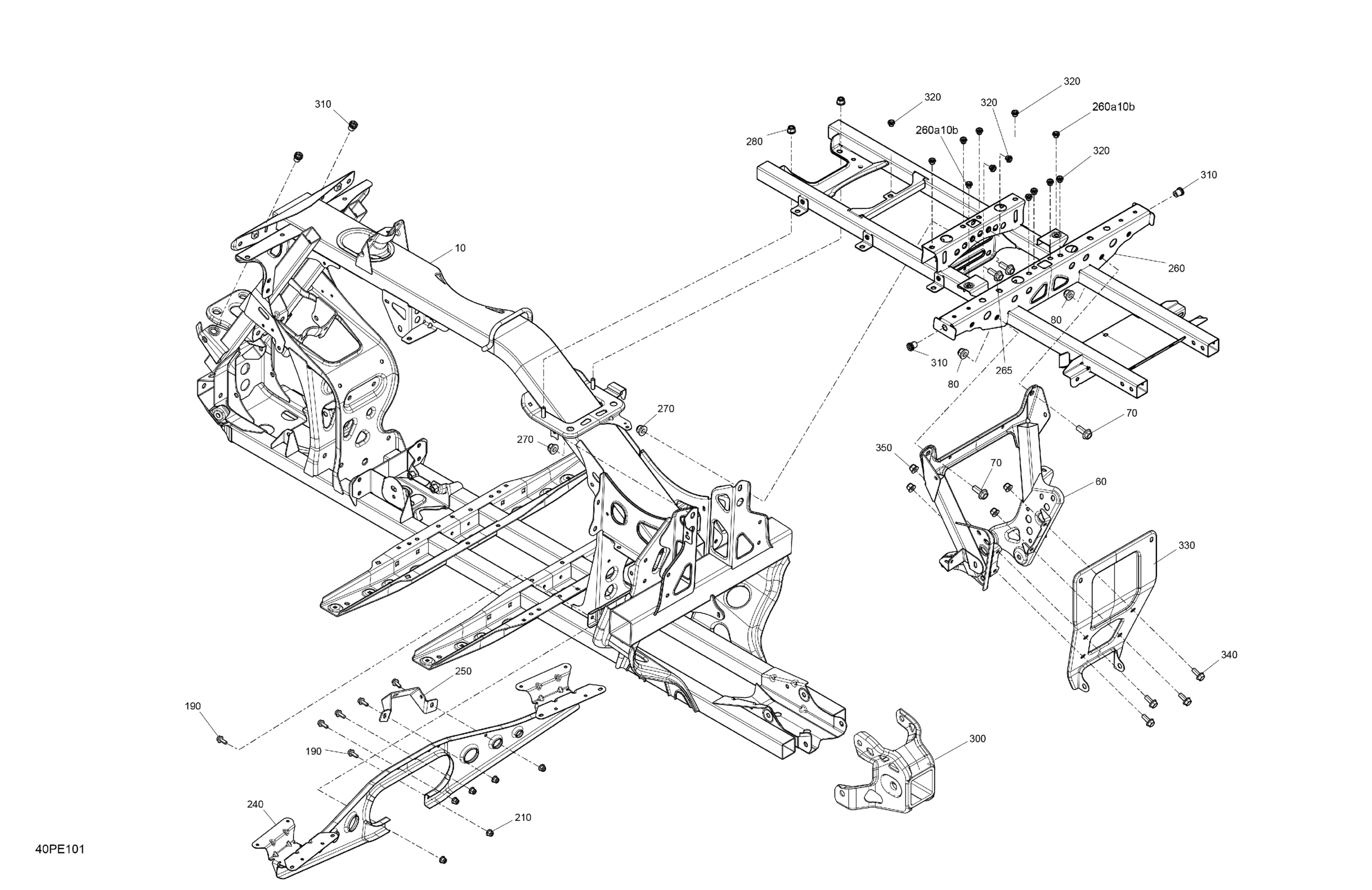

Can-Am CE - OUT-MAX - 6X6 - XU+ - 450 EFI - 5ESA - Tundra Green - 2025 Frame - System Diagram

#

Description
Price

10

Chassis

705210816

$1,049.99

60

Rear Pillar

705210818

$69.99

60a8

Steel Wire S6 .9mm HI-DEP | Not Shown

75011200

Unavailable

70

Hex. Flange Screw M10 X 25

207602546

$1.74

80

Hex. Flange Elastic Nut M10

233201436

$1.74

190

Hex. Flange Screw M6 X 16

207661644

$0.61

210

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

240

Footrest Support

705210817

$79.99

240a3

Steel Wire S6 .9mm HI-DEP | Not Shown

75011200

Unavailable

250

Master Cylinder Support

705211539

$11.49

260

Chassis Extension

705210820

$124.99

260a10b

Insert Half Hex Body M6 x 1.0

250100199

$2.54

265

Hex. Flange Screw M10 X 25

207602546

$1.74

270

Hex. Flange Elastic Nut M10

233201436

$1.74

280

Hex. Flange Elastic Nut M8

233281414

$1.14

300

Trailer Hitch

715005186

$134.99

310

Insert Half Hex Body M8 x 1.25

293450307

$2.03

320

Insert Half Hex Body M6 x 1.0

250100199

$2.54

330

Rear Support

705203541

$41.51

340

Hex. Flange Screw M8 X 20

207682046

$1.82

350

Hex. Elastic Flange Nut M8

233281416

$1.25
