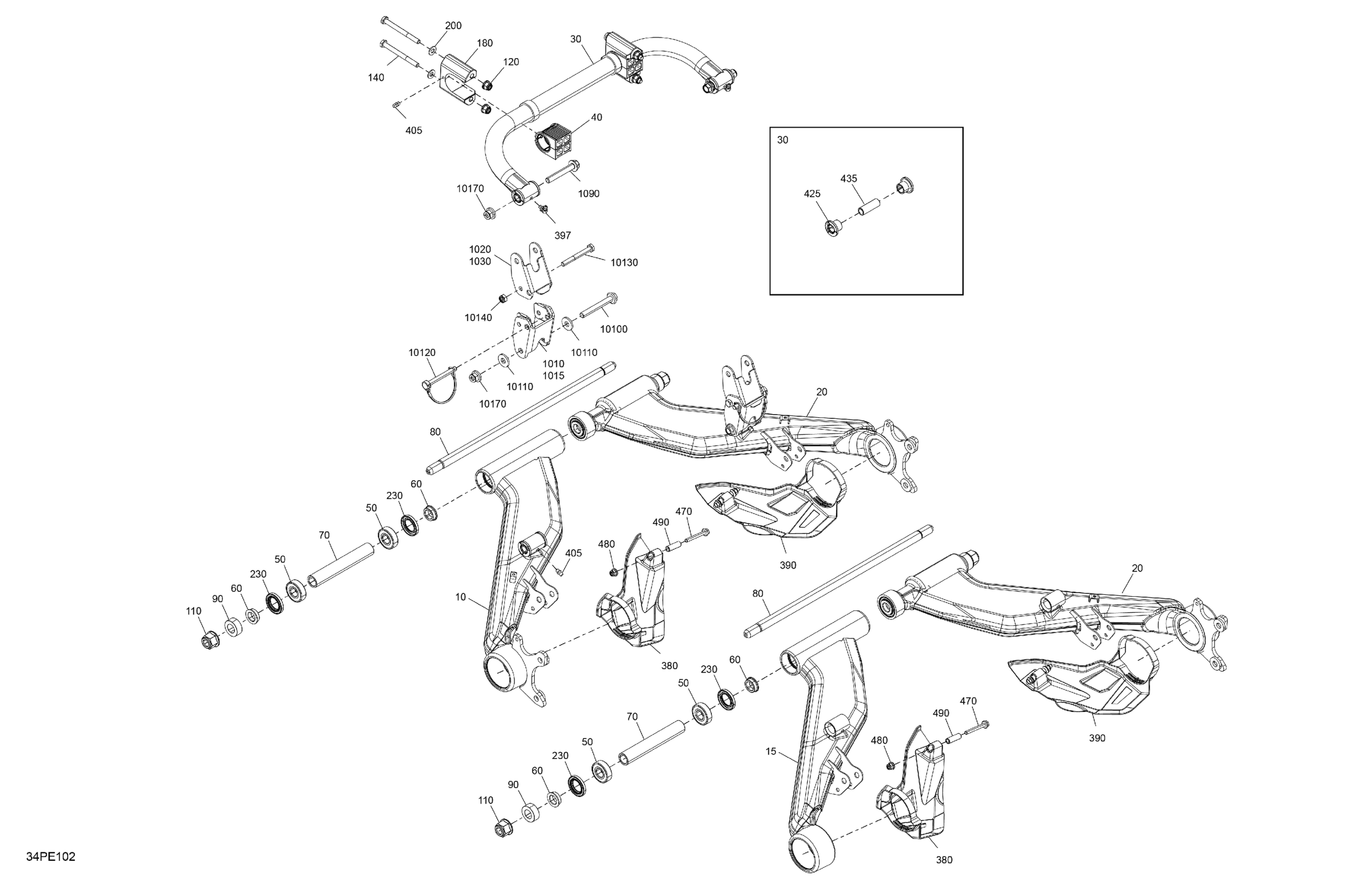

Can-Am CE - OUT-MAX - 6X6 - XU+ - 450 EFI - 5ESA - Tundra Green - 2025 Suspension - Rear Components Diagram

Description

Price

Black LH Rear Swing Arm

706003471

$290.74

Black, LH Rear Swing Arm

706001646

$290.74

Black, RH Rear Swing Arm

706004525

$290.74

Stabilizer Bar

706005447

$129.20

Stabilizer Bar Bushing

706004640

$9.22

Ball Bearing

293350145

$12.91

Spacer

706001282

$10.98

Spacer

706002258

$27.66

Axial Pivot M16

706001664

$69.20

Flat Washer M17

250200112

$6.34

110

Hex. Flange Elastic Nut M16

233211466

$1.53

120

Hex. Flange Elastic Nut M8

233281414

$1.14

140

Hex. Screw M8 X 85

250001035

$1.46

180

Bushing Holder

706001099

$31.51

200

Flat Washer 8 mm

234081410

$0.69

230

Seal

293200144

$4.60

380

LH Protector

706002482

$14.37

390

RH Protector

706002483

$14.75

397

Grease Elbow Fitting

293550085

$1.37

405

Grease Fitting

250000315

$4.82

425

Suspension Arm Bushing Kit | Includes 4

703500875

$15.35

435

Spacer

706204623

$15.35

470

Hex. Flange Screw M6 X 50

207665044

$3.38

480

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.11

490

Bushing

707001376

$4.22

1010

LH Outer Part Linkage

706003753

Unavailable

1015

RH Outer Part Linkage

706003744

Unavailable

1020

LH Inner Part Linkage

706003754

Unavailable

1030

RH Inner Linkage

706003745

$13.58

1090

Hex. Flange Screw M10 X 65

207606536

$3.61

10100

Hex. Flange Screw M10 X 75

250001038

$5.54

10110

Washer

505073634

$2.31

10120

Pin Onto The Shaft

706001602

$14.02

10130

Hex. Screw M8 X 70

207087044

$1.73

10140

Hex. Elastic Stop Nut M8

232581414

$0.47

10170

Hex. Flange Elastic Nut M10

233201436

$1.74
