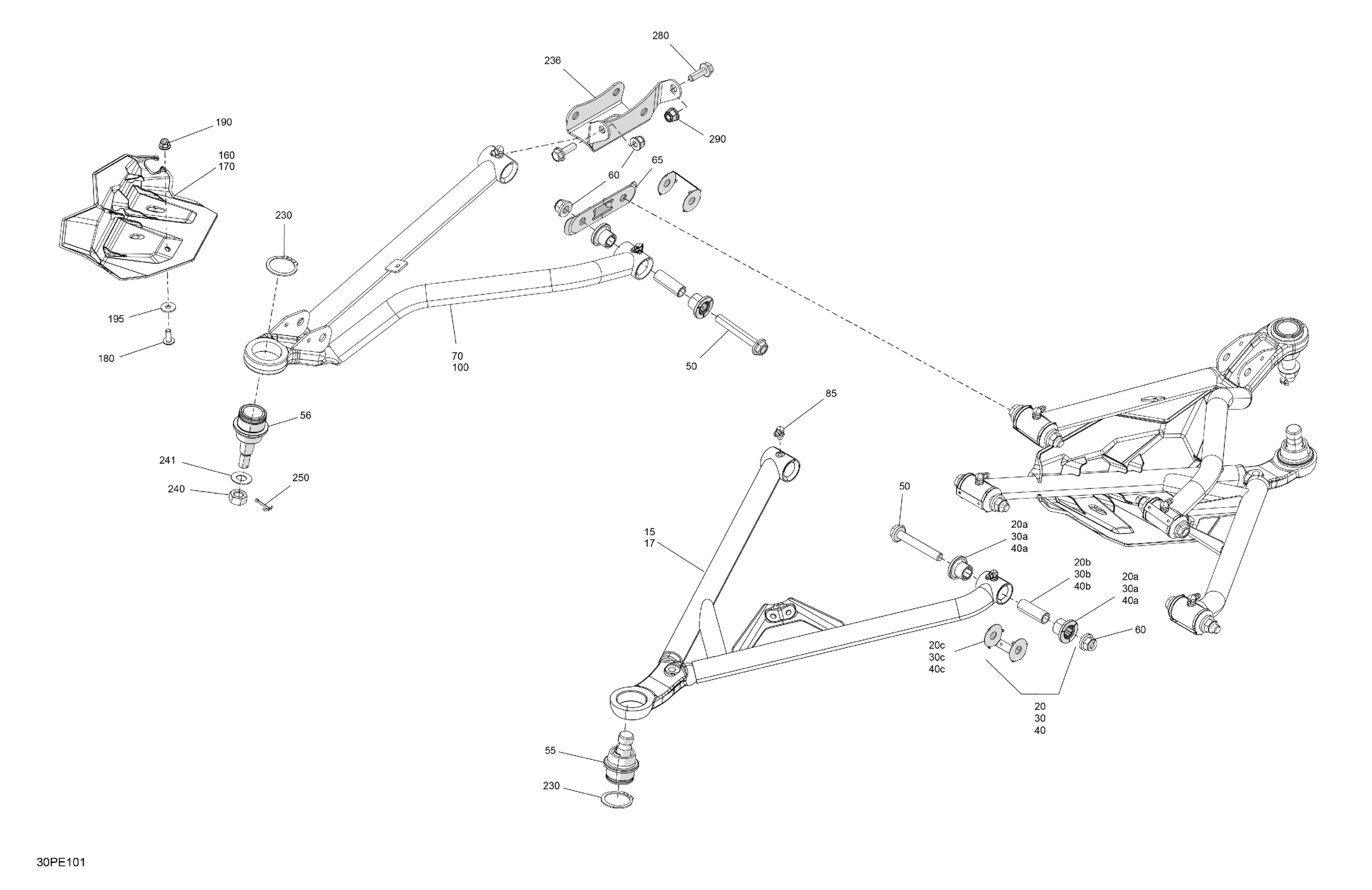

Can-Am CE - OUT-MAX - 6X6 - XU+ - 450 EFI - 5ESA - Tundra Green - 2025 Suspension - Front Components Diagram

#

Description
Price

15

LH Lower Suspension Arm

706204639

$156.89

17

RH Lower Suspension Arm

706204640

$156.89

20

Suspension Arm Bushing Kit | Includes 4

703500875

$15.35

20a

Suspension Arm Bushing Kit | Includes 4

703500875

$15.35

20b

Spacer

706204623

$15.35

20c

Suspension Arm Bushing Kit | Includes 4

703500875

$15.35

30

Suspension Arm Bushing Kit | Includes 4

703500875

$15.35

30a

Suspension Arm Bushing Kit | Includes 4

703500875

$15.35

30b

Spacer

706204623

$15.35

30c

Suspension Arm Bushing Kit | Includes 4

703500875

$15.35

40

Suspension Arm Bushing Kit | Includes 4

703500875

$15.35

40a

Suspension Arm Bushing Kit | Includes 4

703500875

$15.35

40b

Spacer

706204623

$15.35

40c

Suspension Arm Bushing Kit | Includes 4

703500875

$15.35

50

Hex. Flange Screw M10 X 70

207607046

$2.91

55

Ball Joint

706202045

$35.35

56

Ball Joint

706202044

$35.35

60

Hex. Flange Elastic Nut M10

233201436

$1.74

65

Front Suspension Cross Member

706205645

$4.91

70

RH Upper Suspension Arm

706204642

$156.89

85

Grease Elbow Fitting

293550085

$1.37

100

LH Upper Suspension Arm

706204641

$156.89

160

LH Joint Protector

706202808

$9.29

170

RH Joint Protector

706202809

$9.29

180

Torx Screw M6 X 16

250000755

$0.72

190

Hex. Flange Elastic Nut M6

233261494

$1.26

195

Stainless Steel Flat Washer

234062670

$1.74

230

Circlip

293370035

$2.55

236

Upper Front Holder

705203247

$14.37

240

Hex Nut M12

250100239

$1.64

241

Hardened Washer

706200281

$2.34

250

Cotter Pin

211400017

$0.25

280

Hex. Flange Screw M8 X 25

207682544

$0.90

290

Hex. Flange Elastic Nut M8

233281414

$1.14
