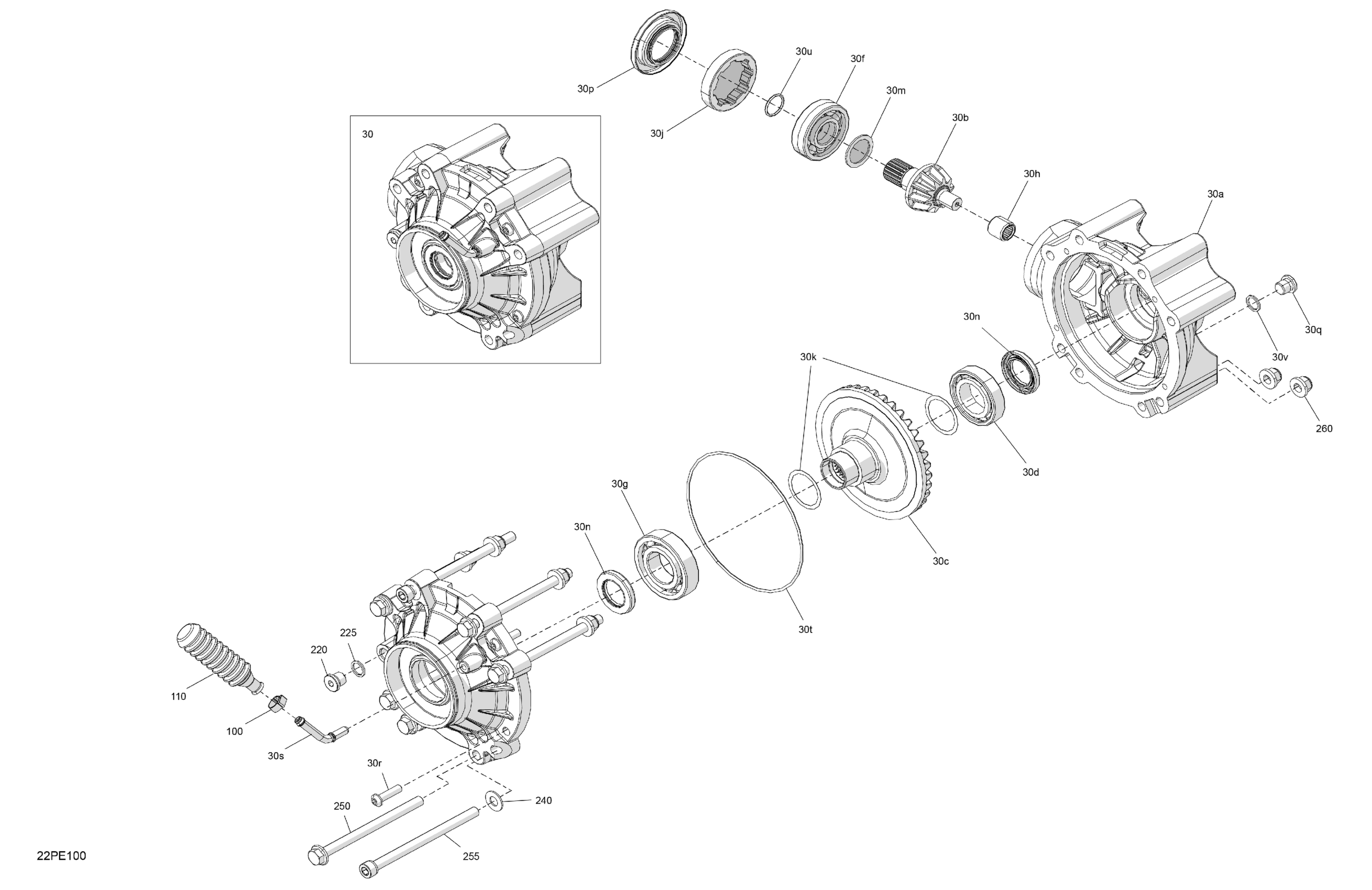

Can-Am CE - OUT-MAX - 6X6 - XU+ - 450 EFI - 5ESA - Tundra Green - 2025 Drive - Final Drive Unit Diagram

Description

Price

Rear Drive Unit Ass'y | Includes 1000 to 1000u

705502370

$913.82

30a

Rear Cover

705502389

$175.35

30b

Pinion 10 Teeth

705502823

$207.66

30c

Gear 36 Teeth

705502822

$383.05

30d

Ball Bearing

705502736

$30.74

30f

Ball Bearing

705502737

$46.12

30g

Ball Bearing

705502738

$56.89

30h

Needle Bearing

705502058

$47.66

30j

Nut | 4X4

705401603

$36.89

30k

Differential Shim 0.02 mm

705502060

$13.83

30m

Pinion Gear Shim 1.67 mm

705502061

$16.12

30n

Oil Seal

705501996

$20.74

30p

Oil Seal

705402405

$27.66

30q

Fill Level Plug | 4X4

705500504

$7.61

30r

SOCKET HEAD SCREW M8 X 30 - Call your local BRP dealership

205483046

$1.89

30s

Breather Tube

705501584

$13.86

30t

Seal

705502064

$8.31

30u

O-Ring

705502065

$5.98

30v

Copper Washer | 4X4

705500506

$0.36

100

Oetiker Clamp

293650042

$1.40

110

Rubber Bellow | 4X4

705400552

$6.02

220

Fill Level Plug | 4X4

705500504

$7.61

225

Copper Washer | 4X4

705500506

$0.36

240

Washer

506152582

$4.42

250

Hex. Flange Screw M10 X 135

250001041

$4.46

255

Screw Socket HD M10 X 140

250001094

Unavailable

260

Hex. Flange Elastic Nut M10

233201436

$1.74
