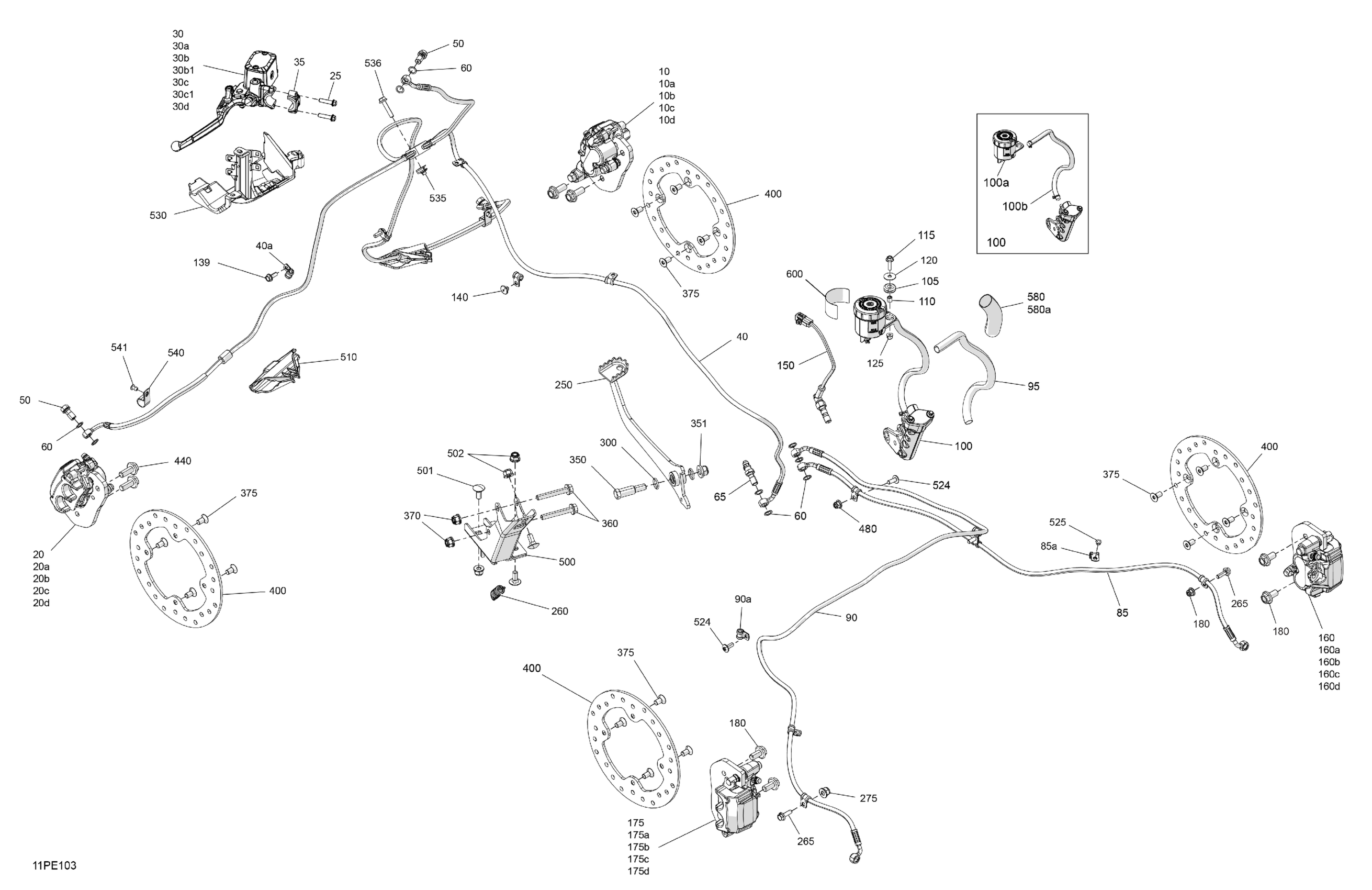

Can-Am CE - OUT-MAX - 6X6 - XU+ - 450 EFI - 5ESA - Tundra Green - 2025 Mechanic - Brake System Diagram

#

Description
Price

10

RH Front Brake Caliper | Includes 10 to 10d

705602188

$214.15

10a

LH Organic Brake Pad Kit

705601015

$39.52

10b

Pin Set

705601016

$9.26

10c

Bleeding Screw

705601017

$5.90

10d

Retaining Spring

705601018

$7.55

20

LH Front Brake Caliper | Includes 20 to 20d

705602189

$214.15

20a

RH Organic Brake Pad Kit

705601014

$39.52

20b

Pin Set

705601016

$9.26

20c

Bleeding Screw

705601017

$5.90

20d

Retaining Spring

705601018

$7.55

25

Hex Flange Screw M6 X 25

229000711

$1.96

30

Master Cylinder | Includes 30 to 30d

705602314

$228.33

30a

Lever Set

705601013

$57.43

30b

Clamp And Screw Kit

507032477

$22.36

30b1

Hex. Flange Screw M6 X 25

250000447

$2.00

30c

Cap Set

219800096

$20.12

30c1

Screw M4 X 20

415129356

$2.10

30d

Hex Flange Screw M6 X 25

229000711

$1.96

35

Clamp And Screw Kit

507032477

$22.36

40

Front Hose

705601524

$123.85

40a

Clamp

293650256

$5.00

50

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.90

60

Washer

414920600

$1.75

65

Bleeding Screw

705601051

$10.97

85

RH Rear Hose

705601324

$46.24

85a

Clamp

293650256

$5.00

90

LH Rear Brake Line | Includes 90 to 90a

705601556

$64.15

90a

Clamp

293650256

$5.00

95

Tubing 10 MM 1000MM Long

219704407

$2.52

100

Rear Master Cylinder Ass'y | Includes 28 to 30

705601776

$206.69

100a

Oil Tank

705601020

$35.79

100b

Oil Housing Hose

705601019

$14.43

105

Grommet

414036300

$2.55

110

Bushing

293900112

$9.30

115

Hex.Flange Screw M5 X 20

207652044

$1.79

120

Flat Washer

224060201

$1.12

125

Hex. Flange Elastic Nut M5

233251414

$1.91

139

Hex. Flange Screw M6 X 16

210261640

$2.00

140

Pop Rivet 3/16"

390406500

$0.81

150

Brake Switch

705601251

$47.73

160

RH Rear Brake Caliper | Includes 41 to 45

705602190

$213.40

160a

LH Organic Brake Pad Kit

705601015

$39.52

160b

Pin Set

705601016

$9.26

160c

Bleeding Screw

705601017

$5.90

160d

Retaining Spring

705601018

$7.55

175

LH Rear Brake Caliper | Includes 175 to 175d

705602191

$213.40

175a

RH Organic Brake Pad Kit

705601014

$39.52

175b

Pin Set

705601016

$9.26

175c

Bleeding Screw

705601017

$5.90

175d

Retaining Spring

705601018

$7.55

180

Hex. Flange Screw M10 X 20

207502046

$2.00

250

Deep Black, Brake Pedal

705602163

$138.03

260

Brake Pedal Spring

705600792

$8.42

265

Hex. Flange Screw M6 X 20

207662044

$1.91

275

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

300

O-Ring

293300144

$3.79

350

Shoulder Screw M10

250000513

$6.36

351

Hex. Flange Elastic Nut M10

233201436

$2.00

360

Hex. Flange Screw M8 X 55

207685544

$5.06

370

Hex. Flange Elastic Nut M8

233281414

$1.31

375

Torx Screw M8 X 16, Scotch Grip

235381646

$2.40

400

Disc Brake

705601997

$83.55

440

Hex. Flange Screw M10 X 25

207502546

$2.00

480

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.27

500

Brake Pedal Bracket

705202000

$35.04

501

Carriage Bolt, M8 X 20

207782044

$1.79

502

Hex. Flange Elastic Nut M8

233281414

$1.31

510

Front Hose Guard

705602016

$4.19

524

Torx Screw M6 X 16

250000755

$0.82

525

Pop Rivet 3/16"

390402400

$0.28

530

Front Hose Bracket

705600983

$11.81

535

Panel Nut M6 X 1.0

250100198

$1.99

536

Hex. Flange Screw M6 X 30, Scotch Grip

207563044

$4.15

540

Open Clamp

518321570

$5.85

541

Pop Rivet 3/16"

390402300

$0.73

580

Tubing 25 MM 1000MM Long

219704402

$14.57

580a

Tubing 25 MM 1000MM Long

219704402

$14.57

600

Heat Shield

705601311

$3.81
