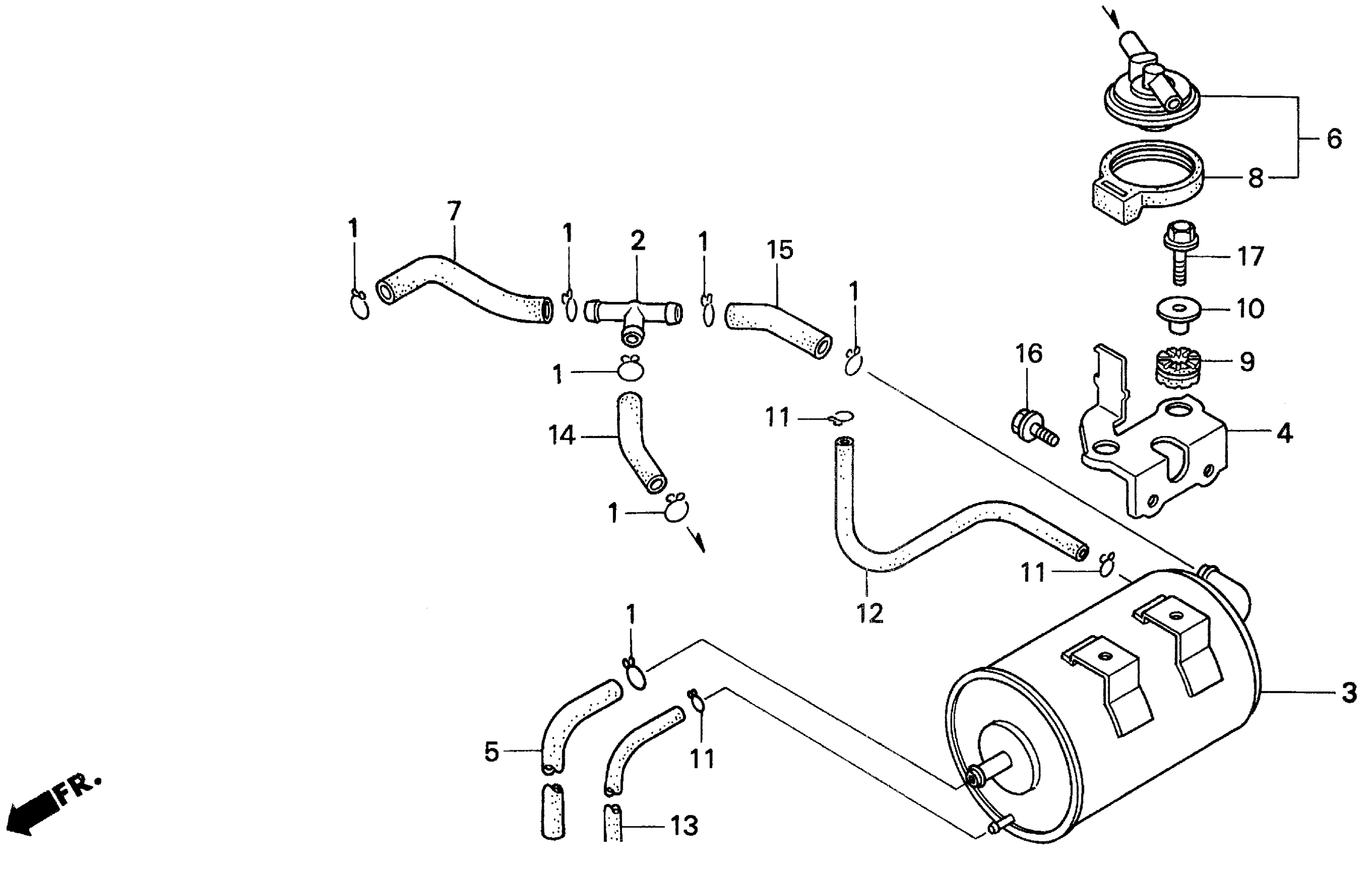

Honda CBR900RRAC (94) MOTORCYCLE, JPN, VIN# JH2SC281-RM200001 TO JH2SC281-RM200683 CANISTER (AC) Diagram

CLIP, TUBE (P.C.V.)

15772-MB3-000

Unavailable

JOINT (THREE-WAY)

17303-MJ1-790

Unavailable

CANISTER, EVAPORATIVE EMISSION (HITACHI) | Use up to Frame SN RM200254

17410-MW0-751

Unavailable

CANISTER, EVAPORATIVE EMISSION | Use from Frame SN RM200255

17410-MW0-752

Unavailable

STAY, CANISTER

17411-MW0-750

Unavailable

TUBE, FRESH AIR

17412-MW0-750

Unavailable

VALVE ASSY., PURGE CONTROL

17440-KAF-750

Unavailable

TUBE A, AIR VENT CONTROL VALVE

17441-MW0-750

Unavailable

RUBBER, PURGE CONTROL VALVE MOUNTING

17451-ME5-760

$12.48

RUBBER, TAILLIGHT MOUNTING

84703-425-000

$4.69

COLLAR (6.2X12)

90501-425-000

$6.20

CLIP, TUBE (B8)

95002-02080

$1.69

BULK HOSE, VACUUM (4.5X1000) (4.5X240)

95005-45001-20M

$37.26

BULK HOSE, VACUUM (4.5X1000) (4.5X370)

95005-45001-20M

$37.26

BULK HOSE, VACUUM (8X1000) (8X65)

95005-80001-20M

Unavailable

BULK HOSE, VACUUM (8X1000) (8X90)

95005-80001-20M

Unavailable

BOLT, FLANGE (6X12)

95701-06012-00

$2.12

BOLT, FLANGE (6X22)

95701-06022-00

$1.88
