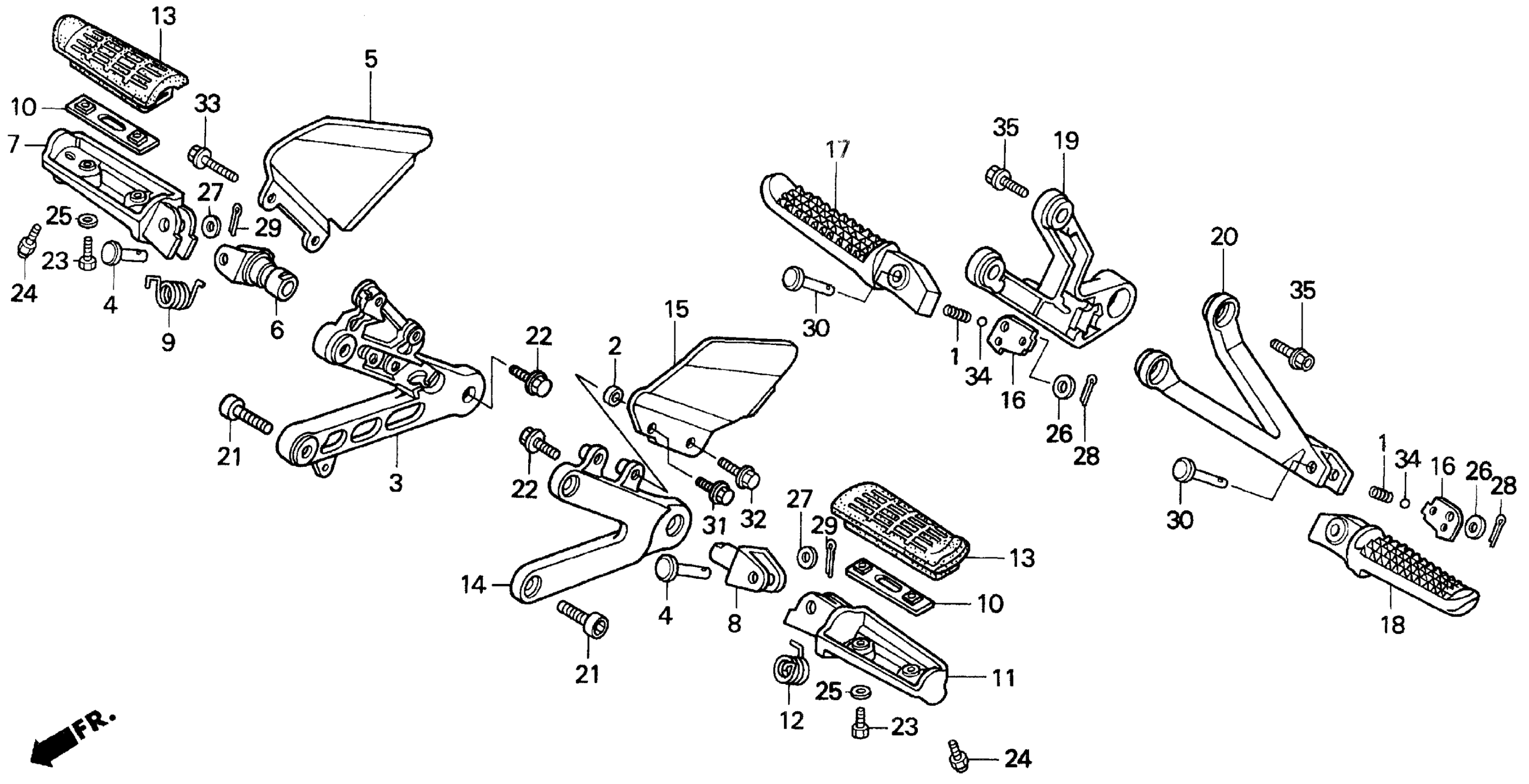

Honda CBR900RRA (94) MOTORCYCLE, JPN, VIN# JH2SC280-RM200001 TO JH2SC280-RM203322 STEP 93-94 Diagram

#

Description
Price

1

SPRING, KICK STARTER STOPPER

28333-300-000

$2.80

2

COLLAR, CABLE CLAMP

44835-167-830

$3.00

3

HOLDER, R. STEP

50600-MW0-000

Unavailable

4

PIN, MAIN STEP BAR JOINT

50603-GS9-010

$5.07

5

GUARD, R. STEP

50607-KY2-710

Unavailable

6

BRACKET, MAIN STEP This part replaces 50612-KV3-770.

50612-MAS-000

Unavailable

6

BRACKET, MAIN STEP

50612-MAS-000

Unavailable

7

ARM, R. STEP (COO) This part replaces 50612-MM5-000.

50612-KYJ-305

$23.26

8

BRACKET, MAIN STEP

50612-MW0-000

Unavailable

9

SPRING, R. STEP RETURN

50617-445-840

$5.07

10

PLATE, STEP SETTING

50619-MM5-000

$7.37

11

ARM, L. STEP (COO) This part replaces 50642-MM5-000.

50642-KYJ-305

$23.26

12

SPRING, L. STEP RETURN

50644-445-840

$5.07

13

RUBBER, STEP

50661-MV9-000

$12.88

14

HOLDER, L. STEP

50700-MV4-000

Unavailable

15

GUARD, L. STEP

50707-KY2-710

Unavailable

16

PLATE, PILLION STEP CLICK

50718-KT7-761

$3.73

17

BAR, R. PILLION STEP (COO) This part replaces 50720-KT7-760.

50720-K26-305

$40.37

17

BAR, R. PILLION STEP (COO) This part replaces 50720-KT7-761.

50720-K26-305

$40.37

18

BAR, L. PILLION STEP (COO) This part replaces 50730-KT7-760.

50730-K26-305

$40.37

18

BAR, L. PILLION STEP (COO) This part replaces 50730-KT7-761.

50730-K26-305

$40.37

19

HOLDER, R. PILLION STEP

50750-MW0-000

Unavailable

20

HOLDER, L. PILLION STEP

50760-MW0-000

Unavailable

21

BOLT, SOCKET (8X25)

90102-MN8-700

$3.90

22

BOLT, FLANGE (10X20)

90102-MW0-000

Unavailable

23

BOLT, MAIN STEP RUBBER SETTING

90115-MV9-000

$3.42

24

BOLT, CAP (8X10)

92501-08010-0A

$3.68

25

WASHER, PLAIN (5MM)

94101-05000

$0.90

26

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

26

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

26

WASHER, PLAIN (6MM)

94101-06800

Unavailable

27

WASHER, PLAIN (8MM)

94102-08000

$0.86

28

PIN, SPLIT (1.6X12)

94201-16120

$0.94

29

PIN, SPLIT (2.0X15)

94201-20150

$0.94

30

PIN C, PILLION FOOTPEG

95015-83000

$2.19

31

BOLT, FLANGE (6X16)

96001-06016-00

$0.96

32

BOLT, FLANGE (6X22)

96001-06022-00

$1.13

33

BOLT, FLANGE (6X28)

96001-06028-00

Unavailable

34

BALL, STEEL (#8) (1/4)

96211-08000

$1.13

35

BOLT, FLANGE (8X28)

96400-08028-00

$1.68
