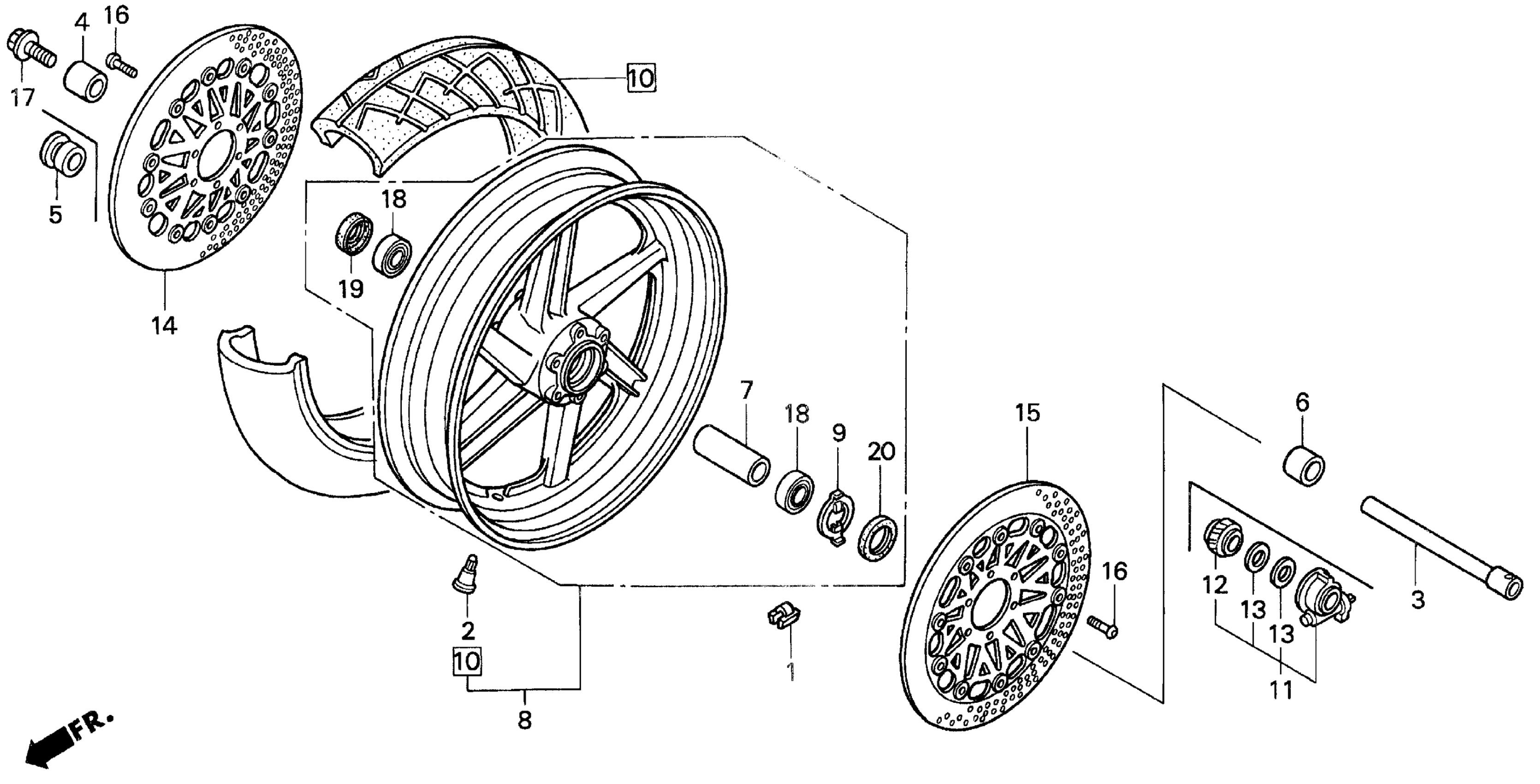

Honda CBR900RRA (94) MOTORCYCLE, JPN, VIN# JH2SC280-RM200001 TO JH2SC280-RM203322 FRONT WHEEL 93-95 Diagram

#

Description
Price

1

WEIGHT, BALANCE (10G) This part replaces 42704-MB0-000.

42704-MCF-D60

$12.23

1

WEIGHT, BALANCE (10G)

42704-MCF-D60

$12.23

1

WEIGHT, BALANCE (20G) This part replaces 42705-MB0-000.

42705-MCF-D60

$14.86

1

WEIGHT, BALANCE (20G)

42705-MCF-D60

$14.86

1

WEIGHT, BALANCE (30G) This part replaces 42706-MB0-000.

42706-MCF-D60

$13.90

1

WEIGHT, BALANCE (30G)

42706-MCF-D60

$13.90

2

VALVE, RIM (BS)

42753-ML7-003

$12.23

3

AXLE, FR. WHEEL

44301-MR8-900

Unavailable

3

AXLE, FR. WHEEL This part replaces 44301-MW0-000.

44301-MR8-900

Unavailable

5

COLLAR, FR. WHEEL SIDE This part replaces 44311-ML7-000.

44311-MM8-000

$18.92

5

COLLAR, FR. WHEEL SIDE

44311-MM8-000

$18.92

7

COLLAR, FR. AXLE DISTANCE

44620-MW5-000

Unavailable

8

WHEEL SUB-ASSY., FR. *NH1* (BLACK)

44650-MW0-405ZA

Unavailable

9

RETAINER, GEAR BOX

44680-ML7-000

$5.21

10

TIRE ASSY., FR. (130/70ZR16) (BS) (NOT AVAILABLE) This part replaces 44710-MW0-003.

44710-MAE-003

Unavailable

11

BOX ASSY., SPEEDOMETER GEAR

44800-ML7-691

Unavailable

12

GEAR, SPEEDOMETER

44806-ML7-691

Unavailable

13

WASHER, SPEEDOMETER GEAR

44809-ML7-003

$3.07

14

DISK, FR. BRAKE

45120-MW0-003

Unavailable

15

DISK, FR. BRAKE

45120-MW0-003

Unavailable

16

BOLT, DISK (6X17)

90105-KN5-000

$3.87

17

BOLT, FR. AXLE

90305-ML7-000

$9.41

18

BEARING, RADIAL BALL (6004UU)

91054-MAM-003

$30.84

18

BEARING, RADIAL BALL (6004UU) This part replaces 91054-MN8-741.

91054-MAM-003

$30.84

19

DUST SEAL (28X42X8) (NOK) This part replaces 91257-KA3-712.

91257-MAY-003

$8.80

19

DUST SEAL (28X42X8) (NOK) This part replaces 91257-KA3-711.

91257-MAY-003

$8.80

19

DUST SEAL (28X42X8) (NOK)

91257-MAY-003

$8.80

20

DUST SEAL (45X55X5) (ARAI)

91258-ML7-003

$8.31
