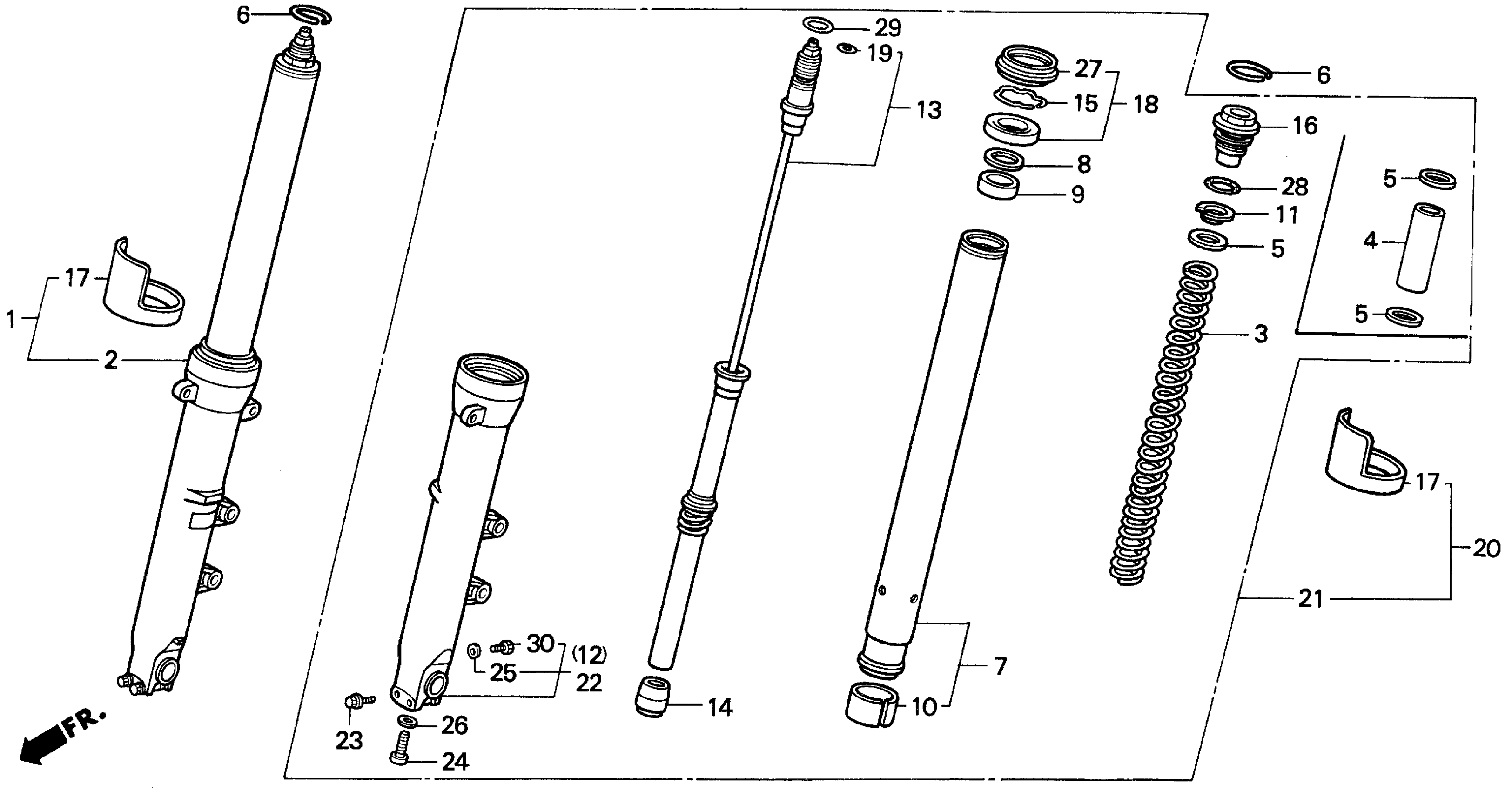

Honda CBR600F2A (94) SUPER SPORT, JPN, VIN# JH2PC250-RM300001 TO JH2PC250-RM308445 F3 FRONT FORK 95-96 Diagram

Description

Price

FORK ASSY., R. FR. (SHOWA) (NOT AVAILABLE)

51400-MV9-931

Unavailable

SPRING, FR. FORK

51401-MV9-931

Unavailable

SEAT, SPRING (SHOWA)

51403-KF0-003

$4.77

RING, STOPPER

51405-MB4-003

$6.24

PIPE, FR. FORK

51410-MV9-931

Unavailable

RING, BACK-UP (SHOWA)

51412-MB4-003

$9.26

BUSH, GUIDE (SHOWA)

51414-KCR-003

$13.44

BUSH, GUIDE (SHOWA) This part replaces 51414-MN5-003.

51414-KCR-003

$13.44

BUSH, SLIDER (SHOWA) This part replaces 51415-MM8-003.

51415-KCR-003

$12.14

SEAT, SPRING

51415-MS2-003

$12.63

CASE, R. (LOWER)

51420-MV9-931

Unavailable

DAMPER, FR.

51430-MV9-931

Unavailable

PIECE, OIL LOCK

51432-MS2-003

$30.83

RING, OIL SEAL STOPPER (SHOWA)

51447-KA4-711

$4.49

BOLT, FR. FORK

51454-KV3-781

$56.75

SEAL SET, FR. FORK

51490-MN8-305

$33.67

LABEL

51496-MR7-003

$3.15

FORK ASSY., L. FR. (SHOWA) (NOT AVAILABLE)

51500-MV9-931

Unavailable

CASE, L. (LOWER)

51520-MV9-931

Unavailable

BOLT, FLANGE (8X45)

90109-MR7-000

$4.91

BOLT, SOCKET (8X27)

90116-383-721

$5.10

LABEL

51496-MR7-003

$3.15

GASKET, FR. FORK DRAIN PETCOCK

90543-273-000

$2.38

WASHER, SPECIAL (8MM)

90544-283-000

$2.77

DUST SEAL

91254-MM8-003

$17.17

O-RING (33.2X2.4)

91356-KF0-003

$3.74

BOLT, HEX. (6X8)

92101-06008-0A

$1.43
