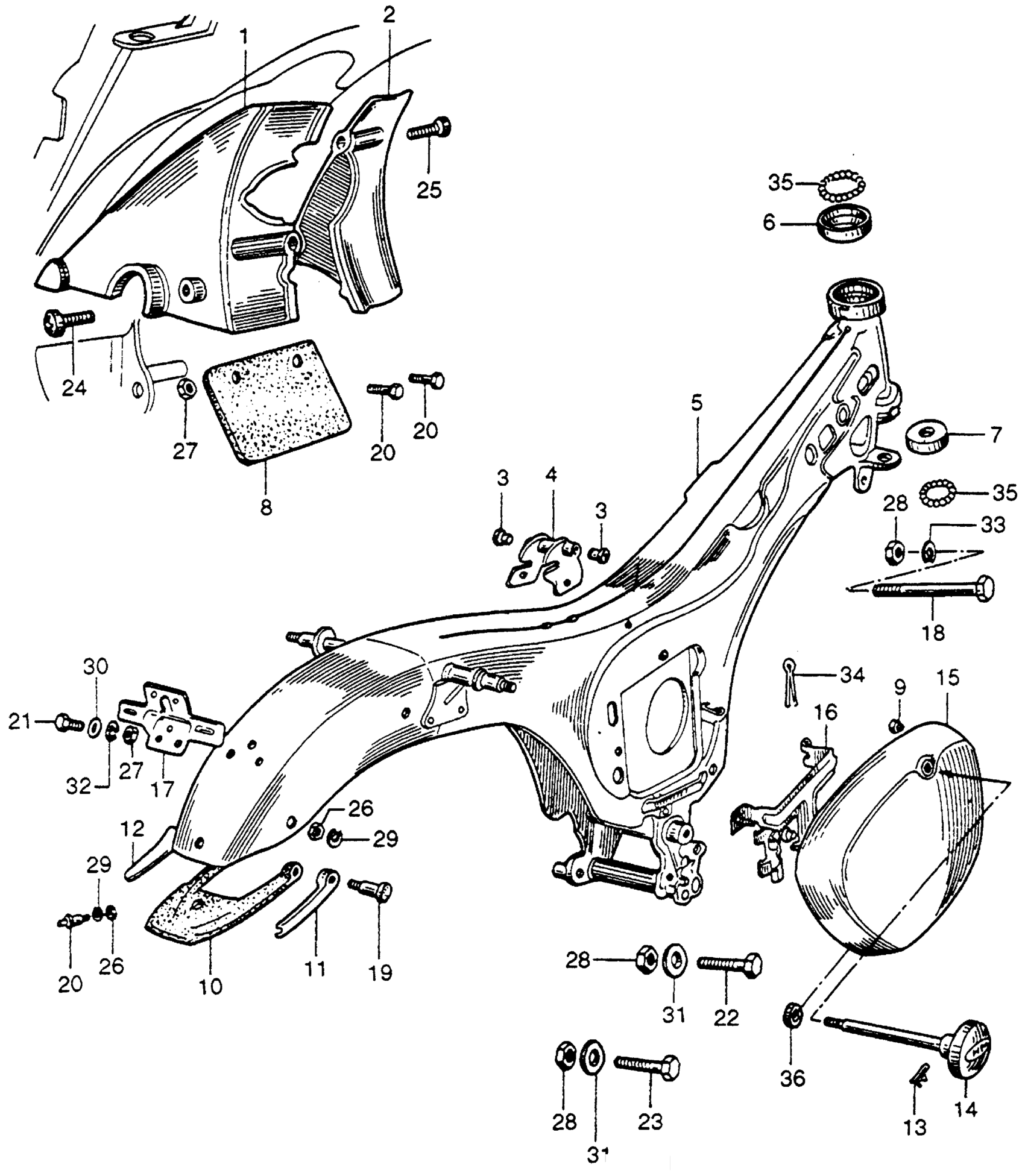

Honda CB92A MOTORCYCLE, JPN, VIN# CB92-010001 FRAME Diagram

#

Description
Price

1

SHIELD, R. DUST FRAME (NOT AVAILABLE)

17261-205-010

Unavailable

2

SHIELD, L. DUST FRAME (NOT AVAILABLE)

17361-200-000

Unavailable

3

RUBBER, RR. FUEL TANK CUSHION (NOT AVAILABLE)

17641-205-000

Unavailable

4

STAY, RR. FUEL TANK SUPPORT (NOT AVAILABLE)

17645-205-000

Unavailable

5

FRAME (NOT AVAILABLE) | Use from Frame SN 7000388

50100-205-030Z

Unavailable

6

RACE, STEERING TOP BALL This part replaces 50301-200-315.

50301-268-010

$19.29

6

RACE, STEERING TOP BALL This part replaces 50301-268-000.

50301-268-010

$19.29

6

RACE, STEERING BALL (UPPER)

50301-268-010

$19.29

6

RACE, STEERING TOP BALL This part replaces 50301-268-305.

50301-268-010

$19.29

6

RACE, STEERING TOP BALL This part replaces 50302-200-000.

50301-268-010

$19.29

6

RACE, STEERING TOP BALL This part replaces 50302-200-305.

50301-268-010

$19.29

7

RACE, STEERING TOP BALL This part replaces 50301-268-000.

50301-268-010

$19.29

7

RACE, STEERING BALL (UPPER)

50301-268-010

$19.29

7

RACE, STEERING TOP BALL This part replaces 50301-268-305.

50301-268-010

$19.29

7

RACE, STEERING TOP BALL This part replaces 50302-200-305.

50301-268-010

$19.29

8

SPLASH GUARD, FRAME (NOT AVAILABLE)

50311-201-000

Unavailable

9

RUBBER, TOOL BOX SHOCK PROOF (NOT AVAILABLE)

50391-250-010

Unavailable

10

SPLASH GUARD, RR. FENDER (NOT AVAILABLE)

80121-205-000

Unavailable

11

STAY, R. RR. FENDER SPLASH GUARD (NOT AVAILABLE)

80122-205-000

Unavailable

12

STAY, L. RR. FENDER SPLASH GUARD (NOT AVAILABLE)

80123-205-000

Unavailable

13

PIN, LOCK (6MM) This part replaces 83543-001-000.

94251-06000

$0.94

13

PIN, LOCK (6MM)

94251-06000

$0.94

14

LATCH, TOOL BOX (NOT AVAILABLE)

83544-205-000

Unavailable

15

BOX, BATTERY *NH2M* (METALLIC SILVER) (NOT AVAILABLE)

83600-205-000T

Unavailable

16

BAND, BATTERY *NH1* (BLACK) (NOT AVAILABLE)

83631-201-000B

Unavailable

17

BRACKET, LICENSE PLATE (NOT AVAILABLE) This part replaces 84701-205-000Z.

84701-205-810Z

Unavailable

17

BRACKET, LICENSE PLATE (NOT AVAILABLE)

84701-205-810Z

Unavailable

18

BOLT, ENGINE HANGER (NOT AVAILABLE)

90105-200-000

Unavailable

19

SCREW, FENDER SPLASH GUARD STAY SET (NOT AVAILABLE)

90142-205-000

Unavailable

20

BOLT, HEX. (5X8) This part replaces 92000-05008.

92101-05008-0A

$0.78

20

BOLT, HEX. (5X8) This part replaces 92000-05008-0A.

92101-05008-0A

$0.78

20

BOLT, HEX. (5X8)

92101-05008-0A

$0.78

20

BOLT, HEX. (5X8) This part replaces 92200-05008.

92101-05008-0A

$0.78

20

BOLT, HEX. (5X8) This part replaces 92200-05008-0A.

92101-05008-0A

$0.78

21

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.29

21

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.29

21

BOLT, HEX. (6X12)

92101-06012-0A

$1.29

22

BOLT, HEX. (10X40) This part replaces 92000-10040.

92101-10040-0A

$2.58

22

BOLT, HEX. (10X40) This part replaces 92000-10040-0A.

92101-10040-0A

$2.58

22

BOLT, HEX. (10X40)

92101-10040-0A

$2.58

23

BOLT, HEX. (10X45) (NOT AVAILABLE)

92000-10044

Unavailable

23

BOLT, HEX. (10X45) (NOT AVAILABLE) This part replaces 92000-10045.

92000-10044

Unavailable

24

SCREW, PAN (6X12) This part replaces 93500-06012.

93500-06012-0A

$0.90

24

SCREW, PAN (6X12)

93500-06012-0A

$0.90

24

SCREW, PAN (6X12) This part replaces 93500-06012-00.

93500-06012-0A

$0.90

25

SCREW, PAN (6X18) This part replaces 93500-06018.

93500-06018-0A

$1.04

25

SCREW, PAN (6X18)

93500-06018-0A

$1.04

26

NUT, HEX. (5MM) This part replaces 94001-05000.

94001-05000-0S

$2.42

26

NUT, HEX. (5MM)

94001-05000-0S

$2.42

27

NUT, HEX. (6MM) This part replaces 90310-KA3-711.

94001-06200-0S

$1.19

27

NUT, HEX. (6MM) This part replaces 94000-06000-0S.

94001-06200-0S

$1.19

27

NUT, HEX. (6MM) This part replaces 94001-06000.

94001-06200-0S

$1.19

27

NUT, HEX. (6MM) This part replaces 94001-06000-0S.

94001-06200-0S

$1.19

27

NUT, HEX. (6MM) This part replaces 94001-06008-0S.

94001-06200-0S

$1.19

27

NUT, HEX. (6MM)

94001-06200-0S

$1.19

27

NUT, HEX. (6MM) This part replaces 94030-06000.

94001-06200-0S

$1.19

28

NUT, HEX. (10MM)

94030-10000

$1.29

29

WASHER, PLAIN (5MM)

94101-05000

$0.90

30

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

30

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

30

WASHER, PLAIN (6MM)

94101-06800

Unavailable

31

WASHER, PLAIN (10MM)

94101-10000

Unavailable

32

WASHER, SPRING (6MM)

94111-06000

$0.86

33

WASHER, SPRING (8MM)

94111-10000

$1.22

34

PIN, COTTER (3.0X45) This part replaces 94201-30300.

94201-30450

$0.94

34

PIN, COTTER (3.0X45) This part replaces 94201-30400.

94201-30450

$0.94

34

PIN, COTTER (3.0X45)

94201-30450

$0.94

35

BALL, STEEL (#8) (1/4)

96211-08000

$1.13

36

NUT, HEX. (6MM) This part replaces 94002-06000.

94002-06000-0S

$1.19

36

NUT, HEX. (6MM)

94002-06000-0S

$1.19
