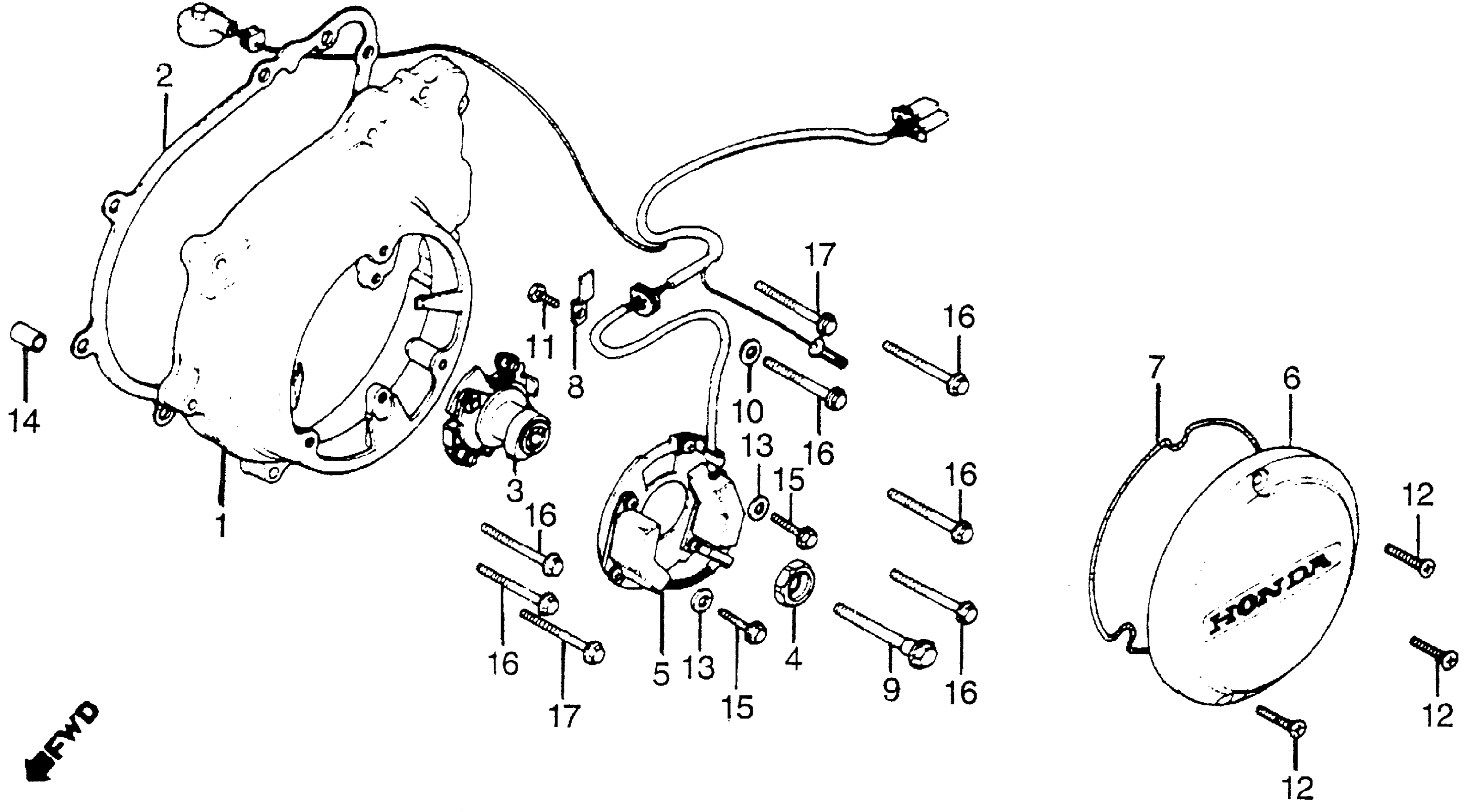

Honda CB900FA (81) 900 SUPER SPORT, JPN, VIN# JH2SC010-BM000001 TO JH2SC010-BM007060 LEFT CRANKCASE COVER + SPARK ADVANCER Diagram

COVER, L. CRANKCASE (NOT AVAILABLE)

11341-438-670

Unavailable

GASKET, L. CRANKCASE COVER This part replaces 11395-425-000.

11395-425-306

$14.73

GASKET, L. CRANKCASE COVER

11395-425-306

$14.73

ADVANCER ASSY., SPARK (TOYO) (NOT AVAILABLE)

30220-438-164

Unavailable

BOSS, TIMING (NOT AVAILABLE)

30228-425-010

Unavailable

GENERATOR, PULSE This part replaces 30300-MA3-154.

30300-461-405

Unavailable

GENERATOR, PULSE This part replaces 30300-438-154.

30300-461-405

Unavailable

GENERATOR, PULSE

30300-461-405

Unavailable

COVER, POINTS

30371-425-010

Unavailable

GASKET, POINTS COVER

30372-425-000

$8.45

PLATE, PULSER WIRE SETTING (NOT AVAILABLE)

32116-425-000

Unavailable

BOLT, FLANGE (8X60) (NOT AVAILABLE)

90052-MA3-000

Unavailable

BOLT, HEX. (6X12) This part replaces 92000-06012.

92101-06012-0A

$1.49

BOLT, HEX. (6X12) This part replaces 92101-06012.

92101-06012-0A

$1.49

BOLT, HEX. (6X12)

92101-06012-0A

$1.49

SCREW, OVAL (6X25) This part replaces 93700-06025.

93700-06025-0A

$1.38

SCREW, OVAL (6X25)

93700-06025-0A

$1.38

WASHER, PLAIN (6MM) This part replaces 94101-06000.

94101-06800

Unavailable

WASHER, PLAIN (6MM) This part replaces 94101-06080.

94101-06800

Unavailable

WASHER, PLAIN (6MM)

94101-06800

Unavailable

PIN A, DOWEL (8X14)

94301-08140

$2.89

BOLT, FLANGE (6X14) This part replaces 96000-06014-00.

96001-06014-00

$1.88

BOLT, FLANGE (6X14)

96001-06014-00

$1.88

BOLT, FLANGE (6X32) This part replaces 96000-06032-00.

96001-06032-00

$1.35

BOLT, FLANGE (6X32)

96001-06032-00

$1.35

BOLT, FLANGE (6X40) This part replaces 96000-06040-00.

96001-06040-00

$2.88

BOLT, FLANGE (6X40)

96001-06040-00

$2.88
