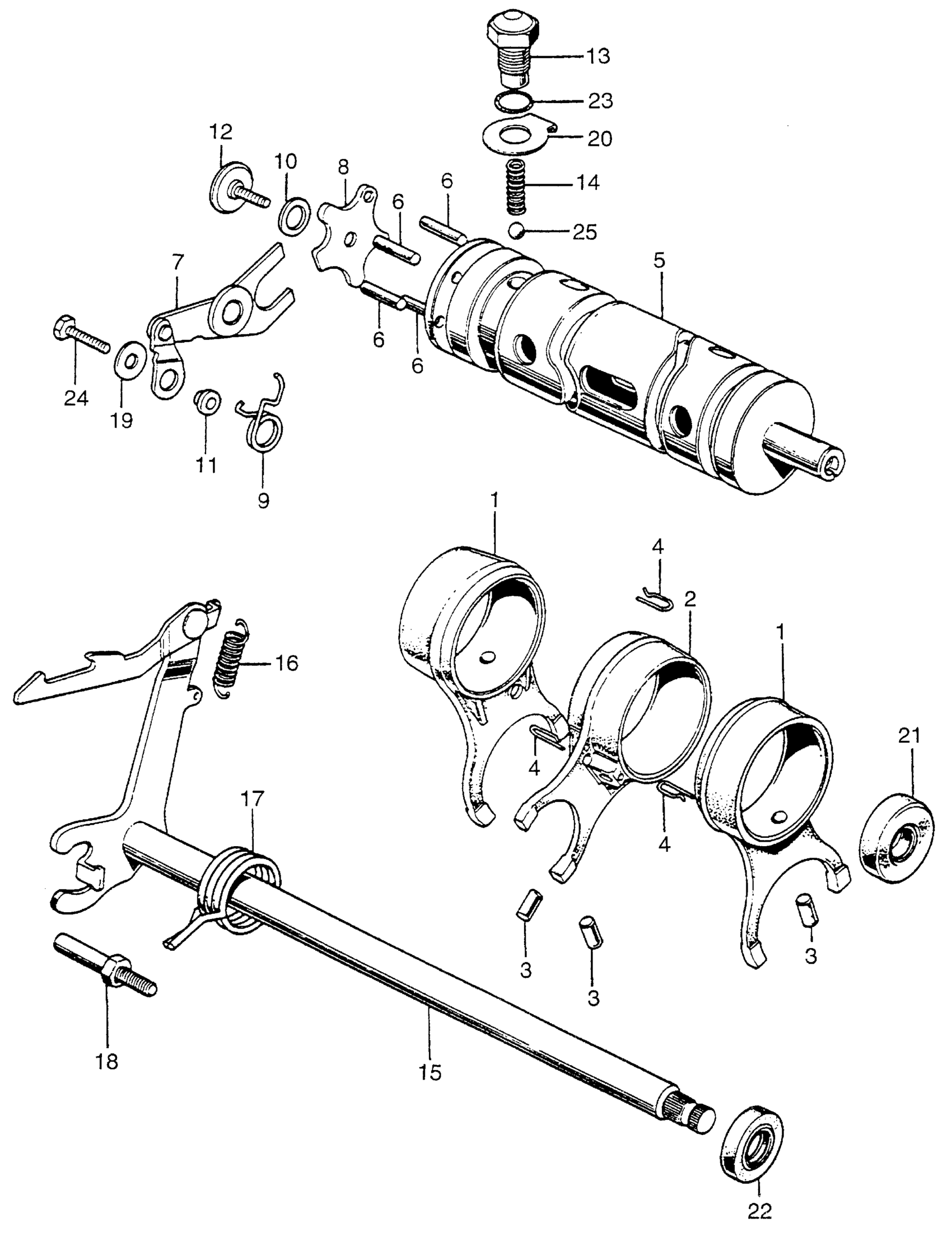

Honda CB350GA MOTORCYCLE, JPN, VIN# CB350-5000001 SHIFT DRUM + SHIFT FORK Diagram

#

Description
Price

1

FORK A, GEARSHIFT

24211-286-020

Unavailable

2

FORK B, GEARSHIFT (NOT AVAILABLE)

24212-286-030

Unavailable

3

PIN, GEARSHIFT FORK GUIDE

24261-283-000

$4.19

4

CLIP, GEARSHIFT FORK GUIDE

24263-286-000

Unavailable

5

DRUM, GEARSHIFT

24301-286-050

$139.43

6

PIN, GEARSHIFT DRUM

24421-230-000

$5.77

7

STOPPER, SHIFT DRUM

24430-286-040

Unavailable

8

PLATE, DRUM STOPPER CAM (NOT AVAILABLE)

24434-286-030

Unavailable

9

SPRING, SHIFT DRUM STOPPER (NOT AVAILABLE)

24435-286-030

Unavailable

10

COLLAR A, SHIFT DRUM STOPPER (NOT AVAILABLE)

24438-286-010

Unavailable

11

COLLAR B, GEARSHIFT DRUM STOPPER (NOT AVAILABLE)

24439-286-000

Unavailable

12

SCREW, DRUM STOPPER GUIDE (NOT AVAILABLE)

24441-286-000

Unavailable

13

SCREW, GEARSHIFT DRUM GUIDE (NOT AVAILABLE)

24445-286-020

Unavailable

14

SPRING, NEUTRAL STOPPER (NOT AVAILABLE)

24447-286-000

Unavailable

15

SPINDLE, GEARSHIFT (NOT AVAILABLE)

24610-286-040

Unavailable

16

SPRING, GEARSHIFT ARM

24641-216-000

$2.62

17

SPRING, GEARSHIFT RETURN

24651-286-000

Unavailable

18

PIN, RETURN SPRING

90015-286-000

Unavailable

19

WASHER, GEARSHIFT DRUM SIDE

90417-041-000

$2.22

20

WASHER, LOCK (12MM) (NOT AVAILABLE)

90434-286-000

Unavailable

21

OIL SEAL (12X25X4.5) This part replaces 91201-283-000.

91202-426-003

$5.82

21

OIL SEAL (12X25X4.5) This part replaces 91201-283-005.

91202-426-003

$5.82

21

OIL SEAL (12X25X4.5) This part replaces 91201-292-003.

91202-426-003

$5.82

21

OIL SEAL (12X25X4.5)

91202-426-003

$5.82

22

OIL SEAL (14X28X7) (ARAI)

91206-286-013

$3.09

23

O-RING (11.5X2)

91304-216-000

$2.05

24

BOLT, HEX. (6X20) This part replaces 92000-06020.

92101-06020-0A

$1.00

24

BOLT, HEX. (6X20)

92101-06020-0A

$1.00

25

BALL, STEEL (#10) (5/16)

96211-10000

$1.49
