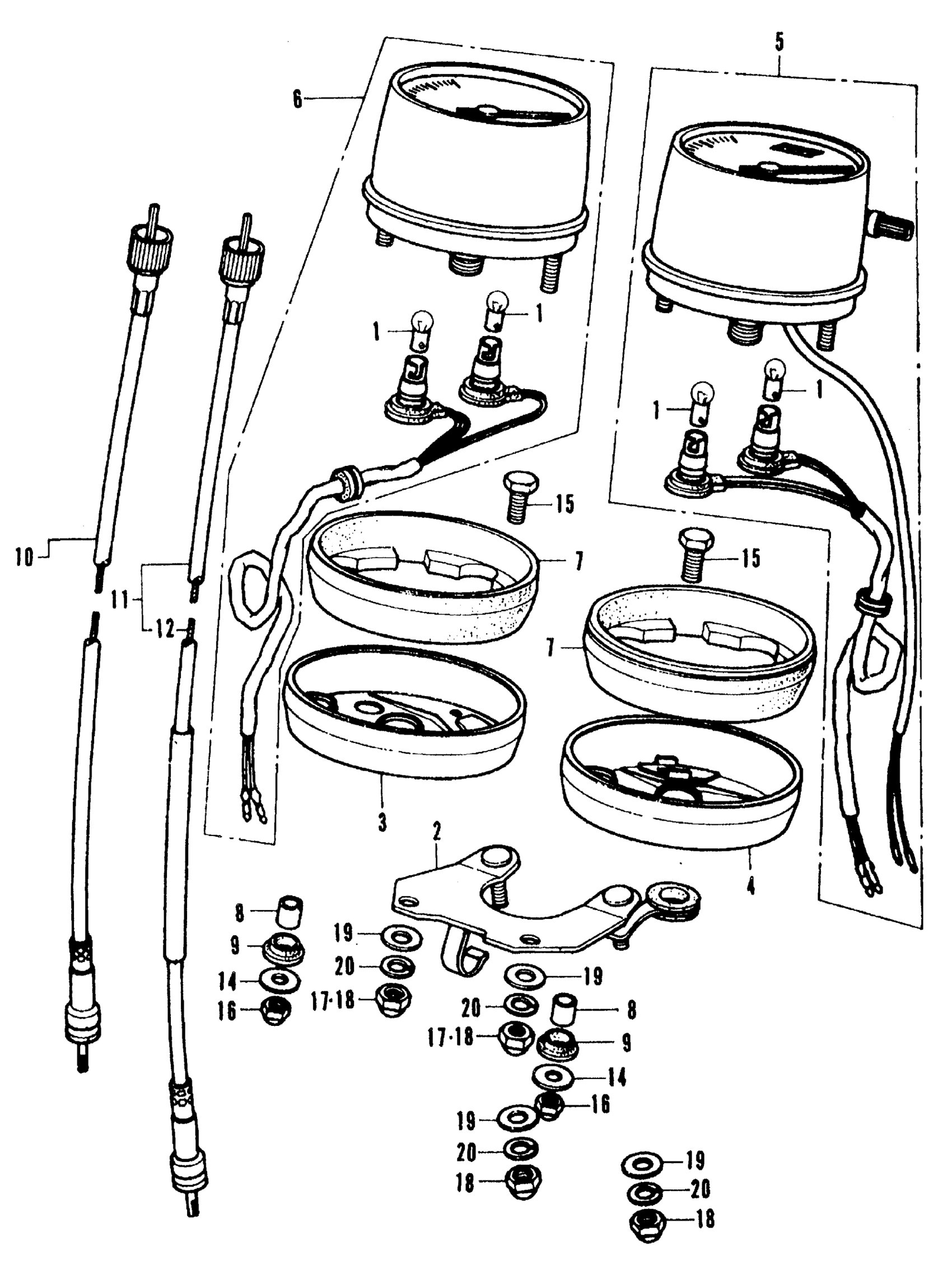

Honda CB350FA MOTORCYCLE, JPN, VIN# CB350F-1000001 SPEEDOMETER + TACHOMETER Diagram

#

Description
Price

1

BULB, DASH (12V3.4W) (IMASEN)

34902-259-000

$2.17

2

BRACKET, METER (NIPPON SEIKI)

37211-333-008

Unavailable

3

RING, R. METER SETTING | Use up to Frame SN 1013951 This part replaces 37212-323-701.

37212-447-000

$35.74

3

RING, R. METER SETTING | Use up to Frame SN 1013951 This part replaces 37212-333-000.

37212-447-000

$35.74

3

RING, R. METER SETTING | Use up to Frame SN 1013951

37212-447-000

$35.74

3

RING, R. METER SETTING

37212-447-000

$35.74

3

RING, R. METER SETTING This part replaces 37212-455-000.

37212-447-000

$35.74

4

RING, L. METER SETTING | Use up to Frame SN 1013951 This part replaces 37213-323-701.

37213-447-000

$35.41

4

RING, L. METER SETTING | Use up to Frame SN 1013951 This part replaces 37213-333-000.

37213-447-000

$35.41

4

RING, L. METER SETTING | Use up to Frame SN 1013951

37213-447-000

$35.41

4

RING, L. METER SETTING

37213-447-000

$35.41

4

RING, L. METER SETTING This part replaces 37213-455-000.

37213-447-000

$35.41

5

SPEEDOMETER ASSY. (MPH) (NOT AVAILABLE)

37230-333-672

Unavailable

6

TACHOMETER ASSY. (NOT AVAILABLE)

37240-333-008

Unavailable

7

RUBBER, METER

37242-323-701

$15.51

8

COLLAR, INSTRUMENT SETTING | Use up to Frame SN 1013951

37243-323-000

Unavailable

8

COLLAR, INSTRUMENT SETTING | Use from Frame SN 1013952

37243-457-000

Unavailable

9

RUBBER, METER SETTING

37244-307-670

$2.43

10

CABLE ASSY., TACHOMETER

37260-333-000

Unavailable

11

CABLE ASSY., SPEEDOMETER This part replaces 44830-323-000.

44830-425-870

$26.11

11

CABLE ASSY., SPEEDOMETER This part replaces 44830-346-000.

44830-425-870

$26.11

11

CABLE ASSY., SPEEDOMETER

44830-425-870

$26.11

12

CABLE ASSY., SPEEDOMETER This part replaces 44830-323-000.

44830-425-870

$26.11

12

CABLE ASSY., SPEEDOMETER This part replaces 44830-329-000.

44830-425-870

$26.11

12

CABLE ASSY., SPEEDOMETER This part replaces 44830-346-000.

44830-425-870

$26.11

12

CABLE ASSY., SPEEDOMETER This part replaces 44830-369-000.

44830-425-870

$26.11

12

CABLE ASSY., SPEEDOMETER This part replaces 44830-375-000.

44830-425-870

$26.11

12

CABLE ASSY., SPEEDOMETER This part replaces 44830-390-000.

44830-425-870

$26.11

12

CABLE ASSY., SPEEDOMETER This part replaces 44830-413-000.

44830-425-870

$26.11

12

CABLE ASSY., SPEEDOMETER This part replaces 44830-413-010.

44830-425-870

$26.11

12

CABLE ASSY., SPEEDOMETER This part replaces 44830-415-000.

44830-425-870

$26.11

12

CABLE ASSY., SPEEDOMETER

44830-425-870

$26.11

12

CABLE ASSY., SPEEDOMETER This part replaces 44830-446-000.

44830-425-870

$26.11

12

CABLE ASSY., SPEEDOMETER This part replaces 44830-463-000.

44830-425-870

$26.11

12

CABLE ASSY., SPEEDOMETER This part replaces 44831-323-000.

44830-425-870

$26.11

14

WASHER, INSTRUMENT MOUNT (19MM) (NOT AVAILABLE) | Use from Frame SN 1013952

90500-455-000

$2.57

14

WASHER B, HANDLE HOLDER SETTING | Use up to Frame SN 1013951

90525-030-000

$1.67

15

BOLT, HEX. (8X16) | Use from Frame SN 1055094 This part replaces 92000-08016-0A.

92101-08016-0A

$1.35

15

BOLT, HEX. (8X20) | Use up to Frame SN 1055093 This part replaces 92000-08020-0A.

92101-08020-0A

$1.48

15

BOLT, HEX. (8X16) | Use from Frame SN 1055094

92101-08016-0A

$1.35

15

BOLT, HEX. (8X20) | Use up to Frame SN 1055093

92101-08020-0A

$1.48

16

NUT, CAP (6MM)

94021-06020

$1.65

17

NUT, CAP (8MM) | Use from Frame SN 1055094

94021-08000-0S

$1.48

18

NUT, CAP (8MM) | Use from Frame SN 1055094

94021-08020-0S

$1.65

19

WASHER, PLAIN (8MM)

94101-08000

$0.75

20

WASHER, SPRING (8MM)

94111-08000

$0.90
