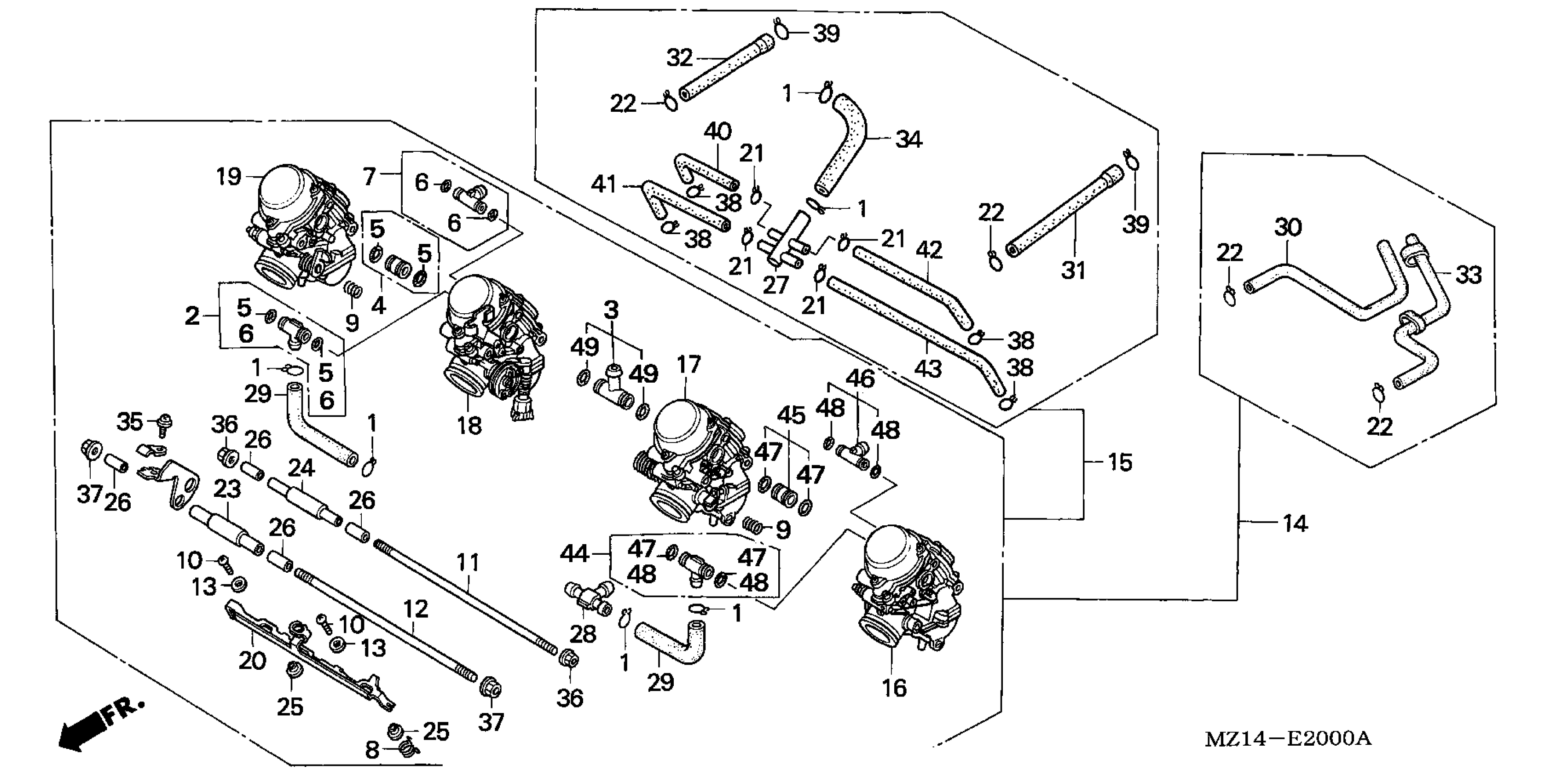

Honda CB1000A (95) MOTORCYCLE, JPN, VIN# JH2SC300-SM000001 CARBURETOR ASSY. Diagram

#

Description
Price

1

CLIP, BREATHER TUBE

15772-292-010

$2.80

2

JOINT SET, FUEL This part replaces 16024-MY9-000.

16024-MY9-750

$44.21

2

JOINT SET, FUEL

16024-MY9-750

$44.21

3

JOINT SET This part replaces 16024-MZ1-000.

16027-MZ2-E00

Unavailable

4

JOINT SET (NOT AVAILABLE)

16026-MZ1-000

Unavailable

5

GASKET SET B This part replaces 16039-MV9-670.

16040-MZ1-790

$11.53

5

GASKET SET B This part replaces 16039-MZ1-790.

16040-MZ1-790

$11.53

5

GASKET SET B

16040-MZ1-790

$11.53

6

GASKET SET B This part replaces 16040-MV4-000.

16040-MZ1-790

$11.53

6

GASKET SET B

16040-MZ1-790

$11.53

7

JOINT SET This part replaces 16047-MZ1-000.

16047-MZ1-790

Unavailable

8

SPRING, TORSION COIL (NOT AVAILABLE)

16051-MZ1-000

Unavailable

9

SPRING, COMPRESSION COIL

16053-MA6-003

$8.26

10

SCREW, TRUSS (4X8)

16081-KAZ-000

$2.88

11

BOLT (SOURCE: VINTAGE PARTS INC.)

16083-MZ1-000

Unavailable

12

BOLT (NOT AVAILABLE)

16084-MZ2-610

Unavailable

13

WASHER, PLAIN

16085-MV4-000

$2.67

14

CARBURETOR ASSY. (NOT AVAILABLE)

16100-MZ1-670

Unavailable

16

CARBURETOR ASSY. 1 (NOT AVAILABLE)

16101-MZ1-670

Unavailable

17

CARBURETOR ASSY. 2 (NOT AVAILABLE)

16102-MZ1-670

Unavailable

18

CARBURETOR ASSY. 3 (NOT AVAILABLE)

16103-MZ1-670

Unavailable

19

CARBURETOR ASSY. 4 (NOT AVAILABLE)

16104-MZ1-670

Unavailable

20

PLATE, STARTER (NOT AVAILABLE)

16119-MZ1-000

Unavailable

22

CLIP, TUBE

16163-GHB-610

$1.65

22

CLIP, TUBE This part replaces 16163-MB3-671.

16163-GHB-610

$1.65

23

COLLAR (NOT AVAILABLE)

16172-MZ1-000

Unavailable

24

COLLAR (NOT AVAILABLE)

16173-MZ1-000

Unavailable

25

COLLAR

16175-MZ1-000

$12.27

26

PIN, DOWEL (7.9X20)

16178-MAS-600

$7.10

26

PIN, DOWEL (7.9X20) This part replaces 16178-MV4-000.

16178-MAS-600

$7.10

28

T-JOINT

16180-MM5-601

$19.71

29

TUBE, FUEL

16195-MY9-000

$11.08

30

TUBE (SOURCE: VINTAGE PARTS INC.)

16197-MZ1-000

Unavailable

33

TUBE (NOT AVAILABLE)

16199-MZ1-000

Unavailable

35

SCREW-WASHER (4X10)

93892-04010-00

$0.84

35

SCREW-WASHER (4X10) This part replaces 93892-04010-10.

93892-04010-00

$0.84

36

NUT, FLANGE (5MM)

94050-05000

$1.19

37

NUT, FLANGE (6MM)

94050-06000

$0.59

44

JOINT SET, FUEL This part replaces 16024-MY9-000.

16024-MY9-750

$44.21

44

JOINT SET, FUEL

16024-MY9-750

$44.21

45

JOINT SET (NOT AVAILABLE)

16026-MZ1-000

Unavailable

46

JOINT SET This part replaces 16047-MZ1-000.

16047-MZ1-790

Unavailable

47

GASKET SET B This part replaces 16039-MV9-670.

16040-MZ1-790

$11.53

47

GASKET SET B This part replaces 16039-MZ1-790.

16040-MZ1-790

$11.53

47

GASKET SET B

16040-MZ1-790

$11.53

48

GASKET SET B This part replaces 16040-MV4-000.

16040-MZ1-790

$11.53

48

GASKET SET B

16040-MZ1-790

$11.53

49

GASKET SET B This part replaces 16039-MV9-670.

16040-MZ1-790

$11.53

49

GASKET SET B This part replaces 16039-MZ1-790.

16040-MZ1-790

$11.53

49

GASKET SET B

16040-MZ1-790

$11.53
