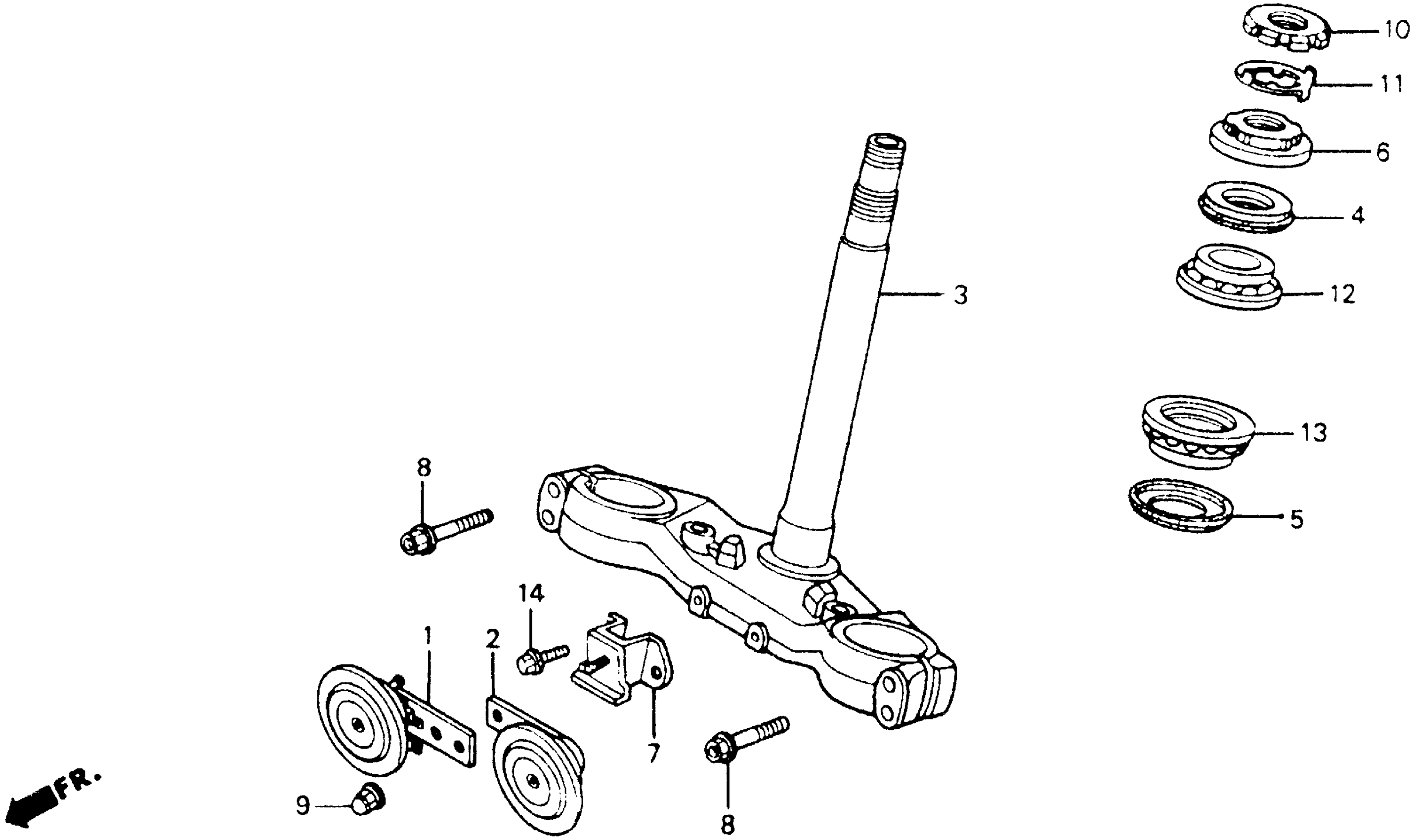

Honda CB1000A (94) MOTORCYCLE, JPN, VIN# JH2SC300-RM000001 STEERING STEM Diagram

#

Description
Price

1

HORN (HIGH) (MITSUBA)

38110-GT8-621

Unavailable

2

HORN (LOW) (NOT AVAILABLE)

38120-MZ1-008

Unavailable

3

STEM, STEERING (NOT AVAILABLE)

53200-MZ1-000

Unavailable

4

DUST SEAL, STEERING (UPPER) (ARAI)

53213-MB4-771

$11.65

5

DUST SEAL, STEERING HEAD

53214-371-010

$12.06

6

THREAD, STEERING HEAD TOP

53220-422-000

$31.30

6

THREAD, STEERING HEAD TOP This part replaces 53220-460-840.

53220-422-000

$31.30

7

STAY, HORN (SOURCE: VINTAGE PARTS INC.)

61406-MZ1-000

Unavailable

8

BOLT, FLANGE (8X45)

90109-MR7-000

$4.91

9

NUT, CAP | Use up to Frame SN RM000579 This part replaces 90201-KF9-900.

90201-428-900

$2.15

9

NUT, CAP | Use up to Frame SN RM000579

90201-428-900

$2.15

9

NUT, CAP | Use from Frame SN RM000135

90201-428-900

$2.15

9

NUT, CAP | Use from Frame SN RM000580

90201-428-900

$2.15

10

THREAD B, STEERING HEAD TOP

90302-425-830

$20.85

11

WASHER, LOCK

90506-425-830

$7.01

12

BEARING, HEAD PIPE (UPPER) (KOYO)

91015-KT8-005

$33.95

13

BEARING, HEAD PIPE (LOWER) (KOYO)

91016-KT8-005

$33.95

14

BOLT, FLANGE (6X25)

95701-06025-07

$1.88
