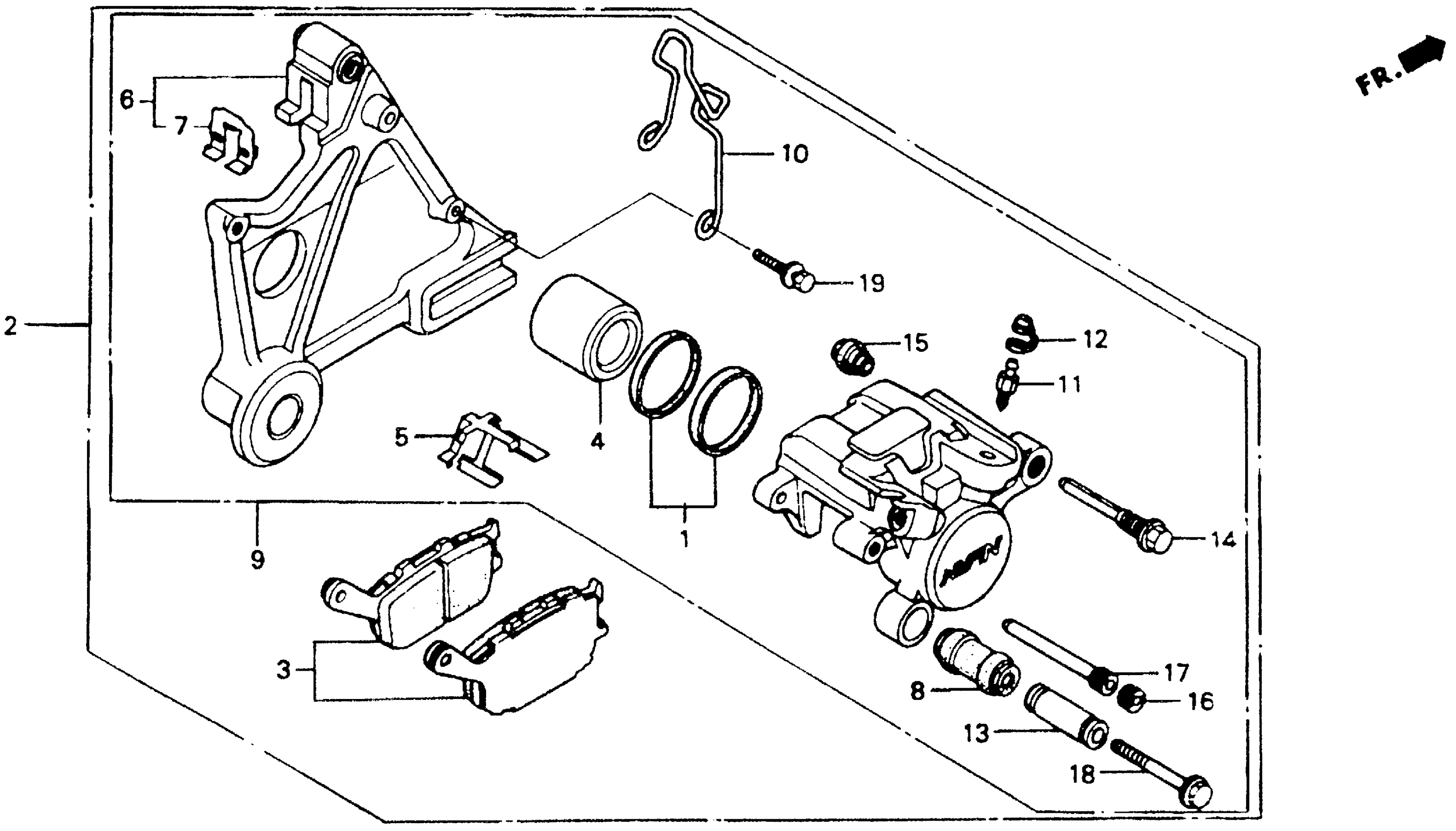

Honda CB1000A (94) MOTORCYCLE, JPN, VIN# JH2SC300-RM000001 REAR BRAKE CALIPER Diagram

Description

Price

SEAL SET, PISTON

06451-443-405

$12.70

CALIPER ASSY., RR. BRAKE (NISSIN) (NOT AVAILABLE)

43100-MZ1-006

Unavailable

PAD SET, RR. This part replaces 43105-MW0-405.

43105-MW0-425

$49.62

PAD SET, RR. This part replaces 43105-MW0-415.

43105-MW0-425

$49.62

PAD SET, RR.

43105-MW0-425

$49.62

PISTON

43107-KT7-761

$36.21

SPRING, PAD

43108-KT7-761

$8.57

BRACKET, RR. BRAKE (NOT AVAILABLE)

43110-MZ1-006

Unavailable

RETAINER

43112-MV9-016

$10.23

BOOT, SLEEVE

43132-KT7-761

$8.18

GUIDE, RR. BRAKE HOSE (NOT AVAILABLE)

43350-MW3-600

Unavailable

SCREW, BLEEDER (NISSIN)

43352-568-003

Unavailable

CAP, BLEEDER

43353-461-771

$5.03

SLEEVE

45111-MA3-006

$12.85

BOLT, PIN

45131-MN9-006

$15.33

BOOT B

45133-MA3-006

$5.43

PLUG, PIN

45203-MG3-016

Unavailable

PIN, HANGER

45215-ML7-922

$10.24

BOLT, FLANGE (8X49)

90180-MN8-006

$6.04

BOLT-WASHER (6X20)

93401-06020-07

$1.01
