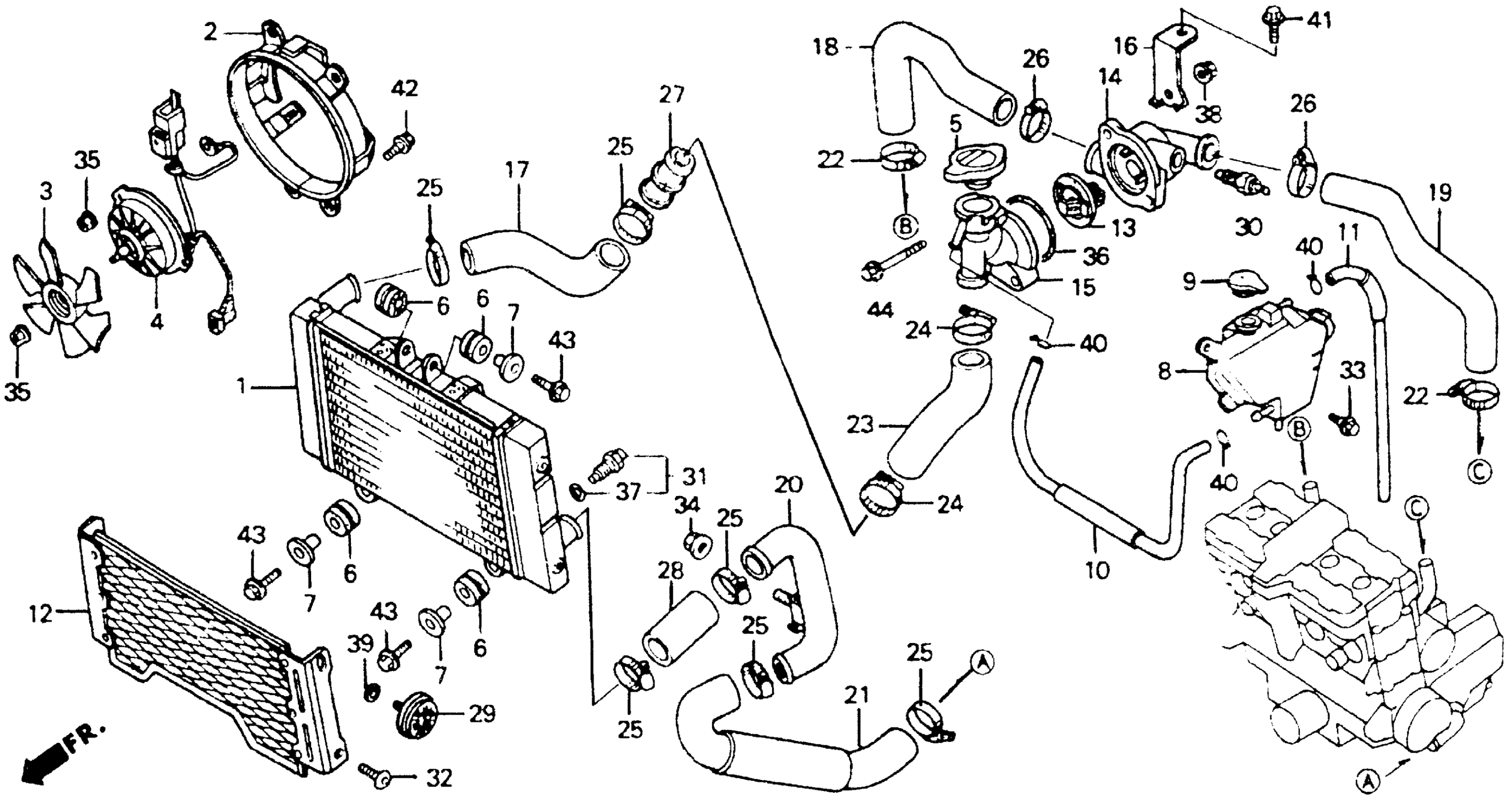

Honda CB1000A (94) MOTORCYCLE, JPN, VIN# JH2SC300-RM000001 RADIATOR Diagram

#

Description
Price

1

RADIATOR (NOT AVAILABLE)

19010-MZ1-003

Unavailable

2

SHROUD (NOT AVAILABLE)

19015-MZ1-003

Unavailable

3

FAN, COOLING

19020-MG8-003

$60.23

4

MOTOR, COOLING FAN (NOT AVAILABLE)

19030-MZ1-003

Unavailable

5

CAP, RADIATOR

19037-GEE-710

$28.96

5

CAP, RADIATOR This part replaces 19045-MV9-921.

19037-GEE-710

$28.96

6

RUBBER, RADIATOR MOUNTING

19051-KA3-830

$3.30

7

COLLAR, RADIATOR MOUNTING

19052-MGH-640

$2.40

7

COLLAR, RADIATOR MOUNTING This part replaces 19052-MN8-000.

19052-MGH-640

$2.40

8

TANK, RADIATOR RESERVE (NOT AVAILABLE)

19101-MZ1-000

Unavailable

9

CAP, RESERVE TANK (NOT AVAILABLE)

19104-MB0-000

Unavailable

10

TUBE, RADIATOR RESERVE TANK (NOT AVAILABLE)

19105-MZ1-000

Unavailable

11

TUBE, RESERVE TANK DRAIN (NOT AVAILABLE)

19106-MZ1-000

Unavailable

12

GRILLE ASSY., RADIATOR (SOURCE: VINTAGE PARTS INC.)

19110-MZ1-000

Unavailable

13

THERMOSTAT

19300-MG9-000

$51.78

14

CASE, THERMOSTAT (NOT AVAILABLE)

19311-MM5-000

Unavailable

15

NECK, FILLER

19312-MS2-000

Unavailable

16

STAY, THERMOSTAT CASE (NOT AVAILABLE)

19319-MZ1-000

Unavailable

17

HOSE A, WATER (NOT AVAILABLE)

19501-MZ1-000

Unavailable

18

HOSE, R. WATER (NOT AVAILABLE)

19502-MZ1-000

Unavailable

19

HOSE, L. WATER (NOT AVAILABLE)

19503-MZ1-000

Unavailable

20

PIPE E, WATER (NOT AVAILABLE)

19504-MZ1-000

Unavailable

21

HOSE B, RADIATOR (LOWER) (NOT AVAILABLE)

19505-MZ1-000

Unavailable

22

CLAMP B, WATER HOSE

19506-KS6-700

$7.46

23

HOSE, THERMOSTAT CASE (NOT AVAILABLE)

19507-MZ1-000

Unavailable

24

CLAMP, RADIATOR HOSE

19509-MM5-003

$13.03

25

CLAMP, HOSE (30-37MM)

19516-GAG-003

$12.92

26

CLAMP, HOSE (24-32MM)

19516-ML7-691

$13.82

27

JOINT, WATER HOSE (SOURCE: VINTAGE PARTS INC.)

19518-MZ1-000

Unavailable

28

HOSE A, RADIATOR (LOWER) (NOT AVAILABLE)

19520-MZ1-000

Unavailable

29

REFLECTOR, FR. REFLEX This part replaces 33741-413-013.

33742-HB9-641

$12.63

29

REFLECTOR, FR. REFLEX (AMBER)

33742-HB9-641

$12.63

30

THERMO UNIT (DENSO)

37750-PC1-004

$84.85

31

SWITCH ASSY., THERMO This part replaces 37760-MT2-003.

37760-MR1-003

$68.76

32

SCREW, PAN (6X10)

90105-MM4-000

$2.14

33

BOLT, FLANGE (6X14)

90111-HC4-000

$2.98

34

NUT, FLANGE (8MM)

90201-SM4-950

Unavailable

35

NUT, SERRATE (5MM)

90315-MK3-003

$2.25

36

O-RING (54X2) (ARAI)

91307-MB0-003

$3.21

37

O-RING (13.5X1.4)

91307-PH7-660

$2.92

37

O-RING (13.5X1.4) This part replaces 91307-611-000.

91307-PH7-660

$2.92

38

NUT, FLANGE (6MM)

94050-06080

$0.63

39

WASHER, SPRING (6MM)

94111-06000

$0.91

40

CLIP, TUBE (C11)

95002-70000

Unavailable

41

BOLT, FLANGE (6X16)

95701-06016-08

$1.40

42

BOLT, FLANGE (6X10)

96001-06010-00

$1.68

43

BOLT, FLANGE (6X22)

96001-06022-07

$1.78

44

BOLT, FLANGE (6X30)

96001-06030-00

$1.35
