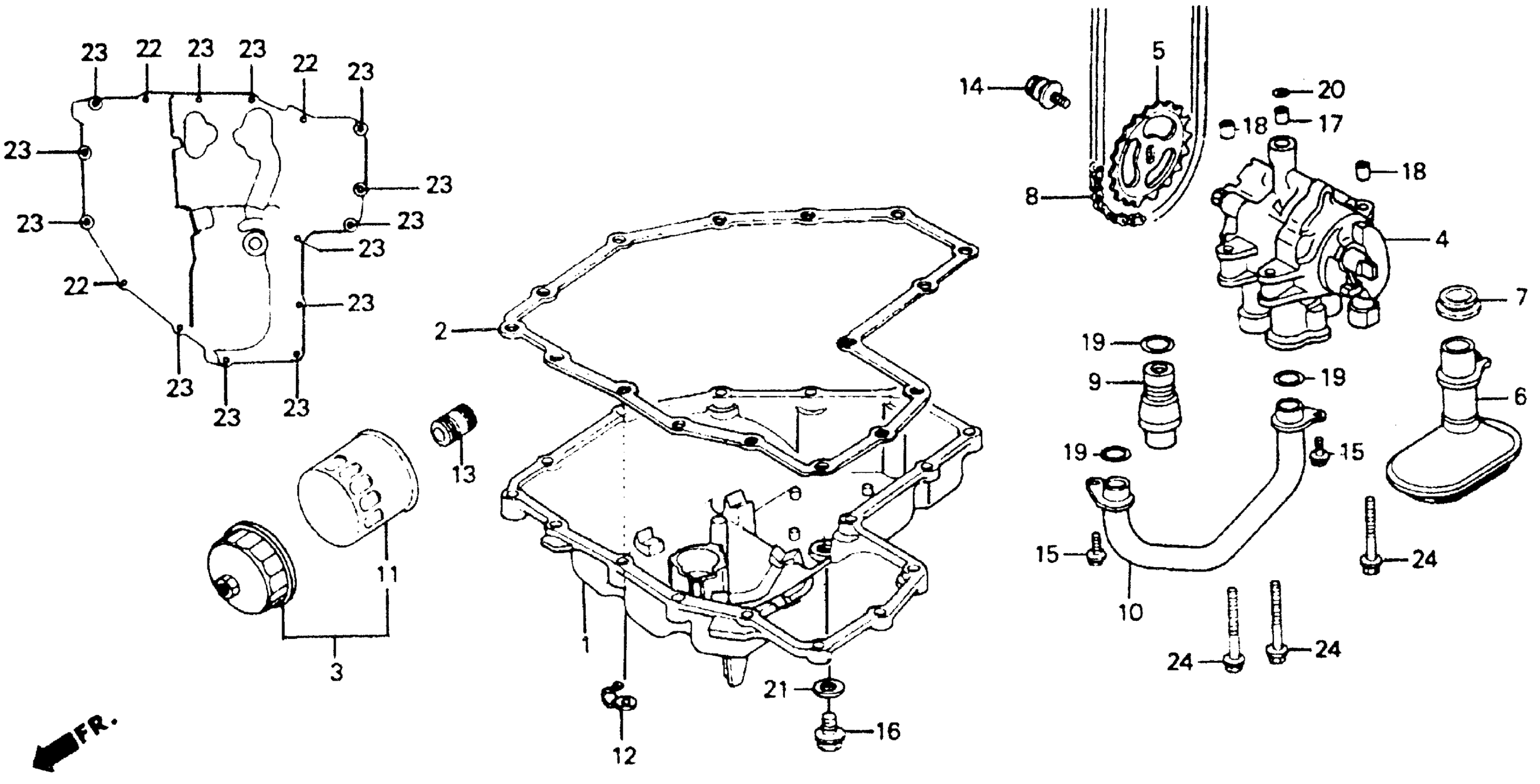

Honda CB1000A (94) MOTORCYCLE, JPN, VIN# JH2SC300-RM000001 OIL PAN Diagram

#

Description
Price

1

PAN, OIL (NOT AVAILABLE)

11210-MZ1-000

Unavailable

2

GASKET, OIL PAN (NOT AVAILABLE)

11398-MZ1-000

Unavailable

3

FILTER SET, OIL | (Optional). This part replaces 15010-MCE-H51.

15010-MKR-305

$18.91

3

FILTER SET, OIL | (Optional). This part replaces 15010-MW0-000.

15010-MKR-305

$18.91

4

PUMP ASSY., OIL (NOT AVAILABLE)

15100-MZ1-000

Unavailable

5

SPROCKET, OIL PUMP DRIVEN (SOURCE: VINTAGE PARTS INC.)

15134-MZ1-000

Unavailable

6

STRAINER, OIL (NOT AVAILABLE)

15153-MS2-610

Unavailable

7

GASKET, OIL STRAINER

15154-MM5-000

$6.56

8

CHAIN, OIL PUMP (62LE) (NOT AVAILABLE)

15161-MM5-003

Unavailable

9

VALVE ASSY., RELIEF

15220-MZ1-000

$35.75

10

PIPE C, OIL (SOURCE: VINTAGE PARTS INC.)

15313-MM5-000

Unavailable

11

FILTER, OIL (WAKO FILTER) This part replaces 15410-MFJ-D01.

15410-MFJ-D02

$14.75

11

FILTER, OIL (WAKO FILTER) This part replaces 15410-MM9-013.

15410-MFJ-D02

$14.75

12

CLAMP, WIRE (NOT AVAILABLE)

32922-MB2-000

Unavailable

13

BOSS, OIL FILTER

90019-MB0-000

$8.27

14

BOLT-WASHER (6X12)

90021-MM5-000

$5.09

15

BOLT, SPECIAL (6MM)

90030-PG2-000

$5.45

16

BOLT, PLUG

90081-MC7-000

$11.04

17

PIN, DOWEL (10X10)

90702-MJ4-000

$3.15

18

PIN, DOWEL (8X10)

91103-429-000

$2.92

19

O-RING (14.8X2.2) This part replaces 91313-MB0-003.

91313-MG7-004

$3.66

19

O-RING (14.8X2.2)

91313-MG7-004

$3.66

20

O-RING (9X2.3) (NOK)

91313-PC9-003

$3.31

21

WASHER, DRAIN PLUG (14MM)

94109-14000

$0.60

22

BOLT, FLANGE (6X25)

95701-06025-00

$1.88

23

BOLT, FLANGE (6X32)

95701-06032-00

$1.97

24

BOLT, FLANGE (6X40)

95701-06040-00

$1.97
