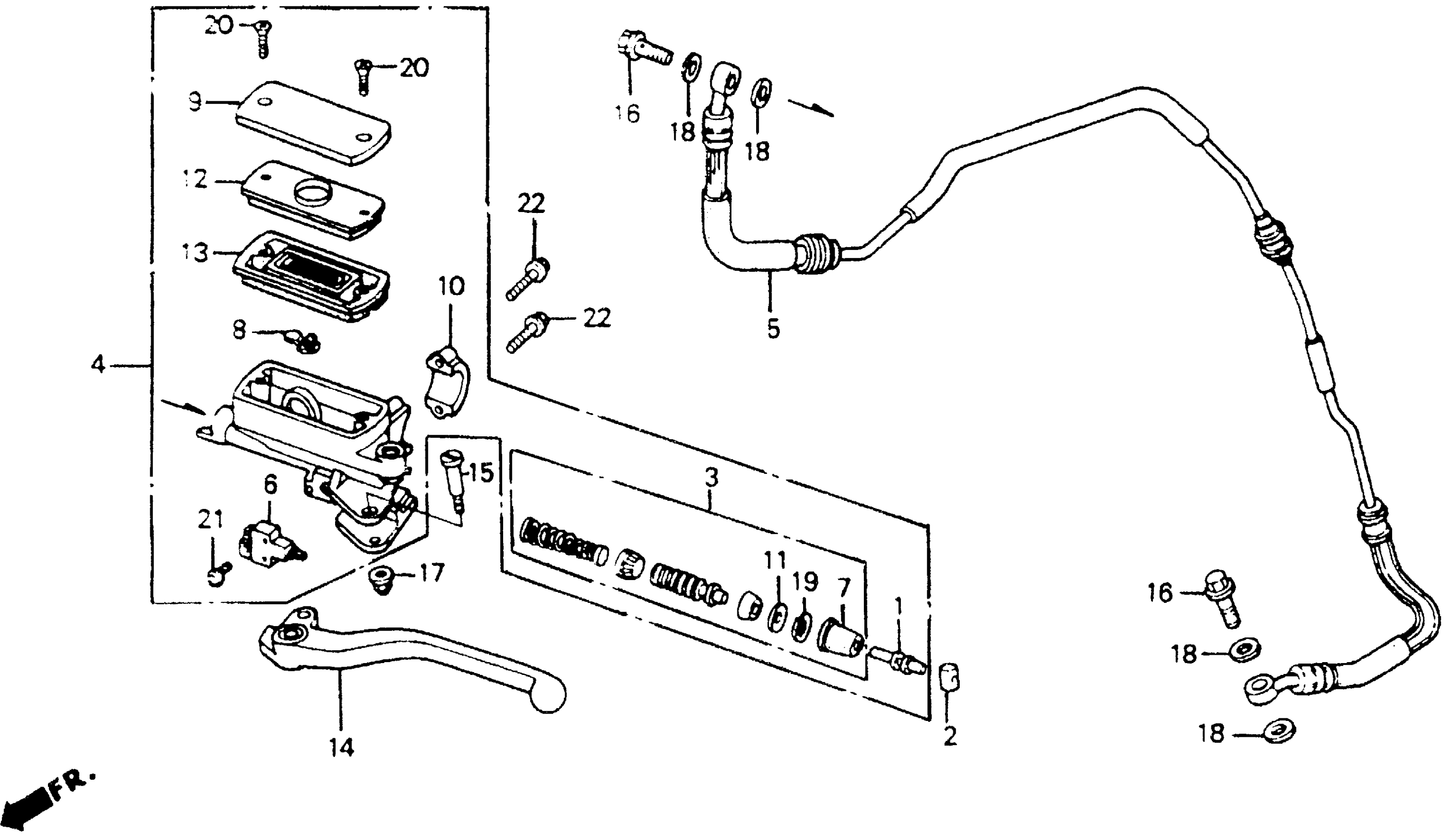

Honda CB1000A (94) MOTORCYCLE, JPN, VIN# JH2SC300-RM000001 CLUTCH MASTER CYLINDER Diagram

#

Description
Price

1

ROD, PUSH

22884-MB0-006

$19.83

2

BUSH

22885-MB0-006

$12.42

3

PISTON SET, CLUTCH MASTER CYLINDER

22886-MB0-305

$71.08

4

MASTER CYLINDER SUB-ASSY., CLUTCH (NISSIN) (NOT AVAILABLE)

22890-MZ1-305

Unavailable

5

PIPE, CLUTCH (NOT AVAILABLE)

22900-MZ1-000

Unavailable

6

SWITCH ASSY., CLUTCH

35330-MB0-003

$17.46

7

BOOT

45504-410-003

$11.68

8

PROTECTOR

45512-MA6-006

$4.26

9

CAP, MASTER CYLINDER (NISSIN) This part replaces 45513-MM5-006.

45513-MM5-016

$21.50

9

CAP, MASTER CYLINDER (NISSIN)

45513-MM5-016

$21.50

10

HOLDER, MASTER CYLINDER

45517-166-006

Unavailable

11

PLATE, STOPPER

45518-MB0-006

$1.88

12

PLATE, DIAPHRAGM

45518-MM5-006

$10.23

13

DIAPHRAGM

45520-MM5-006

$14.50

14

LEVER, L. HANDLE

53178-MM5-006

$22.08

15

BOLT, HANDLE LEVER PIVOT

90114-MA5-671

$9.05

16

BOLT, OIL (10X22) This part replaces 90145-MS9-611.

90145-MS9-612

$7.29

16

BOLT, OIL (10X22) (SAGA)

90145-MS9-612

$7.29

17

NUT, CAP (6MM)

90201-415-000

$2.08

18

WASHER, OIL BOLT

90545-300-000

$6.06

19

CIRCLIP (INNER) (18MM)

90651-377-003

$1.88

20

SCREW, FLAT (4X12)

93600-04012-0G

$0.94

20

SCREW, FLAT (4X12) This part replaces 93600-04012-1G.

93600-04012-0G

$0.94

21

SCREW-WASHER (4X12)

93893-04012-07

$1.38

21

SCREW-WASHER (4X12) This part replaces 93893-04012-17.

93893-04012-07

$1.38

22

BOLT, FLANGE (6X22)

96001-06022-07

$1.78
