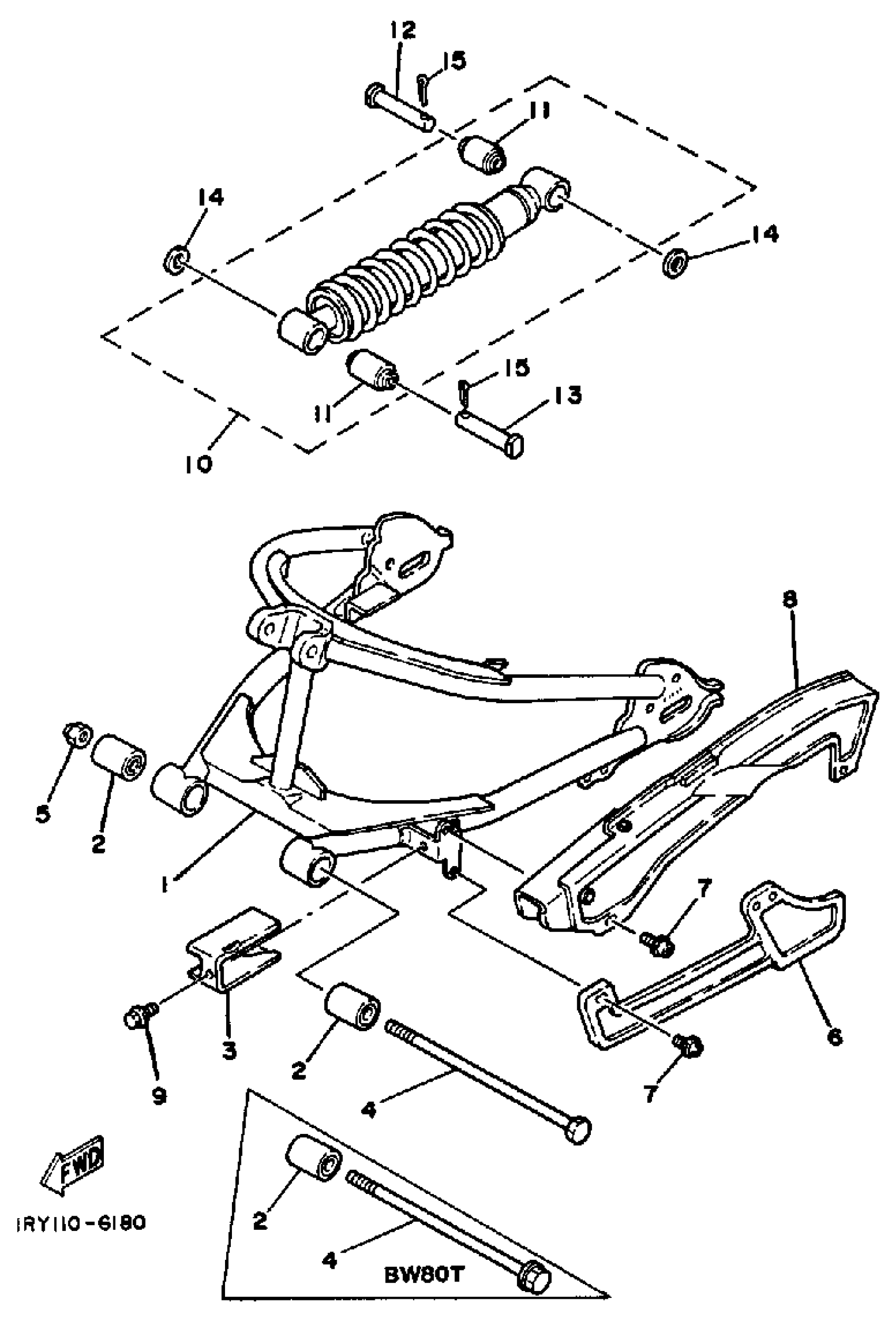

Yamaha BW80S (BIG WHEEL) 1986 SWING ARM REAR SHOCKS Diagram

#

Description
Price

1

REAR ARM

1RY-22110-00-FH

Unavailable

1

REAR ARM

(1RY-22110-00-G8)

Unavailable

2

BUSHING,REAR ARM

307-22123-00-00

$20.99

2

BUSH 1

5F6-22123-00-00

Unavailable

3

SEAL, GUARD

1RY-22151-00-00

Unavailable

4

SHAFT, PIVOT

2M4-22141-00-00

Unavailable

4

BOLT, WASHER BASED (14A)

90105-12228-00

$19.99

5

NUT, U

95614-10100-00

$7.49

5

NUT, U (4PM)

95617-12100-00

$4.16

6

SUPPORT, CHAIN

21W-22199-00-00

Unavailable

7

SCREW, WITH WASHER(52W)

90159-05121-00

$4.15

8

CHAIN CASE ASSEMBLY

1RY-22310-00-00

Unavailable

9

BOLT, WITH WASHER(55K)

90119-06117-00

$4.29

10

SHK/ABS ASSEMBLY, REAR

(1RY-22210-00-6W)

Unavailable

10

SHK/ABS ASY,REAR

1RY-22210-01-6W

Unavailable

11

BUSHING

3M7-22216-00-00

Unavailable

12

PIN, CLEVIS (3R0)

90240-10072-00

Unavailable

13

PIN, CLEVIS (3R0)

90240-10069-00

Unavailable

14

WASHER, PLATE(56J)

90201-106H5-00

Unavailable

14

WASHER, PLATE

92990-10600-00

Unavailable

15

PIN, COTTER

91490-25020-00

Unavailable
