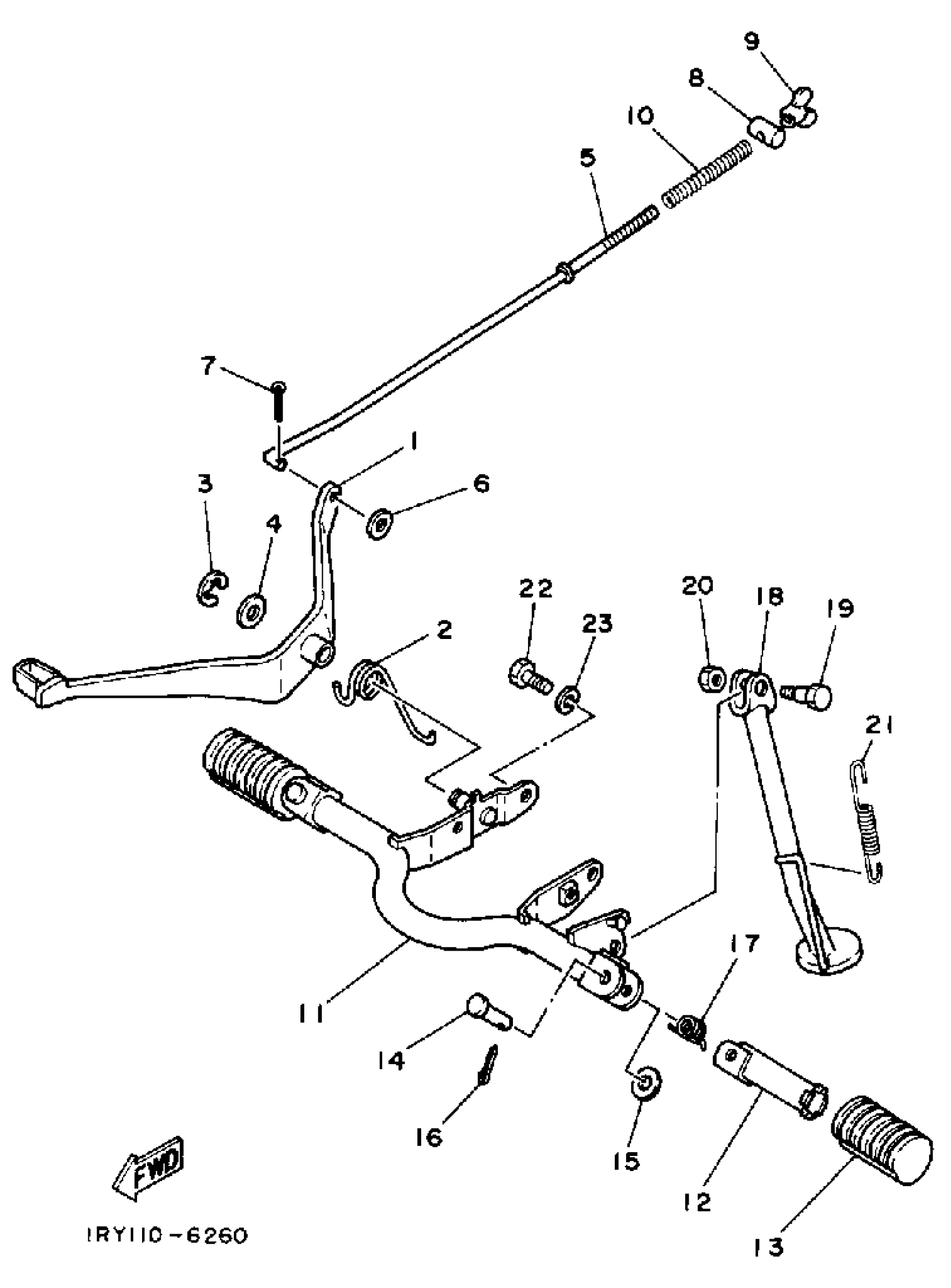

Yamaha BW80S (BIG WHEEL) 1986 STAND FOOTREST Diagram

#

Description
Price

1

PEDAL, BRAKE

1RY-27211-00-00

Unavailable

2

SPRING, TORSION

90508-29701-00

Unavailable

3

CIRCLIP(J51)

99080-09600-00

$1.78

4

WASHER, PLATE(663)

92990-12600-00

$6.35

5

ROD, BRAKE

1RY-27231-00-00

Unavailable

6

WASHER, PLATE (4H7)

90201-061A5-00

$5.59

6

WASHER, PLAIN (646)

92990-06600-00

$2.43

7

PIN, COTTER

91490-20025-00

$1.49

8

PIN 1562723700

90249-12008-00

$6.08

9

NUT (25K)

90179-06411-00

$5.27

10

SPRING, (180-27236-00)

90501-10245-00

$5.87

11

FOOTREST 1

1RY-27411-00-33

Unavailable

12

FOOT REST

214-27421-00-00

$30.37

13

COVER, FOOT REST

214-27413-00-00

$18.65

14

PIN, CLEVIS (2A6)

91701-08038-00

$3.62

15

.. WASHER, PLATE

92990-08600-00

$2.18

16

PIN, COTTER

91490-25020-00

Unavailable

17

SPRING, TORSION (214-27426-00)

90508-20023-00

Unavailable

18

STAND, SIDE

1RY-27311-00-33

Unavailable

19

BOLT 1092537300

90109-08063-00

Unavailable

20

. NUT

95380-08700-00

$2.89

21

SPRING, TENSION (1L9)

90506-26270-00

Unavailable

22

BOLT, HEXAGON

97013-08020-00

Unavailable

23

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable
