1986 Yamaha BIG Wheel (BW80S) Shift CAM Fork Diagram

← All diagrams

Find the part on the Shift CAM Fork diagram for your 1986 Yamaha BIG Wheel (BW80S), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

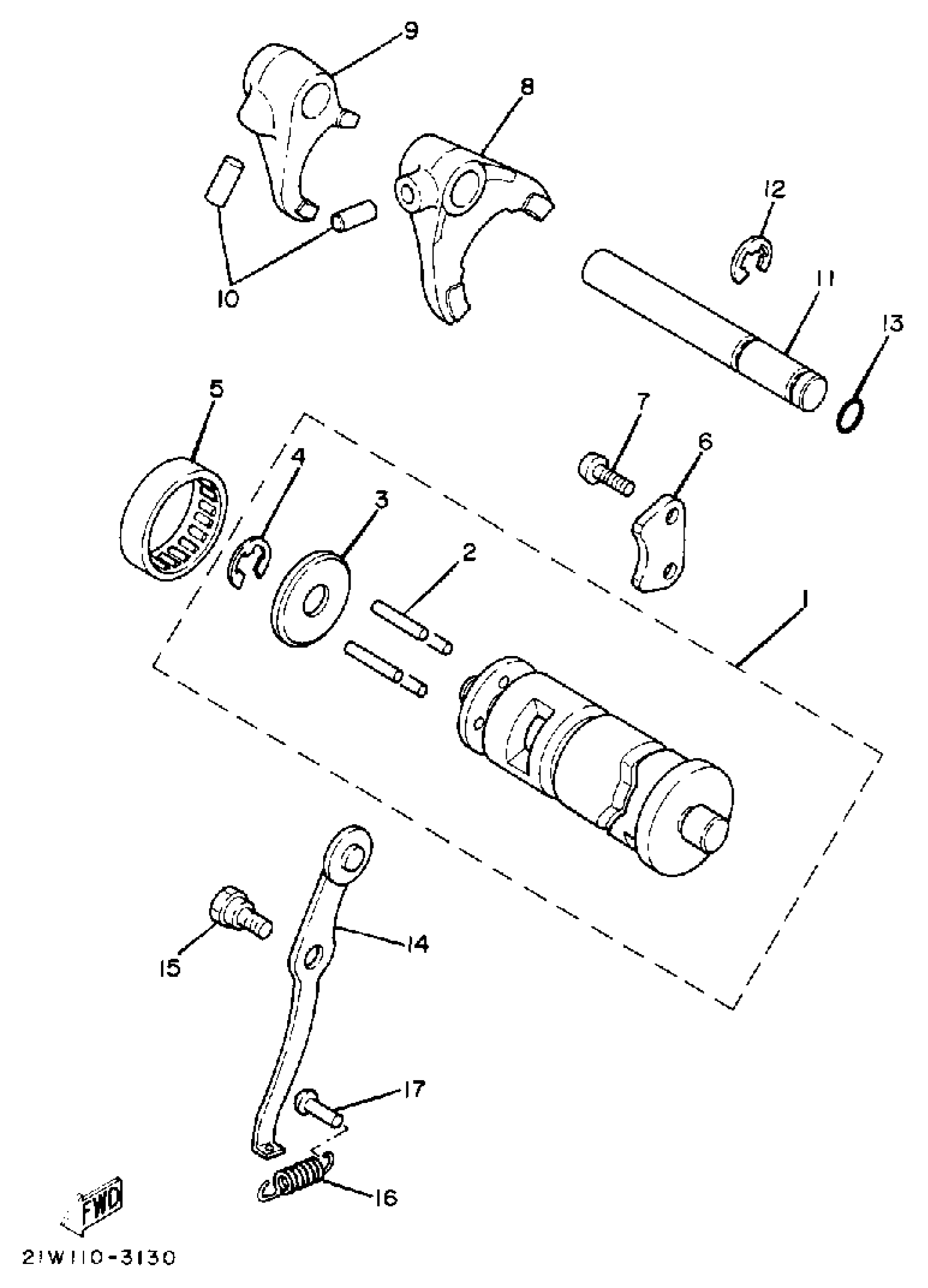

1986 Yamaha BIG Wheel (BW80S) Shift CAM Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SHIFT CAM ASSY

21W-18540-01-00

—
Out of stock

2

PIN,DOWEL (620)

93604-22050-00

1

$6.68

In stock

3

PLATE, SIDE

296-18561-00-00

1

$5.38

In stock

4

CIRCLIP(J51)

99080-09600-00

1

$1.88

In stock

5

BRG,CYL-CAL ROLLER 18G KY

93315-23208-00

1

$29.23

In stock

6

PLATE, STOPPER

296-18562-01-00

1
Out of stock

7

SCREW, PAN

98507-06014-00

1

$6.18

In stock

8

FORK, SHIFT 1

58H-18511-00-00

1
Out of stock

9

FORK, SHIFT 2

58H-18512-00-00

1
Out of stock

10

PIN,DOWEL(296)

93606-14081-00

1
Out of stock

11

BAR SHIFT FORK GUIDE

2N8-18531-00-00

—
Out of stock

12

CIRCLIP

99006-10600-00

1

$6.91

In stock

13

O-RING

93210-08003-00

1

$6.86

In stock

14

STOPPER LEVER ASSY

296-18140-03-00

—
Out of stock

15

BOLT

90109-06239-00

1

$5.77

In stock

16

SPRING, TENSION

90506-10006-00

—
Out of stock

17

HOOK, SPRING

132-16346-00-00

—
Out of stock
