1986 Yamaha BIG Wheel (BW80S) Front Fork Diagram

← All diagrams

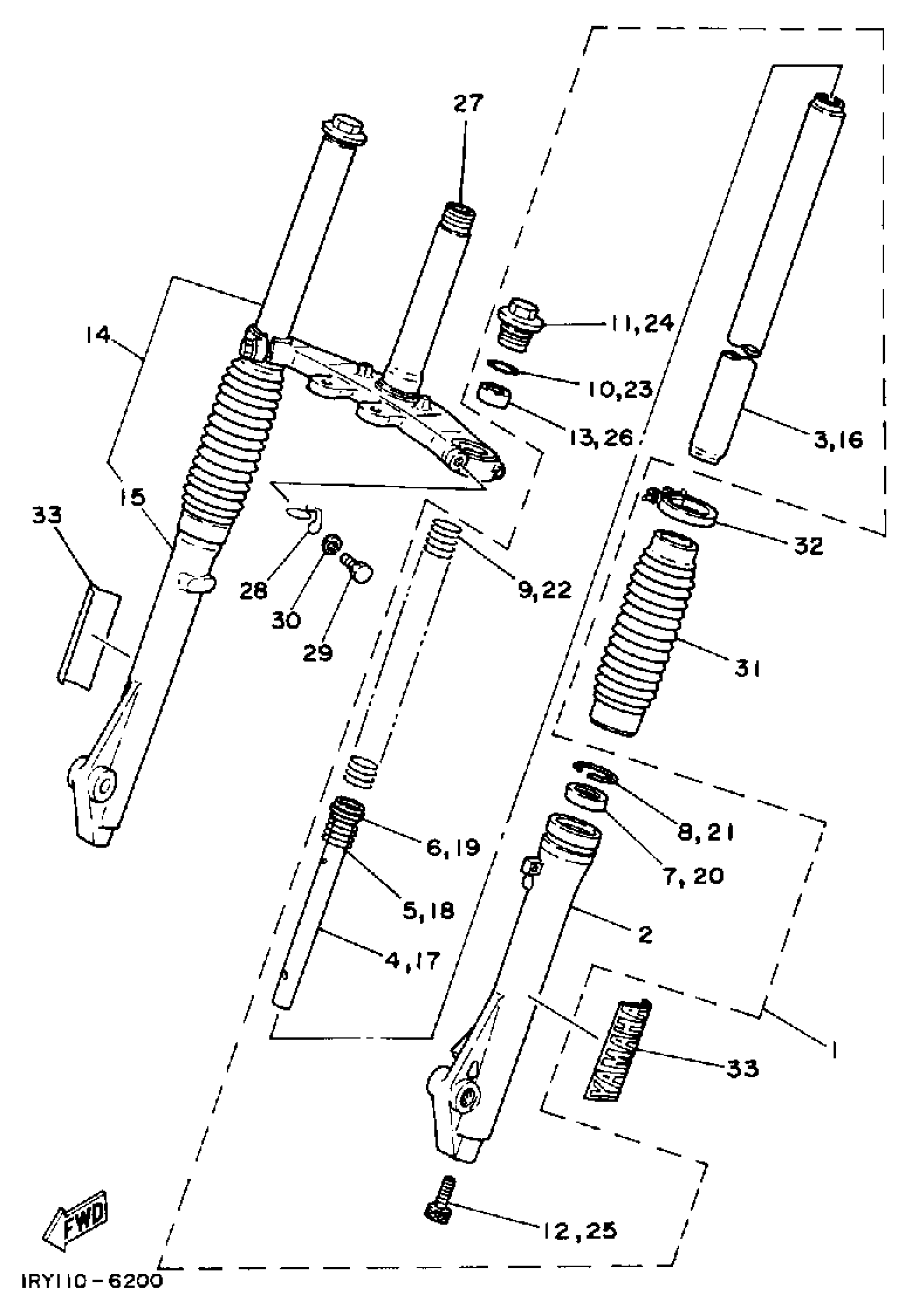

Find the part on the Front Fork diagram for your 1986 Yamaha BIG Wheel (BW80S), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Yamaha BIG Wheel (BW80S) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRT.FORK ASSEMBLY. L.H.

1RY-W2313-00-FH

1
Out of stock

1

FRT.FORK ASSEMBLY. L.H.

1RY-W2313-00-FH

1
Out of stock

1

FRT.FORK ASSEMBLY L.H.

(1RY-W2313-00-G8)

1
Out of stock

2

. TUBE, OUTER 1

1RY-23126-00-FH

1
Out of stock

2

. TUBE, OUTER 1

1RY-23126-00-G8

1
Out of stock

3

. INNER TUBE 1

1RY-23110-00-00

1
Out of stock

4

CYLINDER COMP., FRONT FORK

3R0-23170-00-00

—
Out of stock

5

SPRING, REBOUND

2J5-23151-00-00

1
Out of stock

6

RING, PISTON

2J5-23157-00-00

1
Out of stock

7

OIL SEAL

1RY-23145-00-00

1
Out of stock

8

CLIP, OIL SEAL

3M7-23156-00-00

1
Out of stock

9

. SPRING, FRONT FORK

1RY-23141-00-00

1
Out of stock

10

O-RING(36Y)

93210-17570-00

1

$5.86

In stock

11

BOLT, CAP

3M7-23111-01-00

—
Out of stock

12

BOLT

3M7-23181-00-00

1

$7.75

In stock

13

BOLT, INNER TUBE

3M7-23142-00-00

—
Out of stock

14

FRT.FORK ASSEMBLY R.H.

1RY-W2314-00-FH

1
Out of stock

14

FRT.FORK ASSEMBLY R.H.

1RY-W2314-00-FH

1
Out of stock

14

FRT.FORK ASSEMBLY R.H.

(1RY-W2314-00-G8)

1
Out of stock

15

. TUBE, OUTER 2

1RY-23136-00-FH

1
Out of stock

15

TUBE, OUTER 2

(1RY-23136-00-G8)

1
Out of stock

16

. INNER TUBE 1

1RY-23110-00-00

1
Out of stock

17

CYLINDER COMP., FRONT FORK

3R0-23170-00-00

—
Out of stock

18

SPRING, REBOUND

2J5-23151-00-00

1
Out of stock

19

RING, PISTON

2J5-23157-00-00

1
Out of stock

20

OIL SEAL

1RY-23145-00-00

1
Out of stock

21

CLIP, OIL SEAL

3M7-23156-00-00

1
Out of stock

22

. SPRING, FRONT FORK

1RY-23141-00-00

1
Out of stock

23

O-RING(36Y)

93210-17570-00

1

$5.86

In stock

24

BOLT, CAP

3M7-23111-01-00

—
Out of stock

25

BOLT

3M7-23181-00-00

1

$7.75

In stock

26

BOLT, INNER TUBE

3M7-23142-00-00

—
Out of stock

27

UNDER BRACKET

1RY-23340-00-00

1
Out of stock

28

HOLDER, CABLE 1

(1RY-23318-00-00)

1
Out of stock

29

BOLT

451-23346-01-00

—

$10.43

In stock

30

YBS67-10 WASHER, SPRING

92990-10100-00

—

$2.43

In stock

31

BOOT, FRONT FORK

1RY-23191-00-00

1
Out of stock

32

BAND

(1RY-23192-00-00)

1
Out of stock

33

EMBLEM 4

1RY-21784-00-00

1
Out of stock

33

EMBLEM 4

(1RY-21784-10-00)

1
Out of stock
