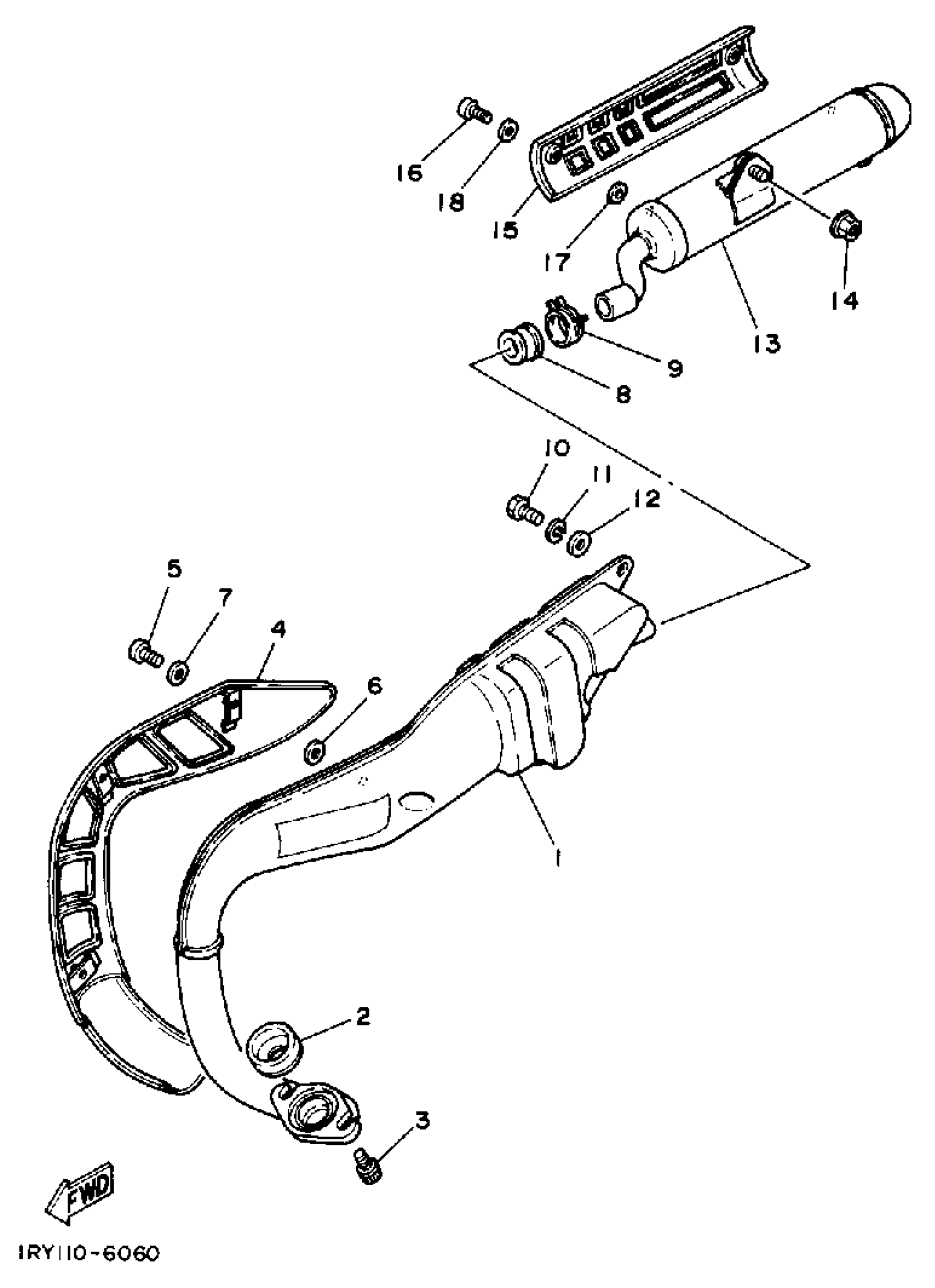

Yamaha BW80S (BIG WHEEL) 1986 EXHAUST Diagram

#

Description
Price

1

EXHAUST PIPE ASSY 1

21W-14610-02-00

Unavailable

2

GASKET, EXHAUST PIPE

3RV-14623-00-00

$17.39

3

BOLT

90109-08629-00

Unavailable

4

PROTECTOR ASSY

21W-14708-00-00

$106.67

5

SCREW, PAN HEAD(3AH)

98507-05006-00

$2.57

7

WASHER, PROTECTOR

3RV-14766-00-00

$5.48

8

GASKET, MUFFLER

4X4-14714-00-00

$4.49

9

CLIP (4X4)

90467-22048-00

$5.87

10

BOLT, HEXAGON

97013-08016-00

$1.49

10

BOLT(JA9)

90101-08691-00

$5.13

11

YBS67-8 WASHER, SPRING

92990-08100-00

$4.32

12

.. WASHER, PLATE

92990-08600-00

$2.18

13

SILENCER, EXHAUST

1RY-14753-00-00

Unavailable

14

NUT, FLANGE(JN5)

95707-08500-00

$1.49

15

PROTECTOR, SILENCER

21W-14758-00-00

$43.99

16

SCREW, PAN HEAD(3AH)

98507-05006-00

$2.57

17

WASHER, PLATE(4DN)

90202-04214-00

Unavailable

18

WASHER, PROTECTOR

3RV-14766-00-00

$5.48

76

WASHER, PLATE(4DN)

90202-04214-00

Unavailable
