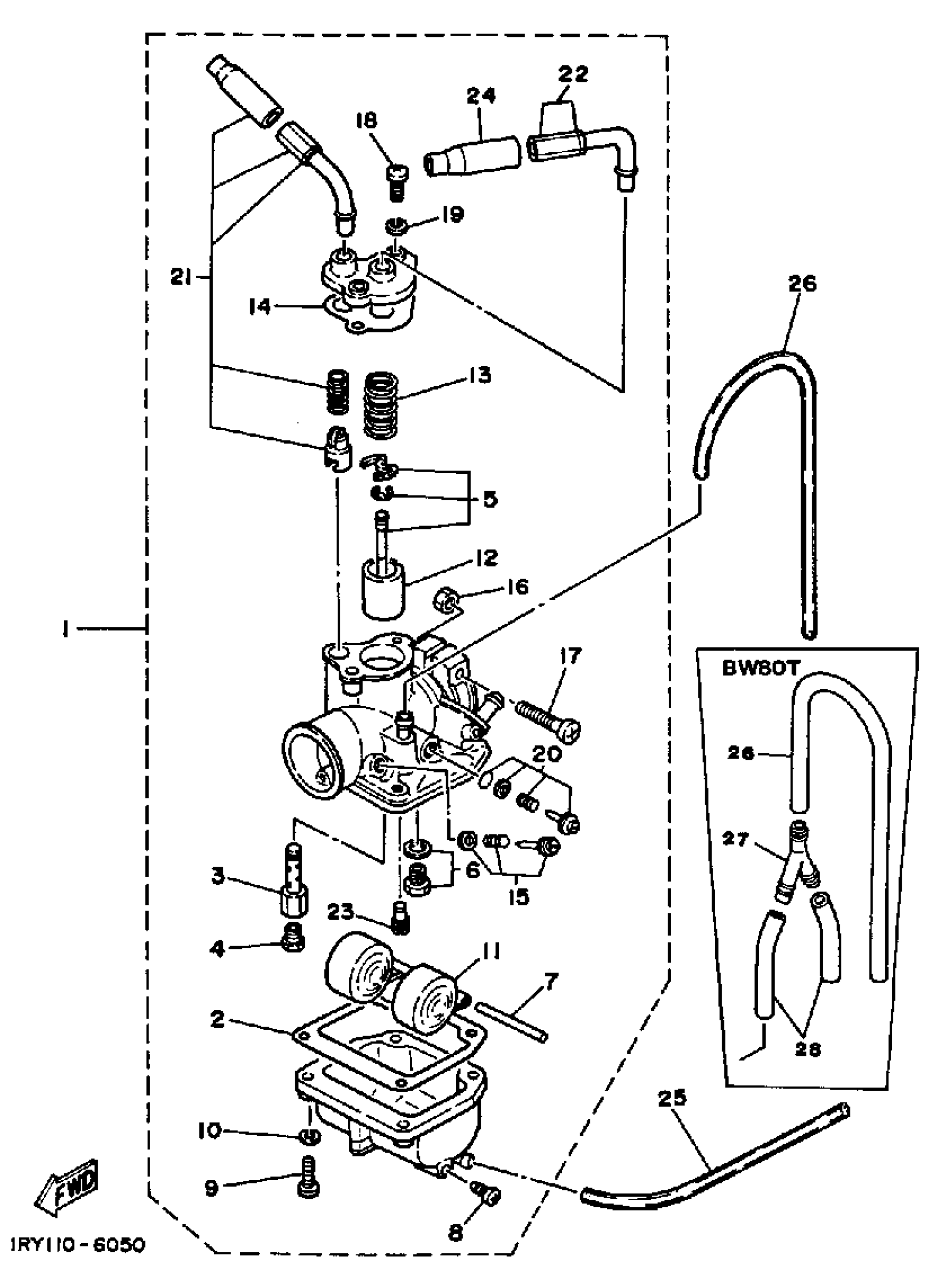

Yamaha BW80S (BIG WHEEL) 1986 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY 1

1RY-14101-02-00

Unavailable

2

GASKET, FLOAT CHAMBER

296-14184-01-00

$9.99

3

. NOZZLE, MAIN

1AJ-14141-78-00

Unavailable

4

JET, MAIN (#87.5)

(18A-14143-68-00)

Unavailable

4

. JET, MAIN (825)

18A-1414A-67-00

Unavailable

5

. NEEDLE, SET

18E-1490J-00-00

Unavailable

6

NEEDLE VALVE SET

21W-14107-12-00

Unavailable

7

PIN, FLOAT

127-14186-00-00

$6.65

8

PLUG, DRAIN

12R-14191-00-00

$16.49

9

SCREW, PAN HEAD

98507-04018-00

$2.19

10

WASHER, PLAIN (646)

92990-04600-00

$5.99

11

FLOAT

2E9-14185-00-00

$70.99

12

. VALVE, THROTTLE 1

45V-14112-30-00

Unavailable

13

SPRING, THROTTLE VALVE

296-14131-00-00

Unavailable

14

GASKET, MIXING CHAMBER

296-14198-01-00

$14.49

15

AIR SCREW SET

59L-14104-00-00

Unavailable

16

NUT, HEXAGON (663)

95380-05600-00

Unavailable

17

SCREW, PAN HEAD

98517-05030-00

Unavailable

18

SCREW, PAN HEAD (E56)

98580-04010-00

Unavailable

19

WASHER, PLAIN (646)

92990-04600-00

$5.99

20

THROTTLE SCREW SET

18A-14103-00-00

Unavailable

21

. STARTER SET

1RY-1410A-00-00

Unavailable

22

CABLE ADJUST SCREW SET

17L-14106-00-00

Unavailable

23

JET, PILOT (# 20)

193-14142-20-00

Unavailable

24

CAP

1R0-14169-00-00

Unavailable

25

HOSE (L200)

90445-05N13-00

Unavailable

26

HOSE (L200)

90445-07176-00

Unavailable

26

HOSE (L1050)

90445-072G8-00

Unavailable

27

WAY 3 (45V)

90413-05015-00

Unavailable

28

HOSE (L45)

90445-070A7-00

Unavailable
