1990 Yamaha Big Wheel (BW80A) Stand - Footrest Diagram

← All diagrams

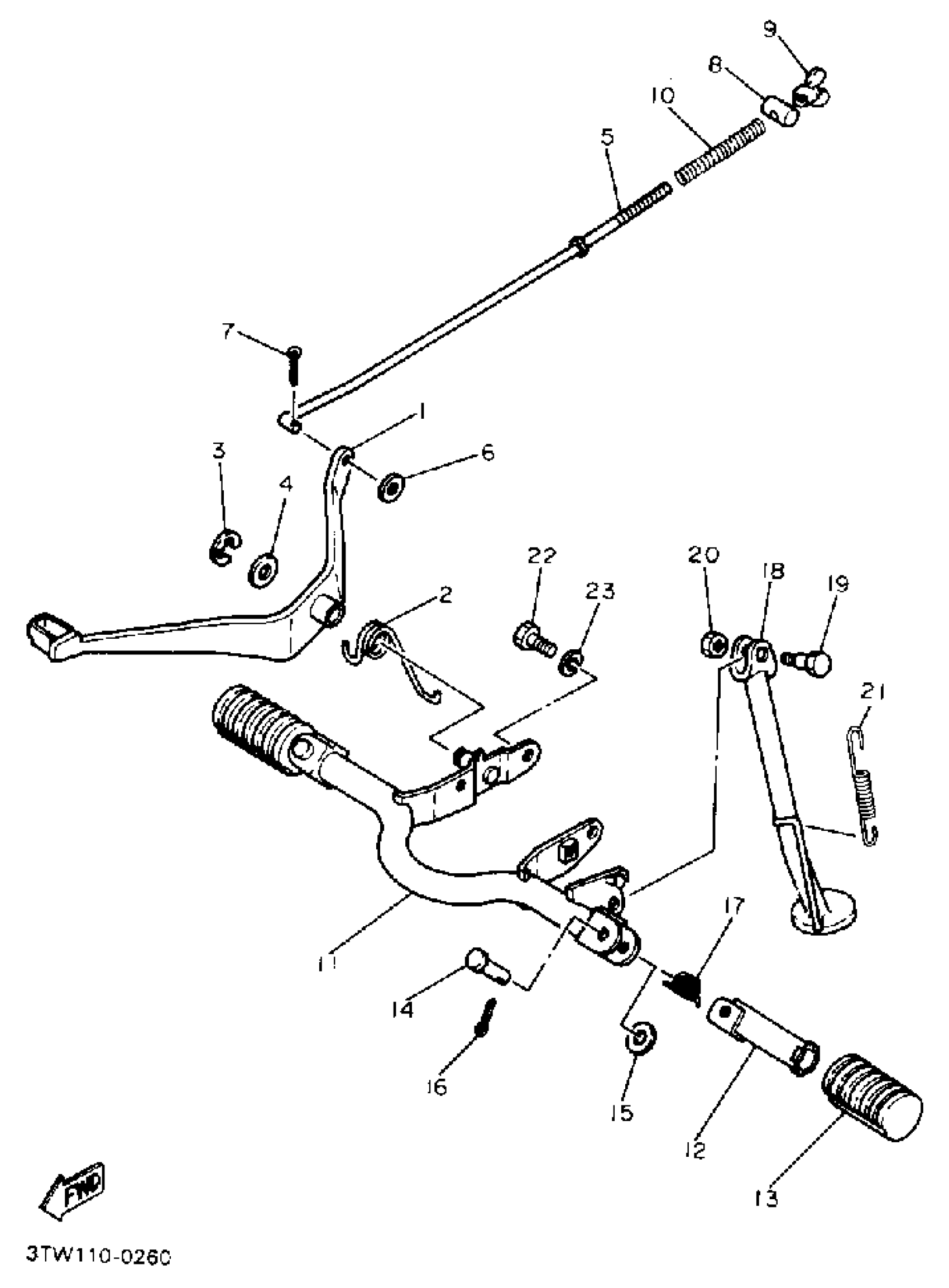

Find the part on the Stand - Footrest diagram for your 1990 Yamaha Big Wheel (BW80A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1990 Yamaha Big Wheel (BW80A) Stand - Footrest Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PEDAL, BRAKE

1RY-27211-00-00

1
Out of stock

2

SPRING, TORSION

90508-29701-00

1
Out of stock

3

CIRCLIP(J51)

99080-09600-00

1
Out of stock

4

WASHER, PLATE(663)

92990-12600-00

1
Out of stock

5

ROD, BRAKE

1RY-27231-00-00

1
Out of stock

6

WASHER, PLAIN (646)

92990-06600-00

1
Out of stock

7

PIN, COTTER

91490-20025-00

1
Out of stock

8

PIN 1562723700

90249-12008-00

1
Out of stock

9

NUT (25K)

90179-06411-00

1
Out of stock

10

SPRING, (180-27236-00)

90501-10245-00

1
Out of stock

11

FOOTREST 1

1RY-27411-00-33

1
Out of stock

12

FOOT REST

214-27421-00-00

1
Out of stock

13

COVER, FOOT REST

214-27413-00-00

1
Out of stock

14

PIN, CLEVIS (2A6)

91701-08038-00

1
Out of stock

15

.. WASHER, PLATE

92990-08600-00

1
Out of stock

16

PIN, COTTER

91490-25020-00

—
Out of stock

17

SPRING, TORSION (214-27426-00)

90508-20023-00

—
Out of stock

18

STAND, SIDE

1RY-27311-00-33

1
Out of stock

19

BOLT 1092537300

90109-08063-00

—
Out of stock

20

. NUT

95380-08700-00

1
Out of stock

21

SPRING, TENSION (1L9)

90506-26270-00

—
Out of stock

22

BOLT, HEXAGON

97013-08020-00

—
Out of stock

23

YBS67-8 WASHER, SPRING

92990-08100-00

—
Out of stock
