Partiron

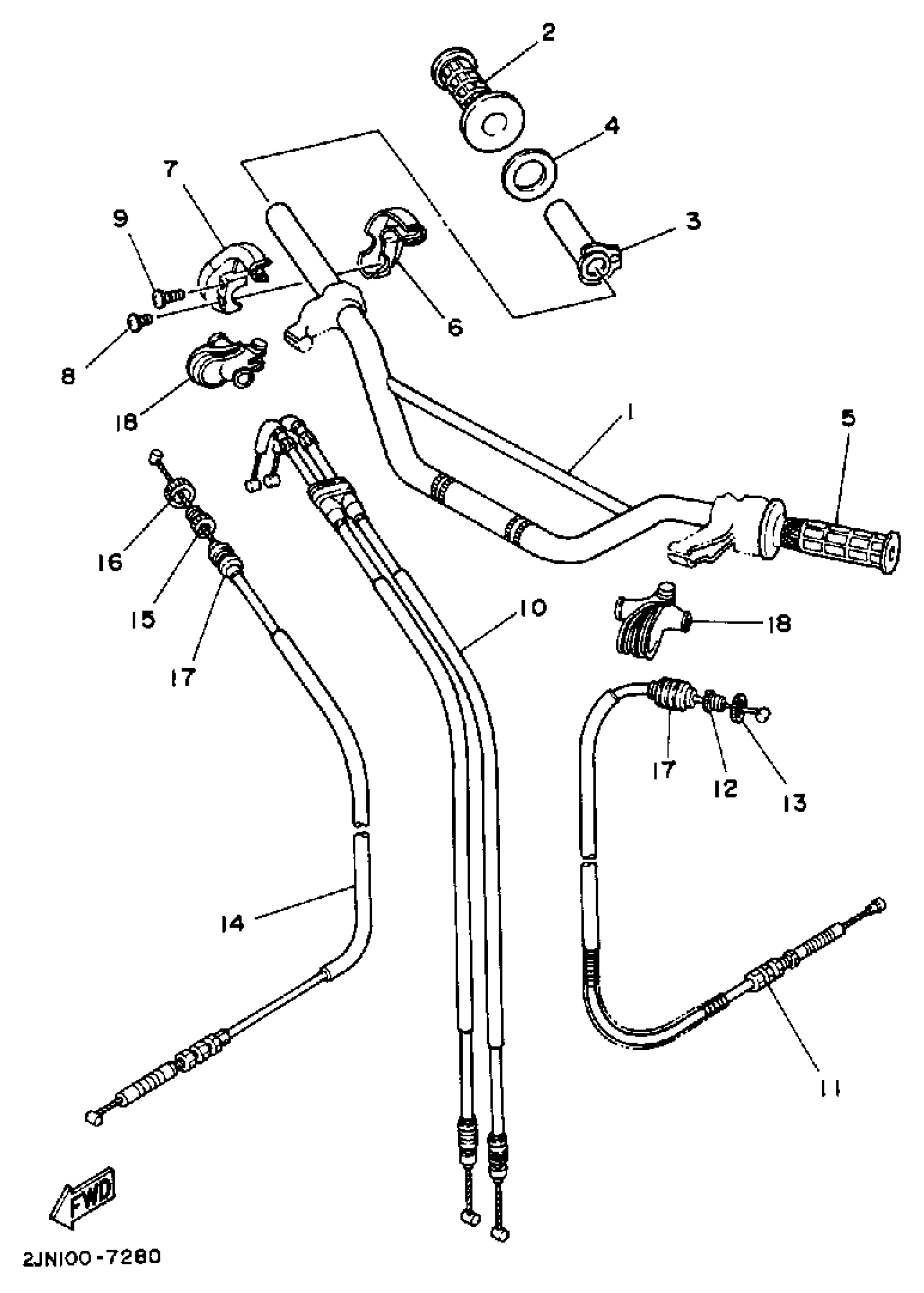

Yamaha BW350U (BIG WHEEL) 1988 HANDLEBAR CABLE Diagram

#

Description
Price

1

HANDLEBAR

1LN-26111-00-00

Unavailable

2

GRIP (R.H)

1LX-26242-01-00

$28.57

3

TUBE, THROTTLE GUIDE

1RF-26243-00-00

$21.89

4

RING, LEAF

3Y1-26249-00-00

$7.96

5

GRIP (L.H)

1LX-26241-01-00

$27.16

6

CAP, GRIP UPPER

34K-26281-00-00

Unavailable

7

CAP, GRIP LOWER

1VJ-26282-00-00

Unavailable

8

SCREW, PAN HEAD

98517-05020-00

$1.26

9

SCREW, PAN HEAD(4MY)

98507-05025-00

$5.76

10

THROTTLE CABLE ASSEMBLY

1VJ-26302-00-00

Unavailable

11

CABLE, CLUTCH

1UY-26335-00-00

$30.41

12

BOLT

90123-08002-00

$8.57

13

NUT

90179-08030-00

$3.63

14

CABLE, BRAKE

3Y1-26341-00-00

Unavailable

15

BOLT

90123-08002-00

$8.57

16

NUT

90179-08030-00

$3.63

17

BOOT, WIRE

1E6-26342-00-00

Unavailable

18

COVER, LEVER

1E6-26372-00-00

Unavailable
