Description

Price

1

BRG,CYL-CAL ROLLER 131G KY

93332-00008-00

$67.99

2

RACE, BALL 1

BP2-23411-00-00

$11.49

3

RACE, BALL 2

BP2-23412-00-00

$7.49

4

BALL

93503-16003-00

$2.72

5

COVER BALL RACE

10V-23416-01-00

Unavailable

6

NUT

90179-25004-00

$24.99

7

CROWN, HANDLE

54G-23435-00-98

Unavailable

8

BOLT (2A2)

90105-14102-00

$5.60

9

BOLT, FLANGE

95814-08040-00

$4.72

10

GUIDE, CABLE

54G-23389-00-00

Unavailable

11

HOLDER, HANDLE UPPER

1E6-23441-00-00

$27.99

12

BOLT, FLANGE

95817-08035-00

$9.49

13

STAY, HEADLIGHT

1RL-23174-00-00

Unavailable

14

BOLT, FLANGE(8AB)

95817-08020-00

$9.49

15

HOLDER, CABLE 2

3Y1-23319-00-00

$4.78

16

BOLT, HEXAGON

97017-06012-00

Unavailable

17

WASHER, SPRING

92907-06100-00

Unavailable

18

EMBLEM

1LR-23108-00-00

Unavailable

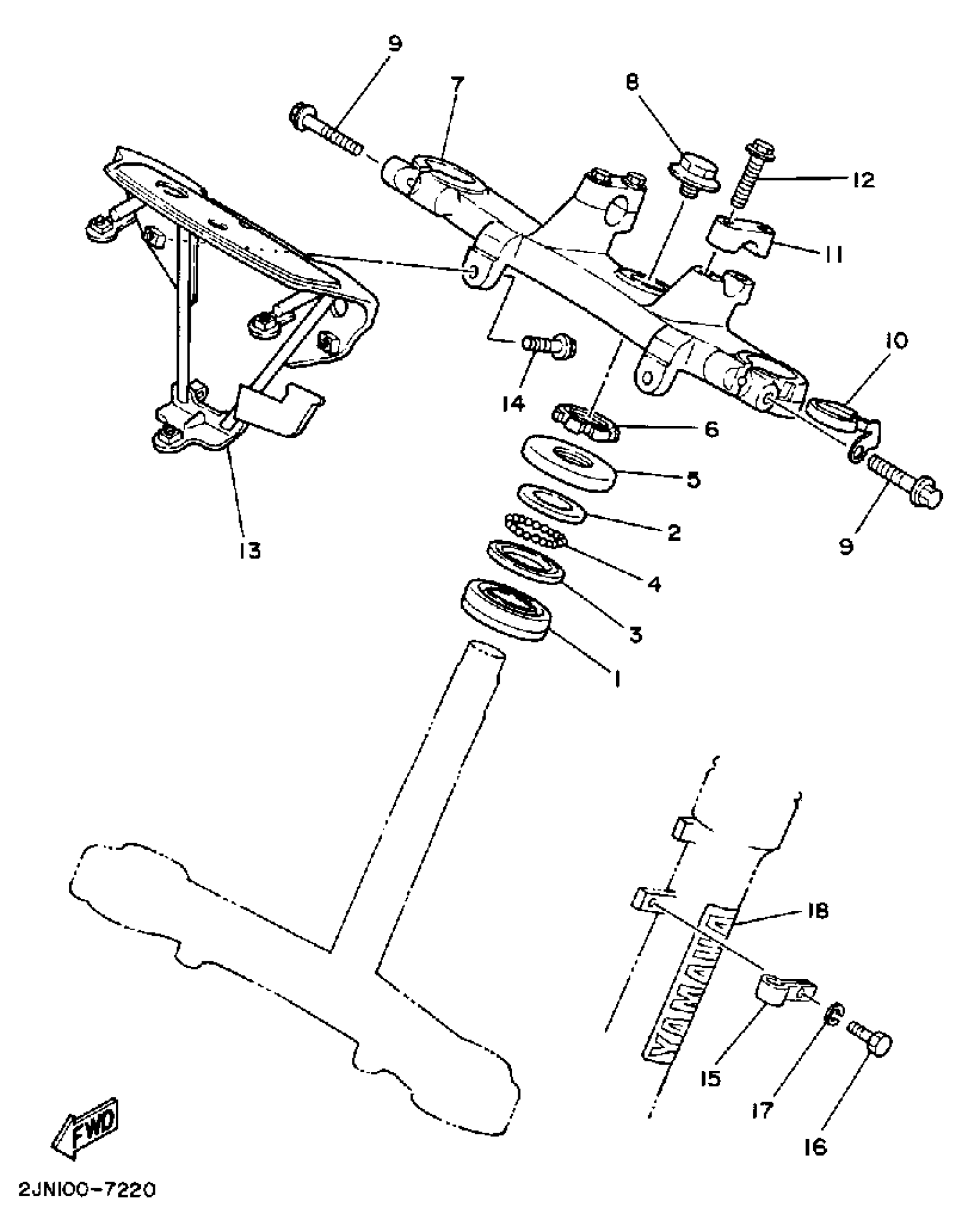

Yamaha BW350T (BIG WHEEL) 1987 STEERING Diagram

BRG,CYL-CAL ROLLER 131G KY

RACE, BALL 1

RACE, BALL 2

BALL

COVER BALL RACE

NUT

CROWN, HANDLE

BOLT (2A2)

BOLT, FLANGE

GUIDE, CABLE

HOLDER, HANDLE UPPER

BOLT, FLANGE

STAY, HEADLIGHT

BOLT, FLANGE(8AB)

HOLDER, CABLE 2

BOLT, HEXAGON

WASHER, SPRING

EMBLEM
