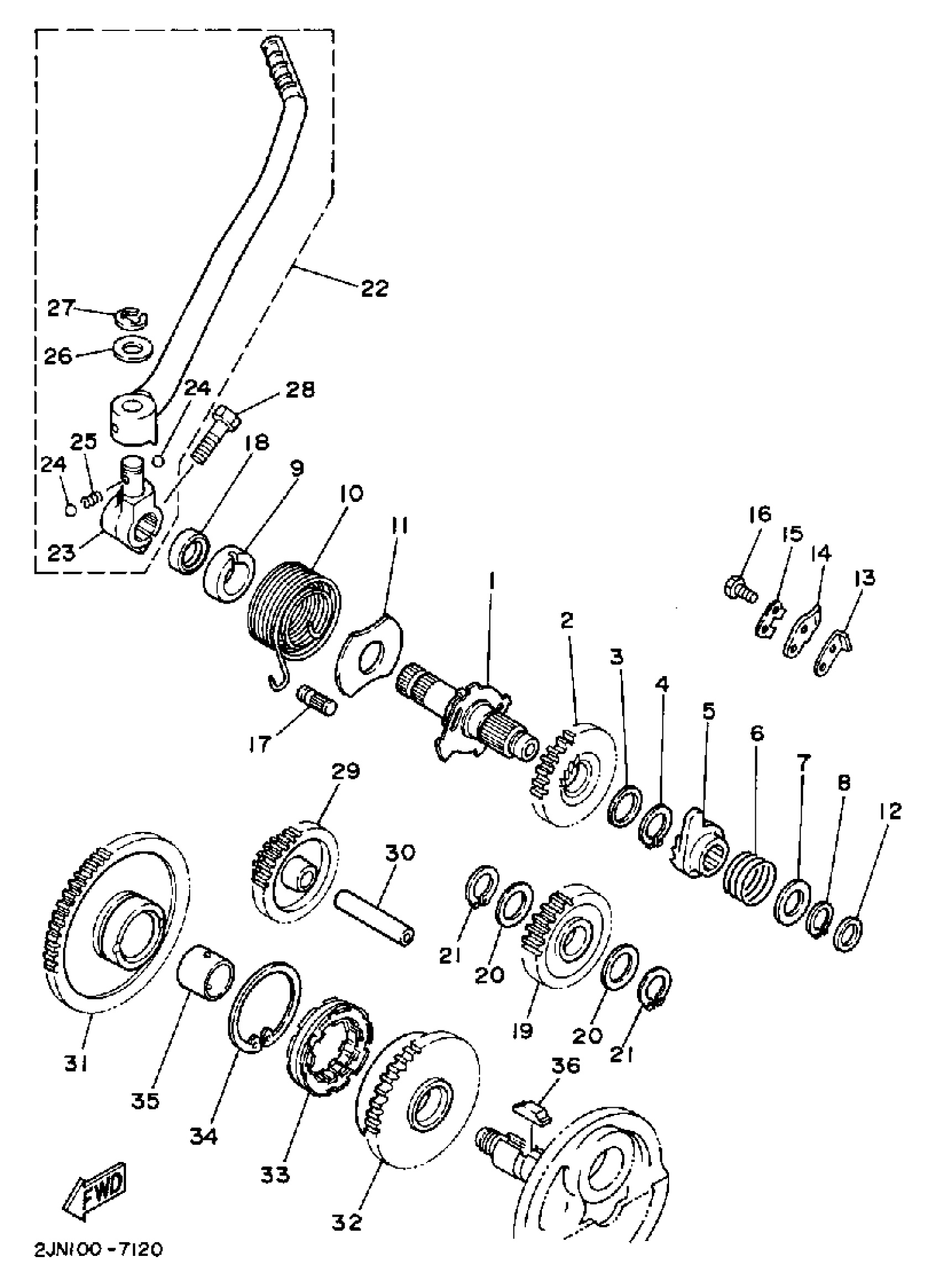

Yamaha BW350T (BIG WHEEL) 1987 STARTER Diagram
#
Description
Price
2
GEAR, KICK
1RG-15641-00-00
Unavailable
5
WHEEL, RATCHET
3Y1-15671-00-00
Unavailable
6
SPRING COMPRESSION168156750000
90501-16107-00
Unavailable
7
WASHER, PLAIN (1JL)
90201-155K6-00
Unavailable
9
GUIDE, SPRING
3Y6-15664-00-00
Unavailable
16
BOLT, HEXAGON DEEP RECESS
97D95-06016-00
Unavailable
17
STOPPER, KICK SPRING
248-15668-00-00
Unavailable
18
OIL SEAL (20X30X7-371)
93102-20108-00
Unavailable
19
GEAR, KICK IDLE
(2JN-15651-00-00)
Unavailable
20
WASHER PLATE 328171160000
90201-20276-00
Unavailable
21
CIRCLIP(1AR)
99009-20400-00
Unavailable
22
KICK CRANK ASSEMBLY
3Y1-15620-01-00
Unavailable
23
. BOSS, KICK CRANK
3Y1-15621-01-00
Unavailable
24
BALL (12R)
93507-32031-00
Unavailable
25
. SPRING, COMPRESSION
90501-10589-00
Unavailable
26
WASHER (3XVC)
90201-153A1-00
Unavailable
27
CIRCLIP
99006-10600-00
Unavailable
28
BOLT, HEXAGON
97013-08030-00
Unavailable
29
GEAR, IDLER 1
(2JN-15512-00-00)
Unavailable
30
GEAR, IDLER 2
51Y-15517-00-00
Unavailable
31
GEAR, IDLER 2
2JN-15517-00-00
Unavailable
32
GEAR, DRIVE
(2JN-11536-00-00)
Unavailable
33
STR CHN GUIDE ASSEMBLY
2JN-15590-00-00
Unavailable
34
CIRCLIP(MF1)
99009-62500-00
Unavailable
35
COLLAR (3Y6)
90387-252A2-00
Unavailable
36
PLUG (2JN)
90338-07201-00
Unavailable
