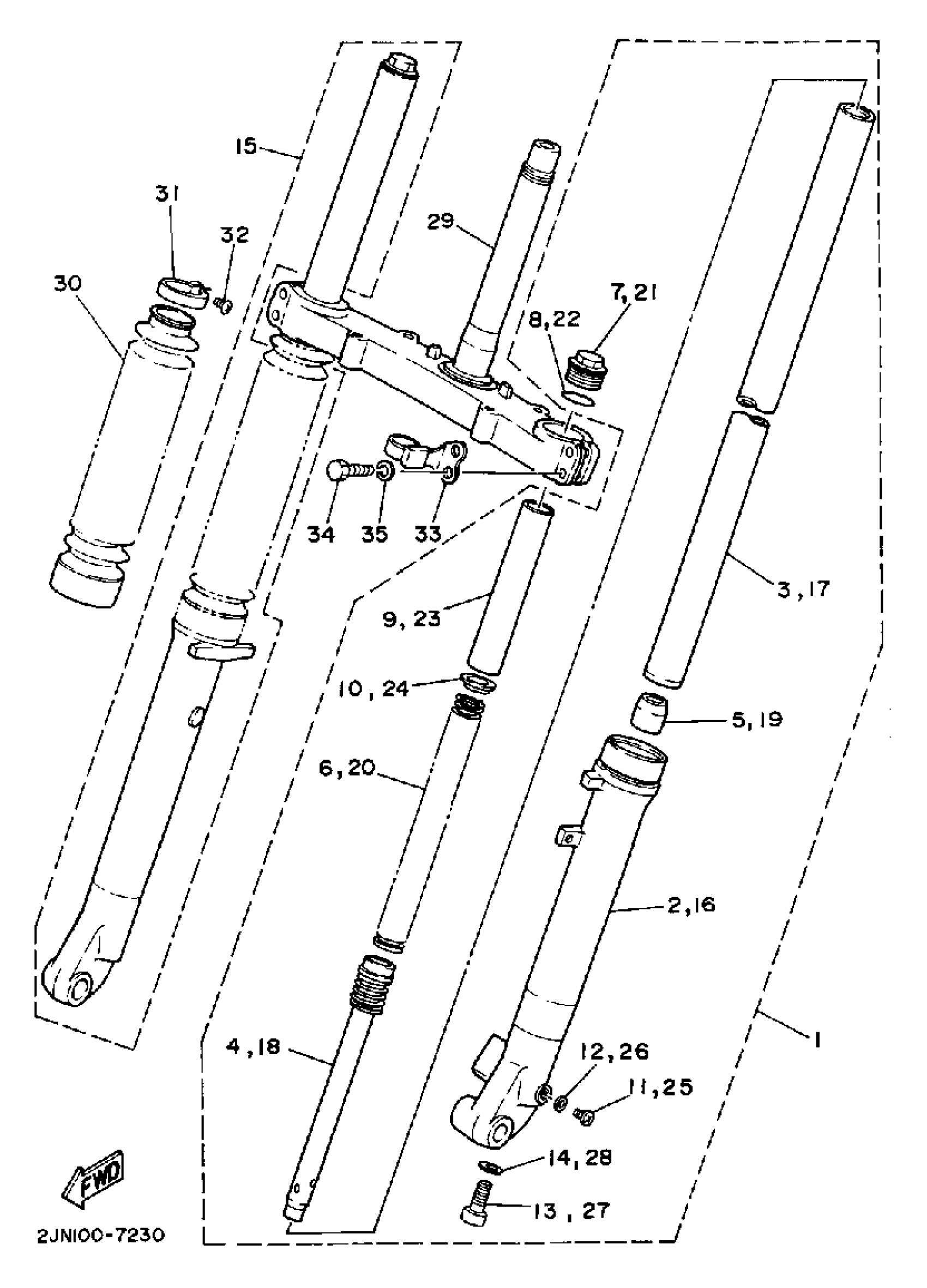

Yamaha BW350T (BIG WHEEL) 1987 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSEMBLY L

2JN-23102-00-00

Unavailable

2

TUBE, OUTER 1

(2JN-23126-00-35)

Unavailable

3

. INNER TUBE COMP 1

2JN-23110-00-00

Unavailable

4

. CYLINDER COMP, FRONT FORK

54G-23170-00-00

Unavailable

5

. SPINDLE, TAPER

39K-23173-00-00

Unavailable

6

. SPRING, FRONT FORK

2JN-23141-00-00

Unavailable

7

BOLT, CAP

2JN-23111-00-00

$43.99

8

O-RING

3J2-23114-00-00

$8.99

9

SPACER

5N8-23118-00-00

Unavailable

10

. SEAT, SPRING UPPER

583-23142-00-00

Unavailable

11

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

12

GASKET, DRAIN PLUG

122-23129-00-00

$7.99

13

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

$8.99

14

GASKET

509-23158-L0-00

$16.49

15

FRONT FORK ASSEMBLY R

(2JN-23103-00-00)

Unavailable

16

TUBE, OUTER 2

(2JN-23136-00-35)

Unavailable

17

. INNER TUBE COMP 1

2JN-23110-00-00

Unavailable

18

. CYLINDER COMP, FRONT FORK

54G-23170-00-00

Unavailable

19

. SPINDLE, TAPER

39K-23173-00-00

Unavailable

20

. SPRING, FRONT FORK

2JN-23141-00-00

Unavailable

21

BOLT, CAP

2JN-23111-00-00

$43.99

22

O-RING

3J2-23114-00-00

$8.99

23

SPACER

5N8-23118-00-00

Unavailable

24

. SEAT, SPRING UPPER

583-23142-00-00

Unavailable

25

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

26

GASKET, DRAIN PLUG

122-23129-00-00

$7.99

27

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

$8.99

28

GASKET

509-23158-L0-00

$16.49

29

UNDER BRACKET COMP

2JN-23340-00-98

Unavailable

30

BOOT

54G-23191-00-00

Unavailable

31

BAND, BOOT

2K5-23192-00-00

Unavailable

32

SCREW, BOOT BAND

1W4-23194-L0-00

Unavailable

33

GUIDE, WIRE

3R4-23389-00-00

Unavailable

34

BOLT

97013-08035-00

Unavailable

35

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable
